Telemecanique

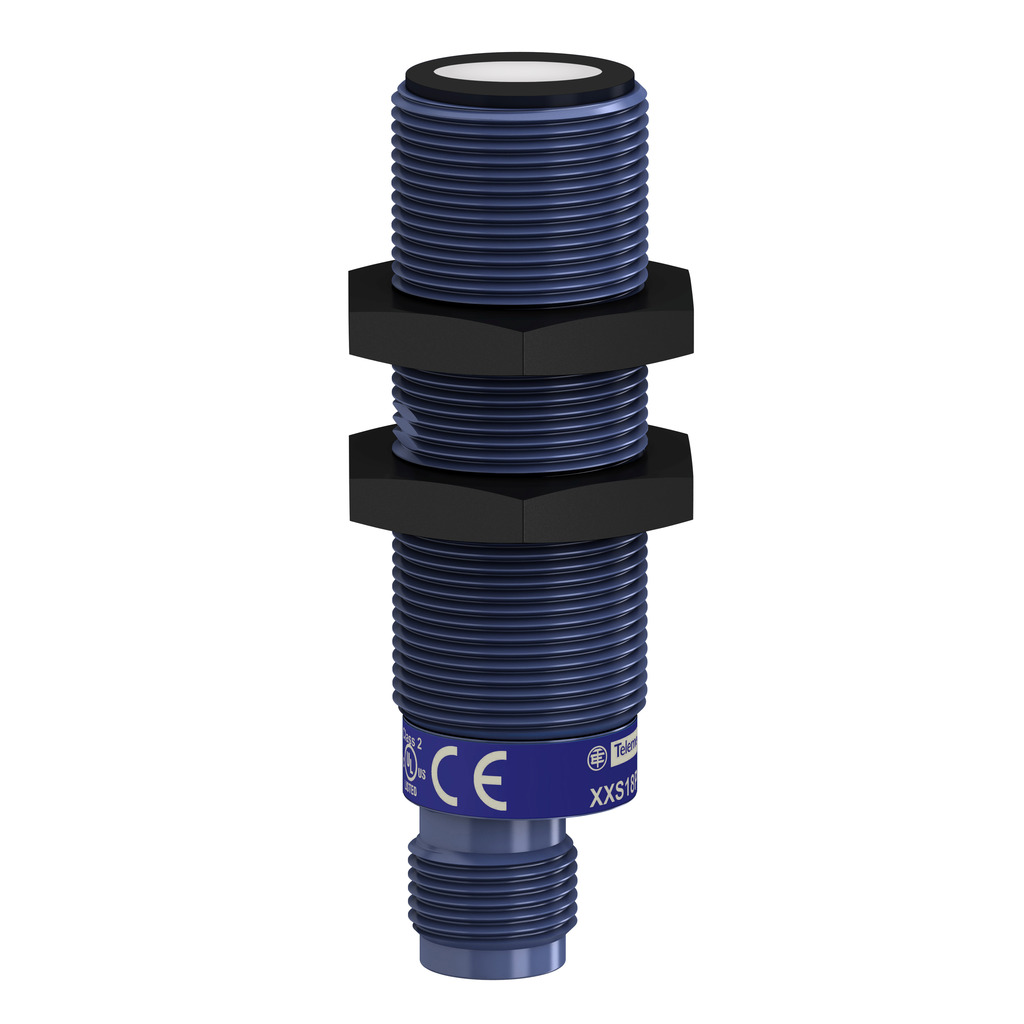

XXS18P1PM12 OsiSense XX Cylindrical Straight Sensor, Ultrasonic, PNP Output, 1NO-1NC Contact, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XXS18P1PM12
UPC:
785901058625
Item #:
826535

Availability

Location Available Qty
Available Available to Order
$472.23 each

XX Ultrasonic Sensors perform contactless, reliable, and high performance detection regardless of the targets shape, texture, color, or transparency. Capable of withstanding even the harshest industrial environments, XX Ultrasonic Sensors operate in diffuse, reflex, and thru beam modes. The integral connector and the available cabling and fixing accessories make these ultrasonic sensors extremely easy to install. This sensor is software configurable. The sensor has an adjustable sensing range of 4in (105mm) to 3.28ft (1m). The sensor accepts 12VDC to 24VDC and provides a programmable normally open or normally closed discrete PNP output with an output state and an echo state LED. The XX9 is a PBT plastic M18 with an M12 5-pin connector. It is compliant with CE, UL, cULus, and IEC standards and IP65 and IP67 rated. This product is certified by CE, CULus, EAC, E2, Ecolab and RCM. It meets CSA C22.2 No 14, EN/IEC 60947 5 2 and UL 508 standards. XX Ultrasonic Sensors operate in diffuse, reflex, and thru beam modes. This range of sensors even includes long distance detection models. The XX ultrasonic sensors perform contactless, reliable, and high performance detection regardless of the target's shape, texture, color, or transparency.

Manuals and Documentation
Catalog Number XXS18P1PM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Country of Origin France
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=461290051&lang=en-us
UPC 785901058625
GTIN 00785901058625
