O-Z/Gedney

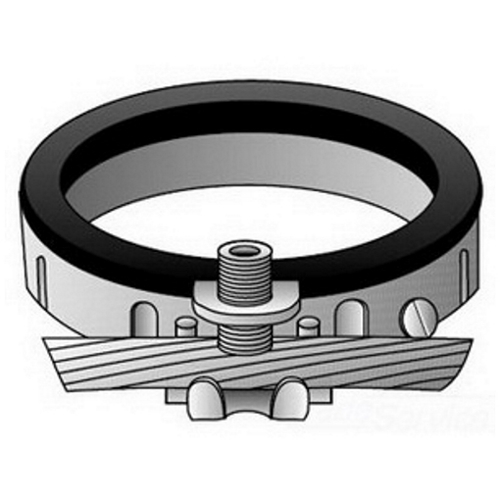

SBLG-4122 Type SBLG Grounding Bushing, 8 to 2/0 AWG AC Cable, 4 in Trade, Malleable Iron, Zinc Plated

MFR:
O-Z/Gedney
MFR #:
SBLG-4122
UPC:
783126481440
Item #:
825404

Availability

Location Available Qty
Available Available to Order
$236.70 each
Manuals and Documentation
Catalog Number SBLG-4122
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Threadless Rigid Conduit And IMC
Connection Set-Screw Threadless
Finish Zinc Plated Body, Tin Plated Copper Grounding Saddle
Material Malleable Iron Body, Stainless Steel Clamping Tension Body, Stainless Steel All Screws
Special Features Provides a compact means of grounding conduit through an insulated bushing; Protect insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Tin plated copper grounding saddle for use with copper or aluminum conductors from #8 to 4/0
Standard Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
UPC 783126481440
GTIN 00783126481440
Item Type Type SBLG Insulated Grounding Bushing
Size 4
Temperature Rating 150 DEG C
