BLACKBURN MECHANICAL

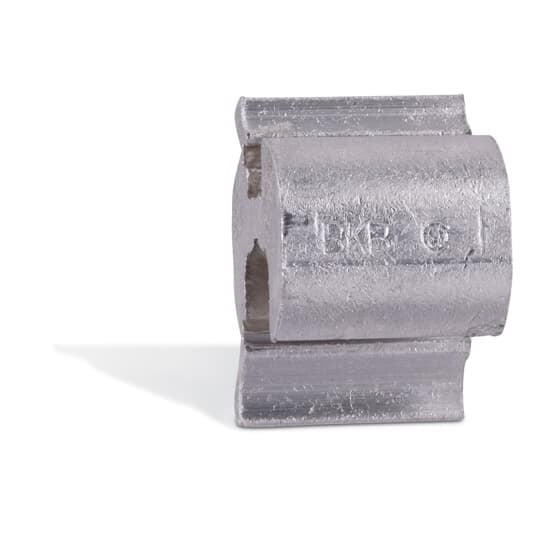

WR139 Blackburn Type WR Wide Range Compression H-Tap Connector, H Shape, 4 to 1/0 AWG ACSR, 3 to 2/0 AWG Stranded, 2 to 2/0 AWG Solid Main/Run, 10 to 8 AWG Stranded, 10 to 6 AWG Solid Tap A, 14 to 12 AWG Stranded, 14 to 12 AWG Solid Tap B Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR139
UPC:
783786100361
Item #:
82416

Availability

Location Available Qty
Available 77 ea
$2.66 each
Manuals and Documentation
Catalog Number WR139
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 3
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786100361
GTIN 00783786100361
Item Type H-Type Compression Tap Connector
Size Length 1-1/2 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 1/0 to #4 ACSR or 2/0 to #3 STR or 2/0 to #2 SOL AWG , Tap A: #8 to #10 STR or #6 to #10 SOL AWG , Tap B: #12 to #14 STR or #12 to #14 SOL AWG
Cross Reference Products ABBInstall 63118|ABBInstall OB2014|ABBInstall WR139|Burndy YPC26R8|Burndy YPC26R8U|ESP S11|Kearney 42482|NAED 13737|PennUnion KOR24|ThomasBett 63118
