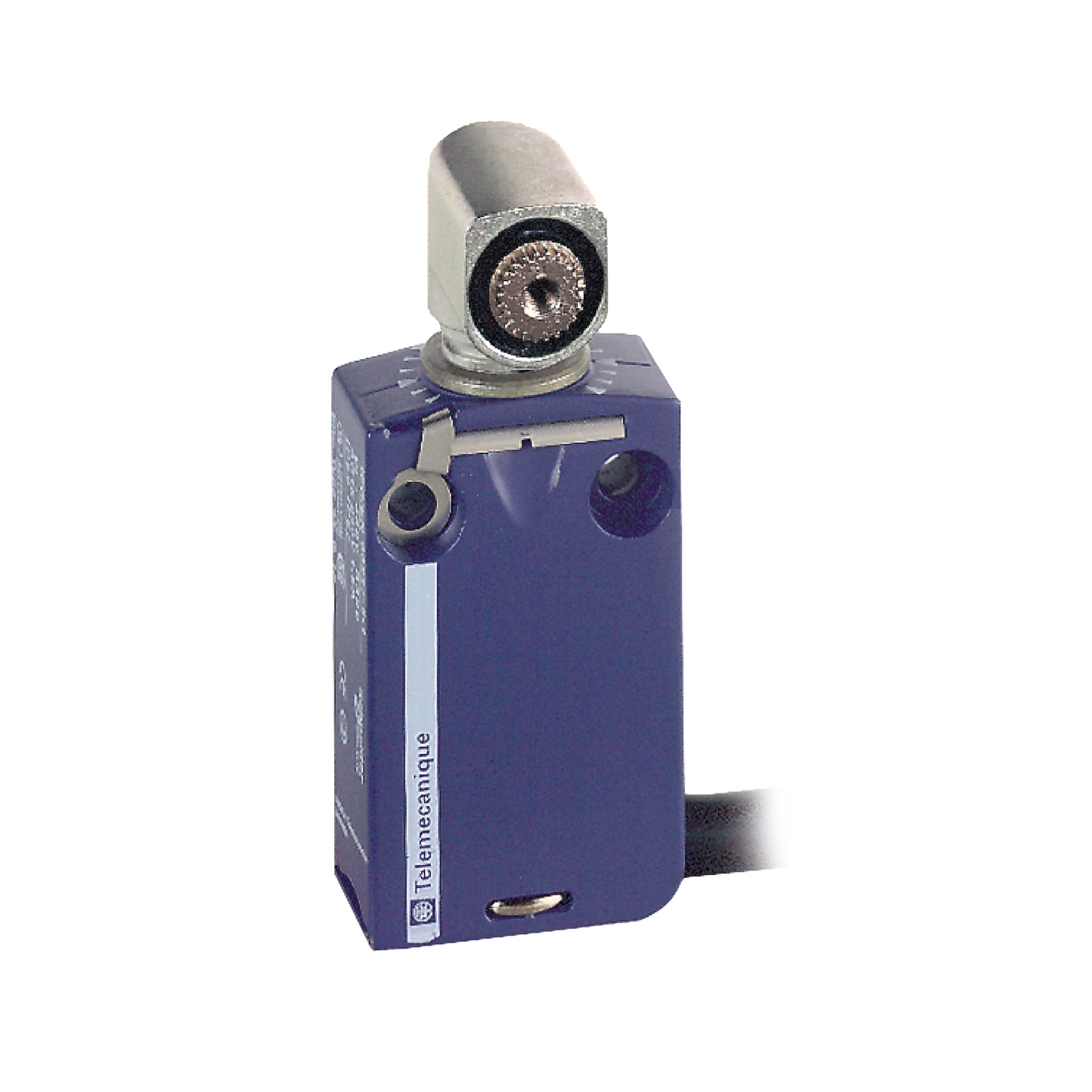

XCMD2101L1 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 1.5 A, Spring Return Without Operating Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCMD2101L1
- Item #:
- 823708
XCMD2101L1 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 1.5 A, Spring Return Without Operating Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCMD2101L1
- Item #:
- 823708
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$123.45
each
limit switch XCMD - with rotary head W/O operating lever - 1NC+1NO - snap - 1 m
Manuals and Documentation
| Catalog Number | XCMD2101L1 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Snap action |
| Actuator | Rotary;Spring return without operating lever;Lateral approach, 2 directions |
| Connection | Removable cable connector |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Special Features | IK06 CONFORMING TO EN 50102,IP68 CONFORMING TO IEC 60529-IP66 CONFORMING TO IEC 60529-IP67 CONFORMING TO IEC 60529,METAL,REMOVABLE CABLE CONNECTOR |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CCC-CSA-UL,EN/IEC 60204-1-EN/IEC 60947-5-1-UL 508-CSA C22.2 NO 14,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857642&lang=en-us |
| GTIN | 03389110299564 |
| Item Type | Limit switch |
| Size | 16 MM,30 MM,50-50 MM |
| Operating Temperature | -25-70 A Degrees C |
