Hubbell Wiring Device-Kellems

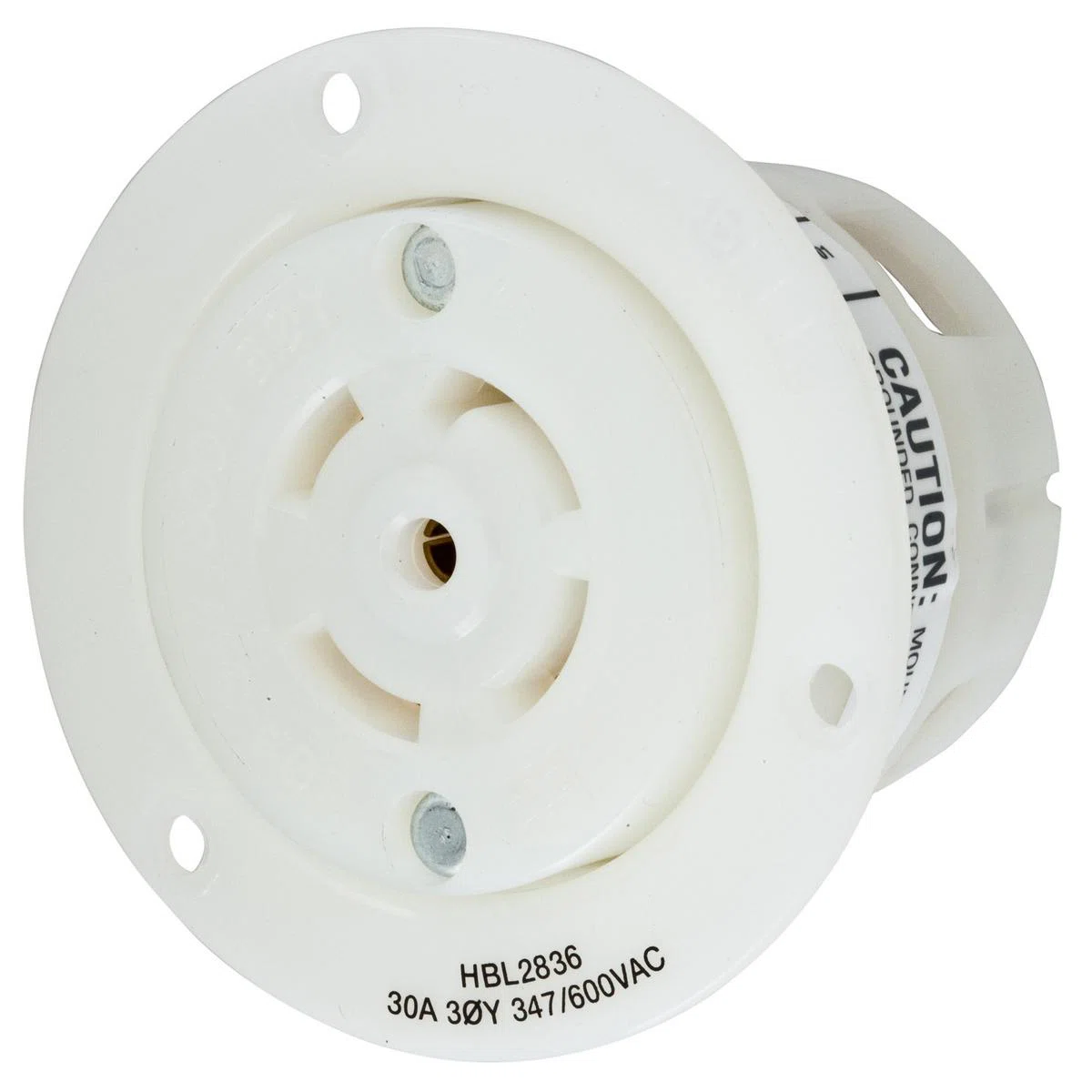

HBL2836 3-Phase Flanged Standard Single Screw Mount Locking Receptacle, 30 A, 4 Poles, 5 Wires, White

MFR:
Hubbell
MFR #:
HBL2836
UPC:
783585039763
Item #:
823425

Availability

Location Available Qty
Available Available to Order
$194.53 each

Hubbell Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. It's these and many other features that set Hubbell performance above all others.

Manuals and Documentation

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
Manufacturer Part Number HBL2836
Brand Hubbell Wiring Device-Kellems
Manufacturer Hubbell
UPC 783585039763
EAN 0783585039763
Country Of Origin US
Amperage Rating 30 A
Color White
Dimensions 3.06 x 3.06 x 2.27 in
Enclosure NEMA 4X/12/IP20
Material Nylon
Temperature Rating -40 to 75 deg C
Type 3-Phase Flanged Standard Single Screw Mount
Voltage Rating 347/600Y V AC
Alternative Part Number 8958868 | 11827281
Manufacturer Item Status Active
Country USA/Canada
Warranty Limited
Standards Approvals CSA C22.2 No. 0.17/42 | UL94 Flammability Rating | RoHS Compliant | UL 94 | UL 498 | Federal Specification W-C-596 | NEMA WD1/WD5
Application Dry Locations, Indoor, Stage and Studio Power, Portable Power Distribution, Lighting, On-Location Filming, Carnivals and Theme Park Applications
Includes Mounting Screws
Grade Industrial
Nema Rating L23-30R
Number Of Poles 4
Number Of Wires 5
Terminal Type Screw
