Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
Manuals and Documentation

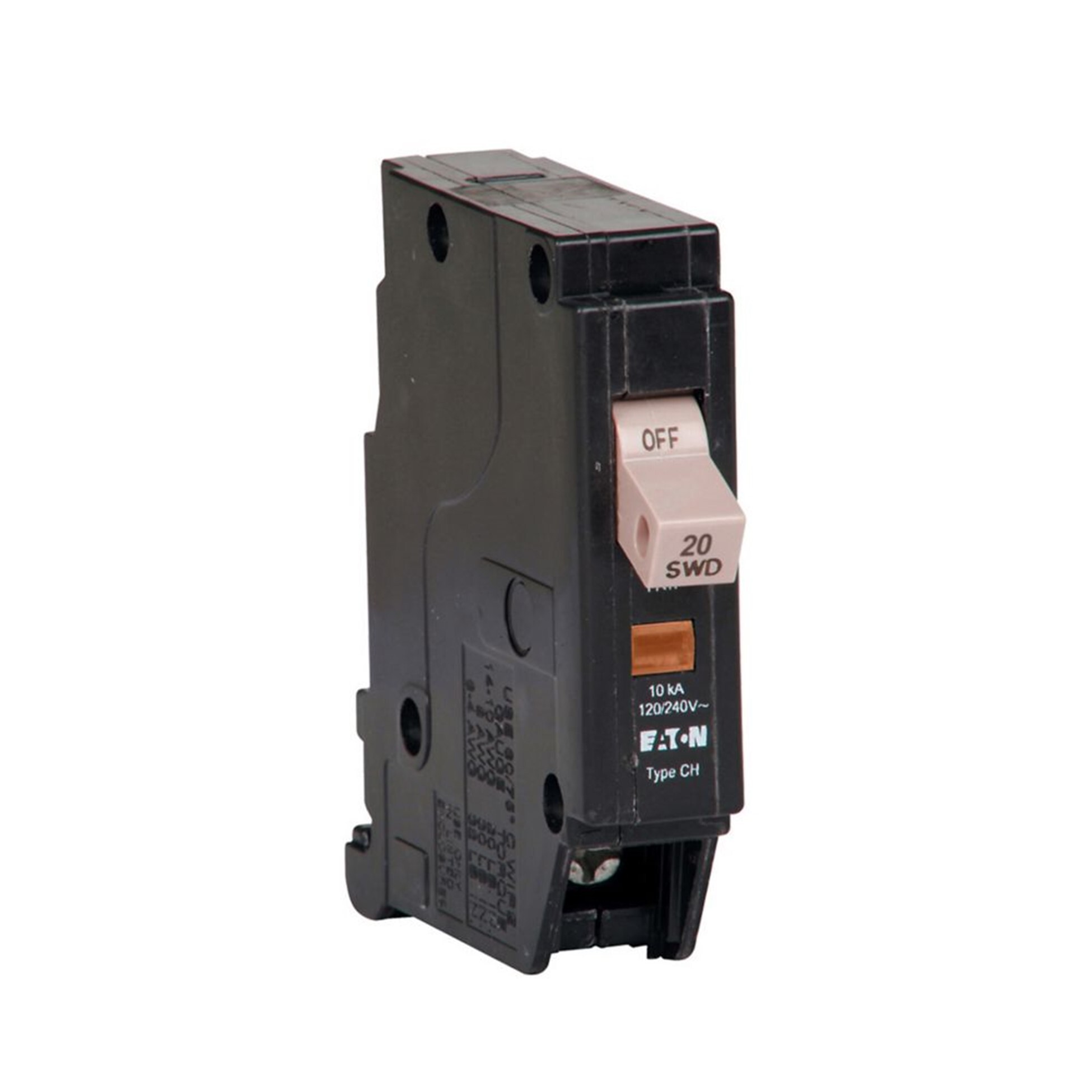

| Catalog Number | CHF120 |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Dominican Republic |
| Made in USA | No |
| Application | Datacenters - IT Space: CI and Hyper Converged|Generation - Renewable Energy - Alternative Energy|Generation - Conventional Energy - Conventional Energy|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Other |
| Interrupt Rating | 10 kAIC |
| Number of Poles | 1 |
| Standard | UL 489,HACR Rated |
| UPC | 786685361840 |
| GTIN | 00786685361840 |
| Item Type | Thermal magnetic circuit breakers |
| Trip Type | Trip flag |
| Voltage Rating | 120/240 V |
