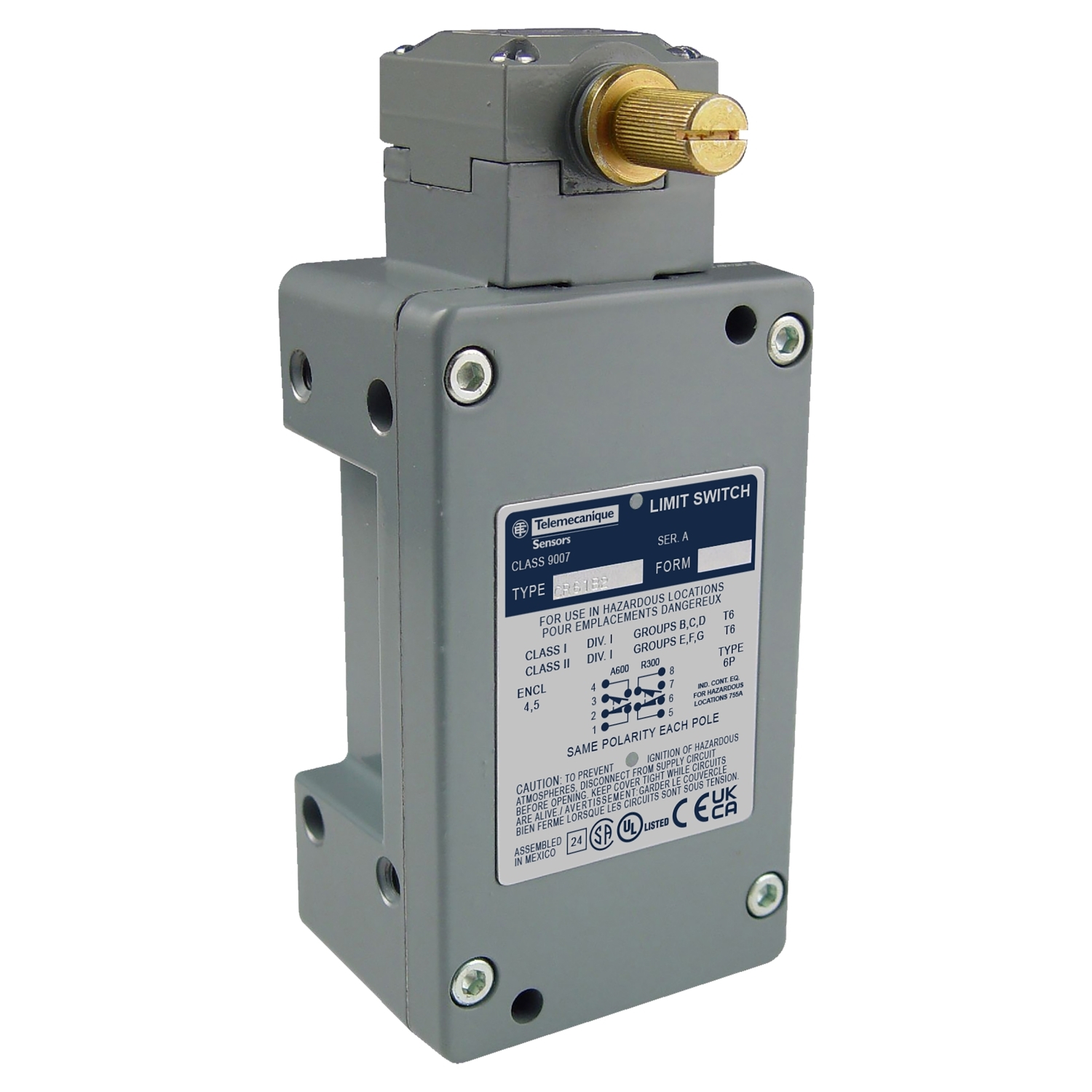

Limit switch, 9007, 9007CR 2 NO/NC 2 stage, rotary head, CW+CCW, low differential
MFR: Telemecanique Sensors
MFR #: 9007CR65A2
UPC: 785901756903
Item #: 815356
Limit switch, 9007, 9007CR 2 NO/NC 2 stage, rotary head, CW+CCW, low differential
MFR #: 9007CR65A2
UPC: 785901756903
Item #: 815356
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1582.12
each
9007CR limit switch - 2 NO/NC 2 stage - rotary head - CW+CCW - low differential
Manuals and Documentation
- Catalog Number
- 9007CR65A2
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- 9007CR
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- Action
- CW and CCW;from left and right;Lateral approach, 1 or 2 programmable direction;Snap action
- Actuator
- Zinc spring return without operating lever low differential)9007C lever
- Amperage Rating
- 10
- Application
- Hazardous location box
- Connection
- Screw-clamp terminals AWG 22...AWG 12), 1-2
- Contact Configuration
- 2(NC-NO);Form Z
- Contact Rating
- NEMA A600/R300
- Enclosure
- NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Mounting
- By The Body
- Number of Poles
- 2
- Operating Cycles
- 1000000 CYCLES
- Special Features
- without
- Standard
- 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
- UPC
- 785901756903
- GTIN
- 00785901756903
- Item Type
- Limit switch
- Size
- 2.79
- Environmental Conditions
- STANDARD ENVIRONMENT
- Operating Temperature
- -20-185 A Degrees F HAZARDOUS LOCATION
- Voltage Rating
- 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.11 A 250 V DC, R300 NEMA-0.55 A 125 V DC, R300 NEMA
