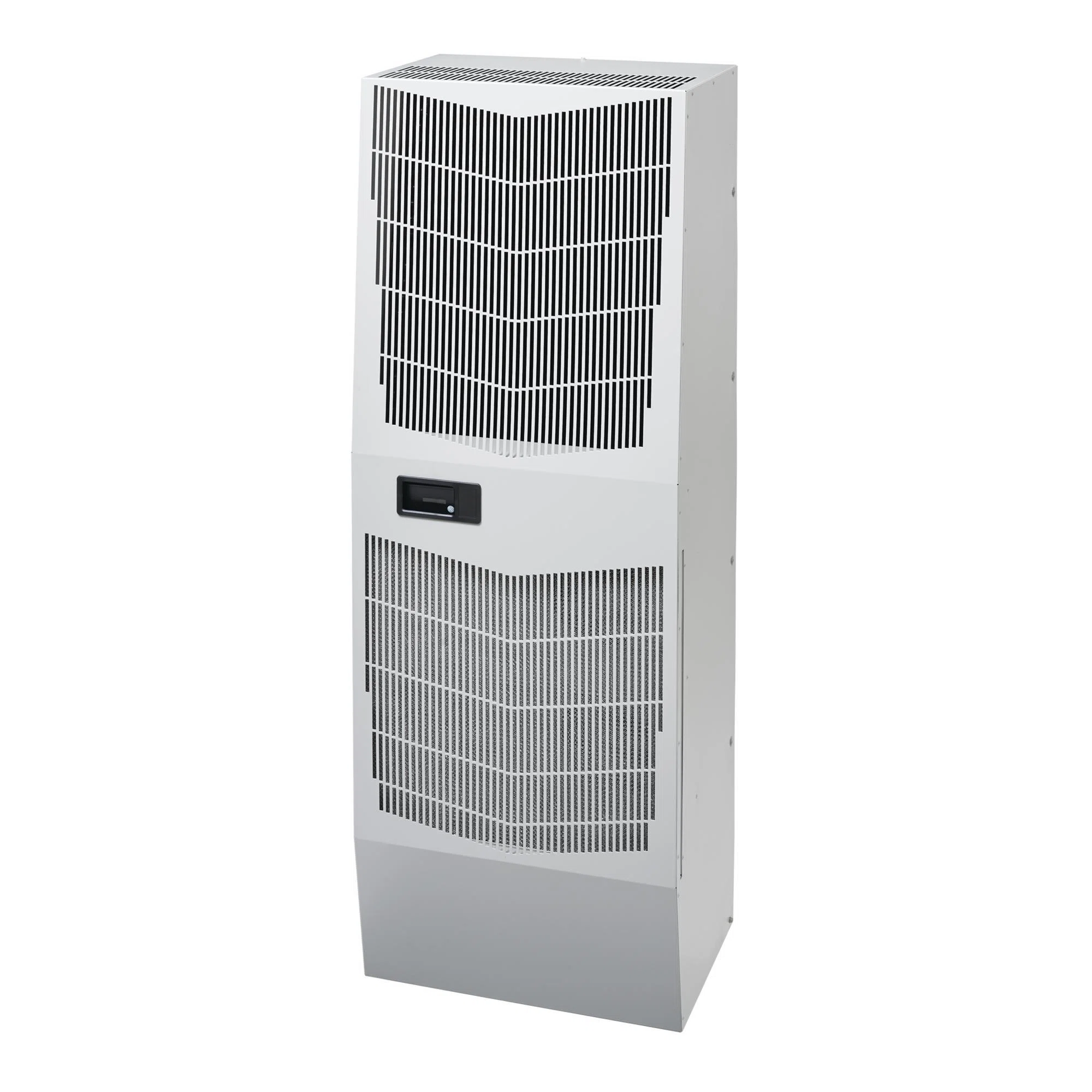

G572046G360 McLean SpectraCool 3-Phase Sealed Enclosure Air Conditioner With Level 2 Advanced Corrosion Protection, 460 V AC, 6/6.8 A, 50/60 Hz, 20000 Btu/hr
- MFR:
- nVent
- MFR #:
- G572046G360
- UPC:
- 783510356989
- Item #:
- 814115
G572046G360 McLean SpectraCool 3-Phase Sealed Enclosure Air Conditioner With Level 2 Advanced Corrosion Protection, 460 V AC, 6/6.8 A, 50/60 Hz, 20000 Btu/hr
- MFR #:
- G572046G360
- UPC:
- 783510356989
- Item #:
- 814115
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$23,625.77
each
SpectraCool Air Conditioners are available in three sizes that offer a broad range of cooling capacities and configurations. These units deliver reliable enclosure cooling in demanding environments that features reliable design, clean appearance, easy installation, and a filterless design.
Manuals and Documentation
Features
- Attractive industrial design with minimal use of visible fasteners
- Energy-efficient rotary compressor on most models
- Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes - Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
| Manufacturer Part Number | G572046G360 |
| Brand | nVent HOFFMAN |
| Manufacturer | nVent |
| UPC | 783510356989 |
| EAN | 8713574337329 |
| Country Of Origin | US |
| Amperage Rating | 6/6.8 A |
| Color | Light Gray |
| Dimensions | 52.7 in H x 20.89 in W x 15.36 in D |
| Enclosure Type | NEMA 3R/4/12/IP56 |
| Material | Sheet Metal |
| Mounting Type | Flange/Side |
| Series | G57 |
| Temperature Rating | -40 to 131 deg F |
| Type | 3-Phase Sealed |
| Voltage Rating | 460 V AC |
| Alternative Part Number | 14253905 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | UL Listed | cUL File No. SA6453 | CE Certified | EAC Approved | REACH Compliant |
| Application | Industrial Automation, Telecommunications Equipment, Wastewater Treatment, Package Handling Equipment, Security and Defense System Applications |
| Includes | Active Condensate Management with Heater Strip, Power Off Relay for Door Switch, Other System Requirement, Corrosion Resistant Component, Malfunction Switch, Compressor Heater, Head Pressure Control, Up to 2000 W (G28, G52), 3000 W (G57) Enclosure Heater |
| Capacity Range | 20000 |
| Connection Type | Terminal Block |
| Control Type | Mechanical Thermostat |
| Frequency Rating | 50/60 Hz |
| Power Rating | 2400/3128 |
