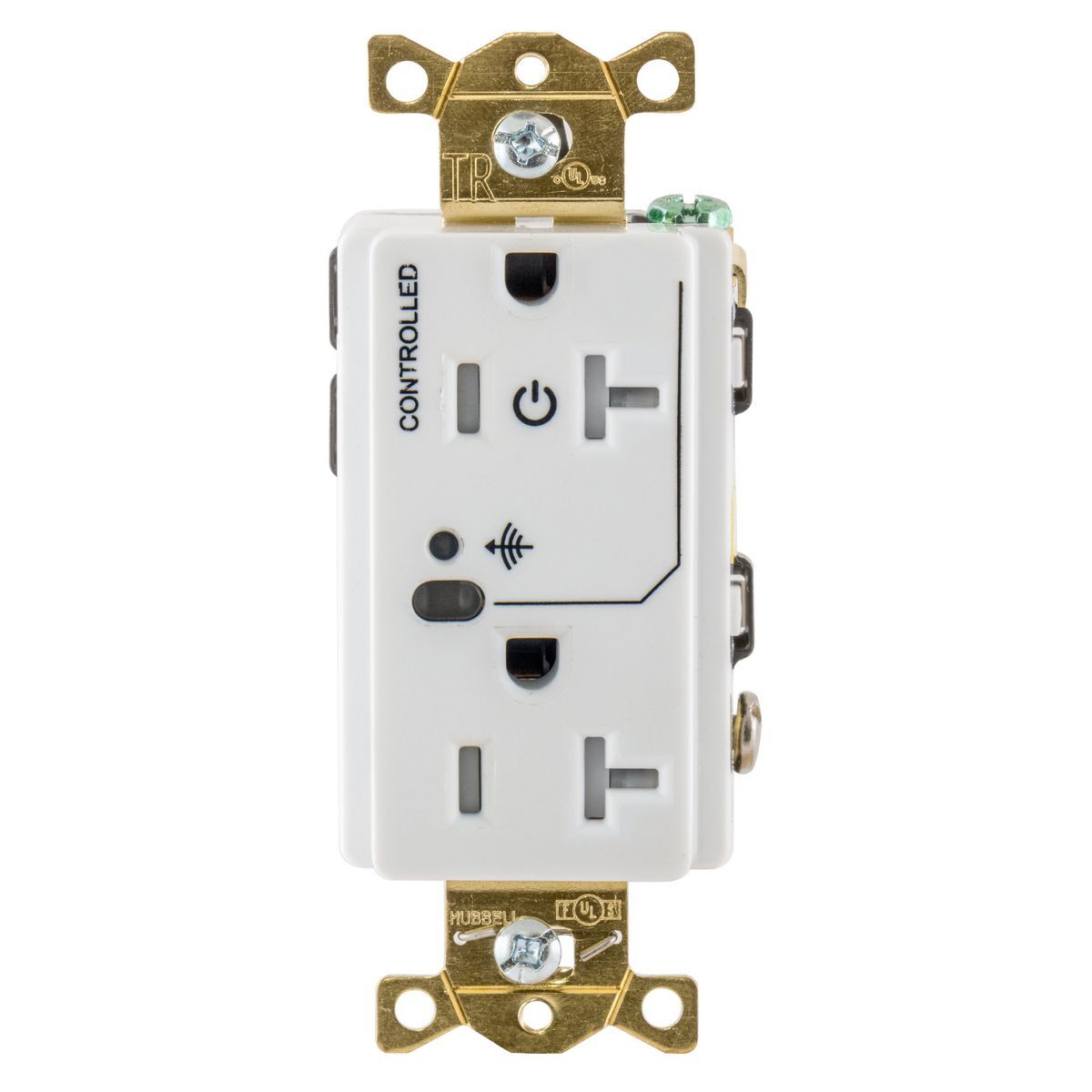

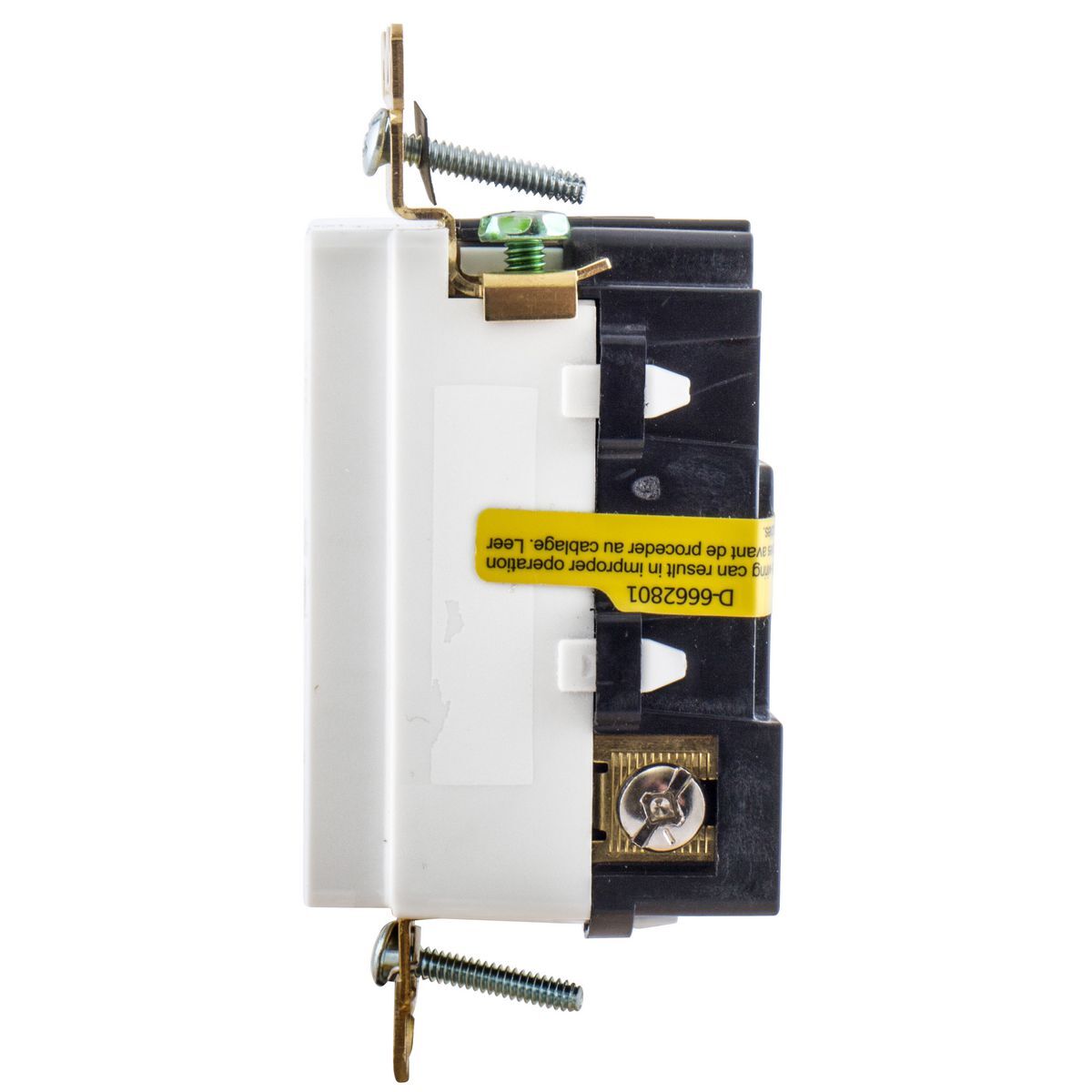

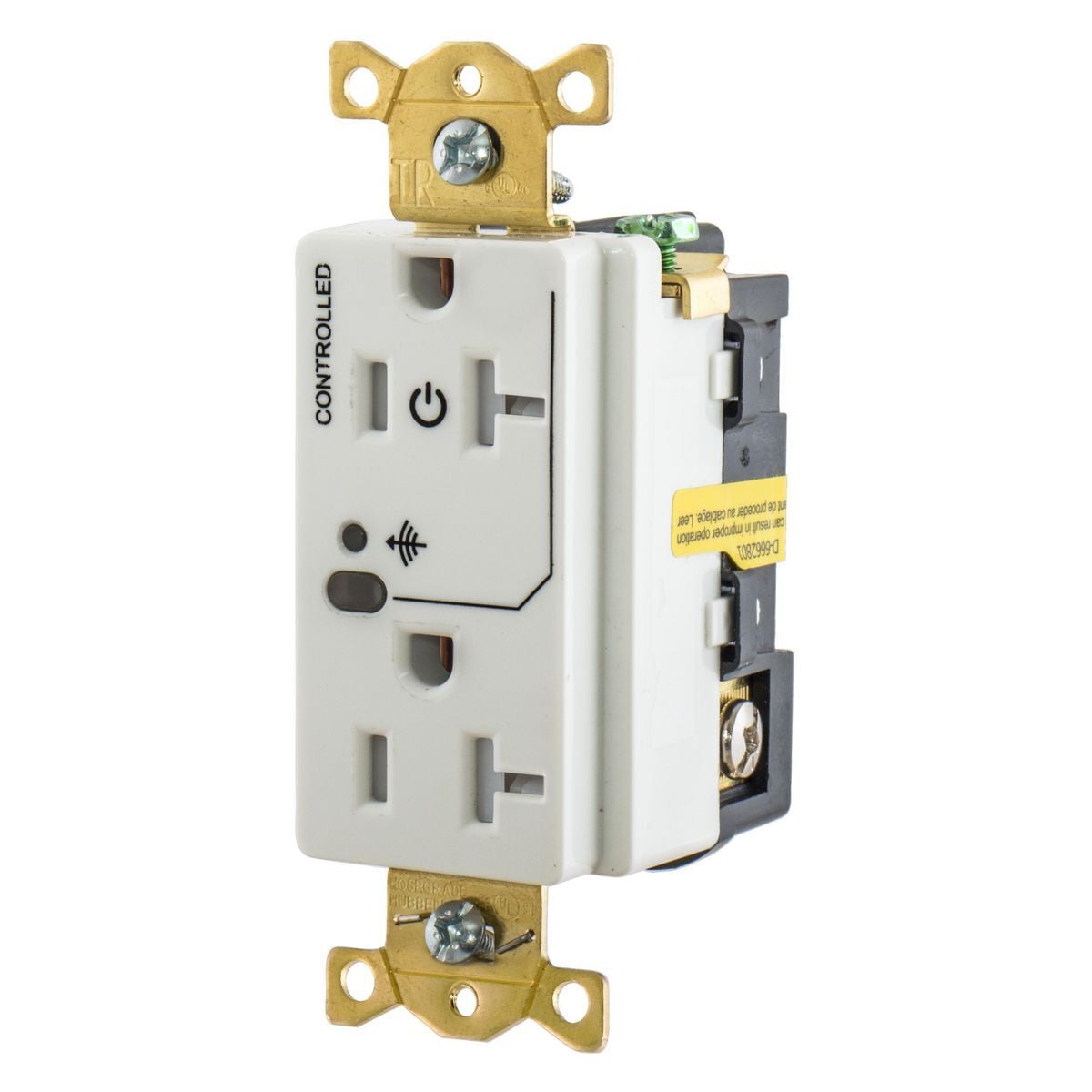

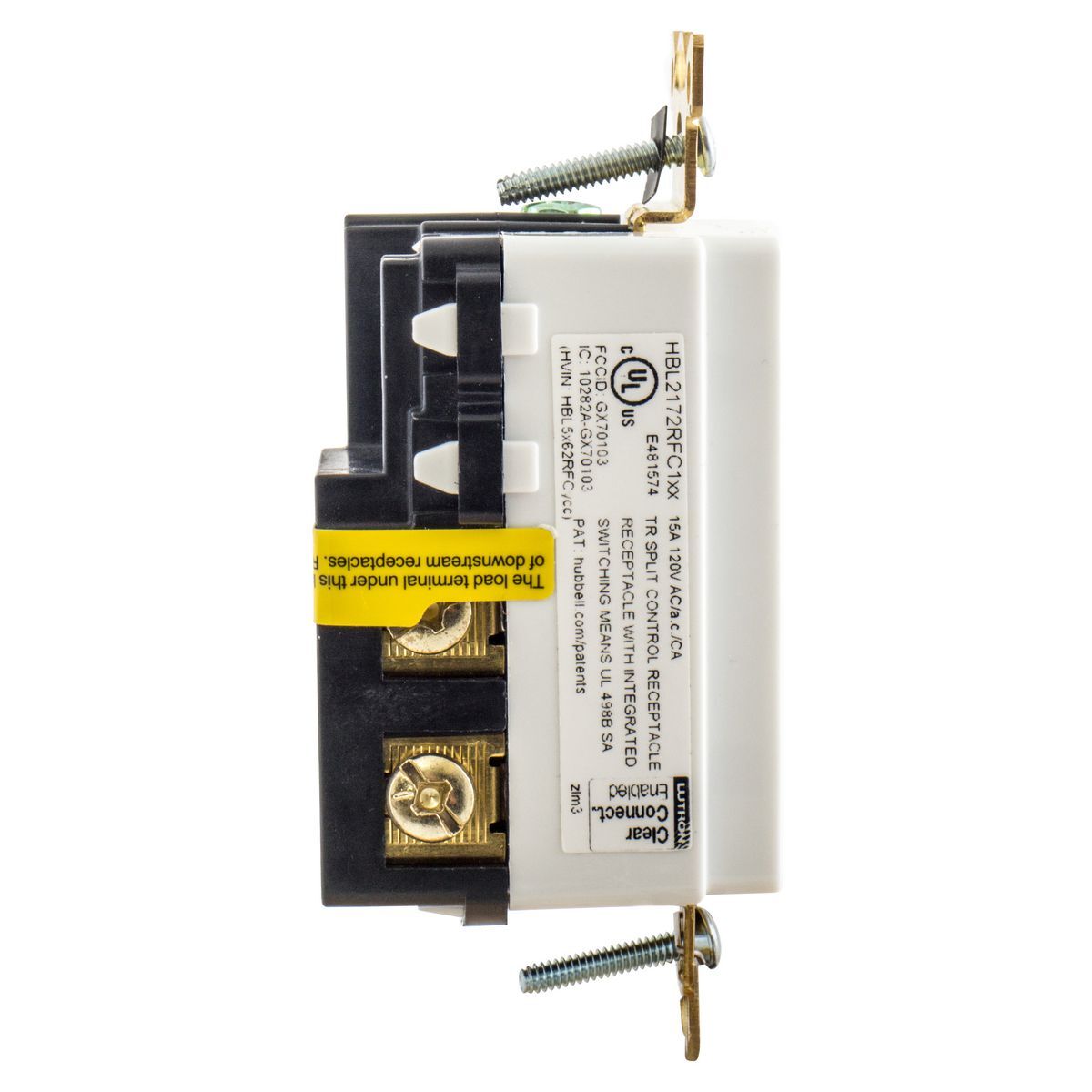

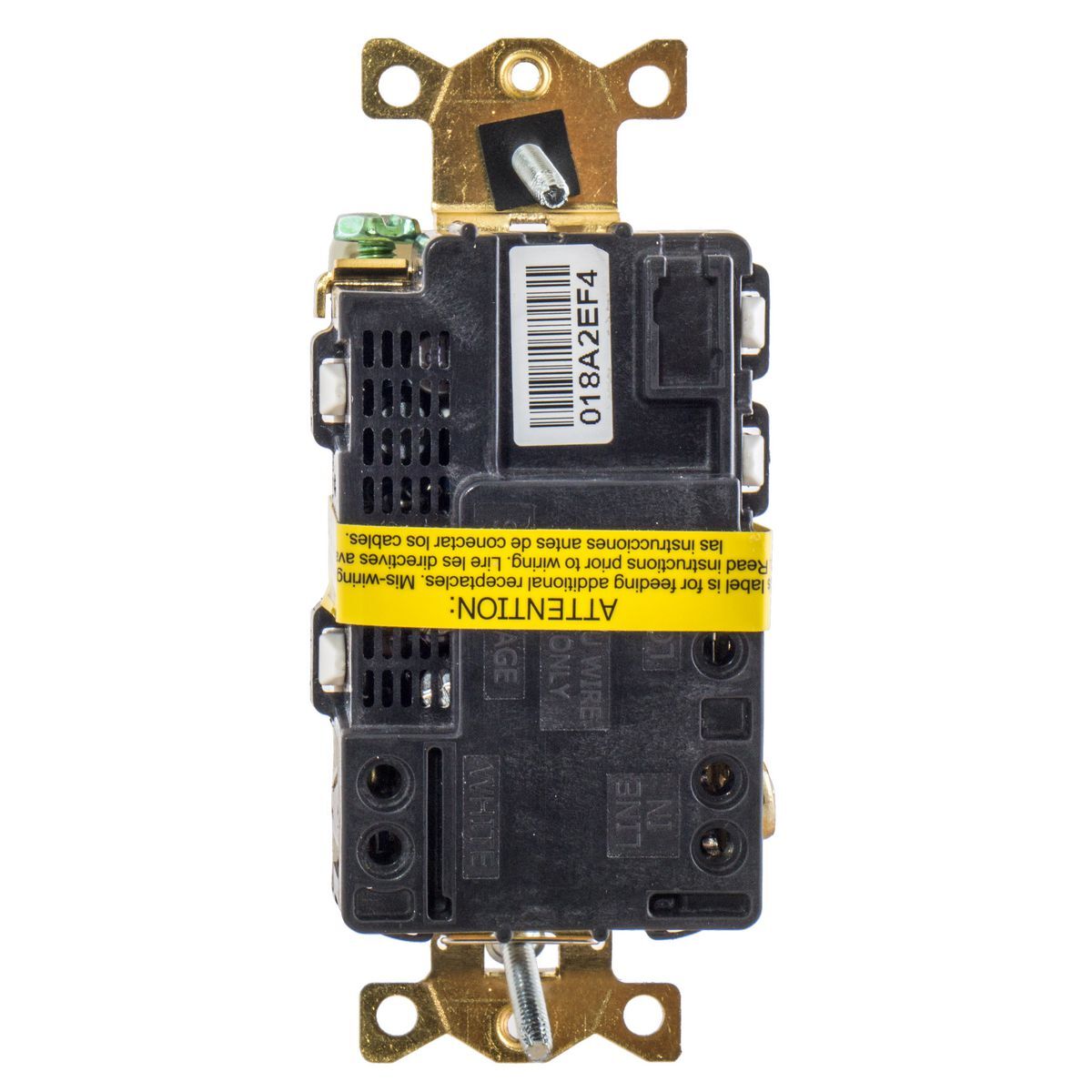

HBL5362RFC1W 1-Phase Duplex Grounding Split Circuit Switched Wireless Standard Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5362RFC1W
- UPC:
- 783585401911
- Item #:
- 811995
HBL5362RFC1W 1-Phase Duplex Grounding Split Circuit Switched Wireless Standard Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
- MFR #:
- HBL5362RFC1W
- UPC:
- 783585401911
- Item #:
- 811995
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$180.00
each
Switched Receptacles for Automatic Receptacle Control - to Hubbell Wiring Device-Kellems comprehensive offering for automatic receptacle control requirements. Featuring Hubbells exclusive and patented tamper-resistant mechanism as standard, the unit is capable of controlling other receptacles downstream in the branch circuit. Hubbell offers this innovative device in wired and wireless options, which are both fully compatible with existing systems. This allows for easy additions and changes to meet current energy codes and standards in current facilities.
Manuals and Documentation
| Catalog Number | HBL5362RFC1W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Logic Load Control Receptacles |
| Color | White |
| Connection | Terminal Screws |
| Material | Thermoplastic/Composite |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Special Features | 1/2 Controlled, Tamper-Resistant |
| Standard | cULus 498B SA UL File No. E481574;Fed. Spec. WC596G;Complies with:NEC Section 406.3 (E), ASHRAE 90.1 Section 8.4.2,California Title 24;Artcile 130.5(d);NEMA WD-6 Compliant |
| UPC | 783585401911 |
| GTIN | 00783585401911 |
| Item Type | Split Circuit |
| Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry |
| Temperature Rating | 0 Degrees to 40 Degrees C (32 Degrees to 104 Degrees F) Relative Humidity (non-condensing) 0% to 95% (w/o impact) |
| Voltage Rating | 125 |
| Wattage | 2500 W |
| Wire Size | #14 AWG to #10 AWG |
