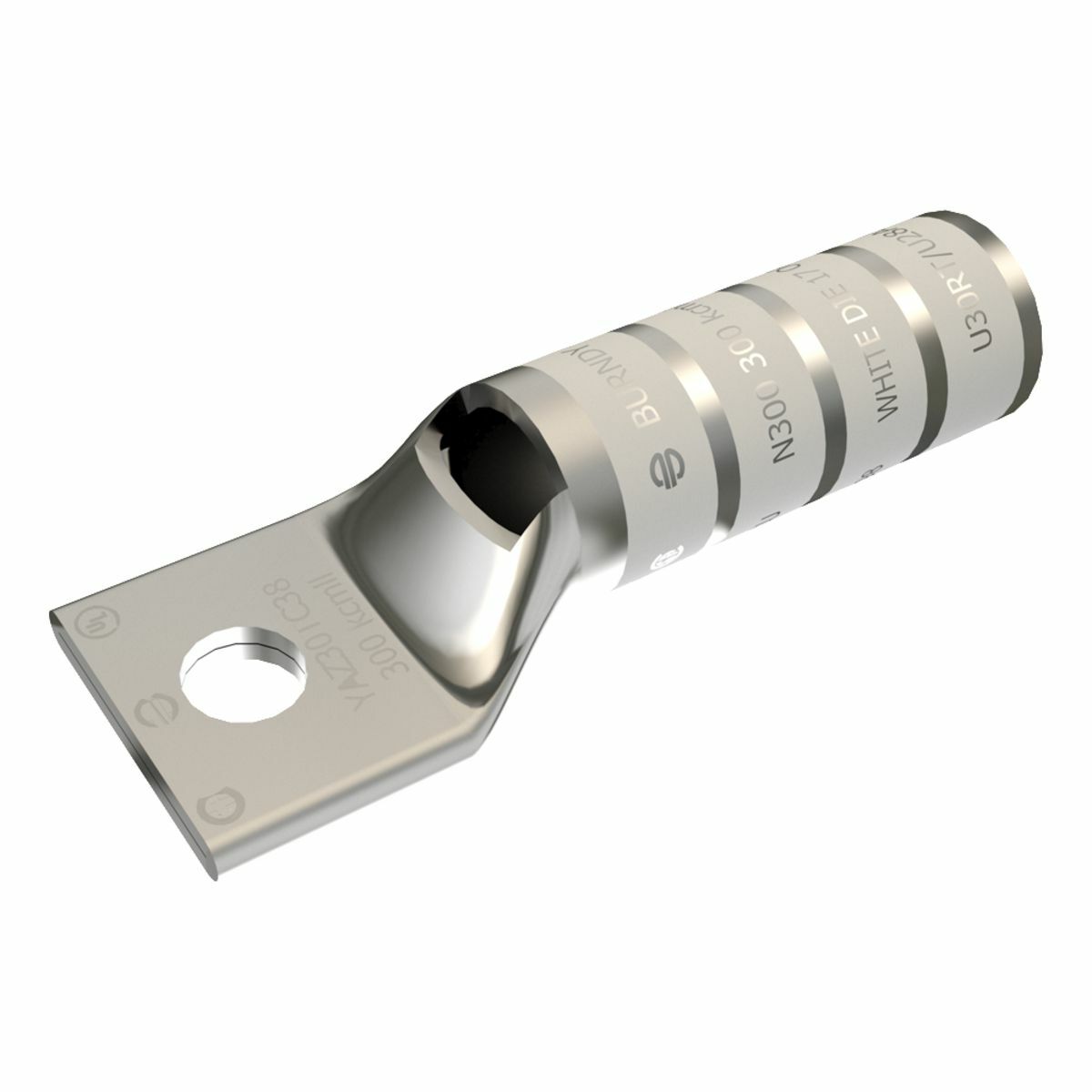

YAZ30TC38 1-Hole Uninsulated Compression Lug With Inspection Window, 300 kcmil Stranded Conductor, Die Code: 17/298, 3/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ30TC38
- UPC:
- 781810240212
- Item #:
- 81182
YAZ30TC38 1-Hole Uninsulated Compression Lug With Inspection Window, 300 kcmil Stranded Conductor, Die Code: 17/298, 3/8 in Stud, Tin Plated Copper
- MFR #:
- YAZ30TC38
- UPC:
- 781810240212
- Item #:
- 81182
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$49.93
each
Manuals and Documentation
| Catalog Number | YAZ30TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 2-1/16 IN, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U30RT, U28ART Die, (4), Y46 Tool, U30RT, U28ART Die With PUADP-1 Adapter, (4), Color Code: White, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3), Die Index: 17 Or 298 |
| Standard | UL 486A-486B |
| UPC | 781810240212 |
| GTIN | 00781810240212 |
| Item Type | Long Barrel, Skive, Tin Plated |
| Voltage Rating | 35 |
