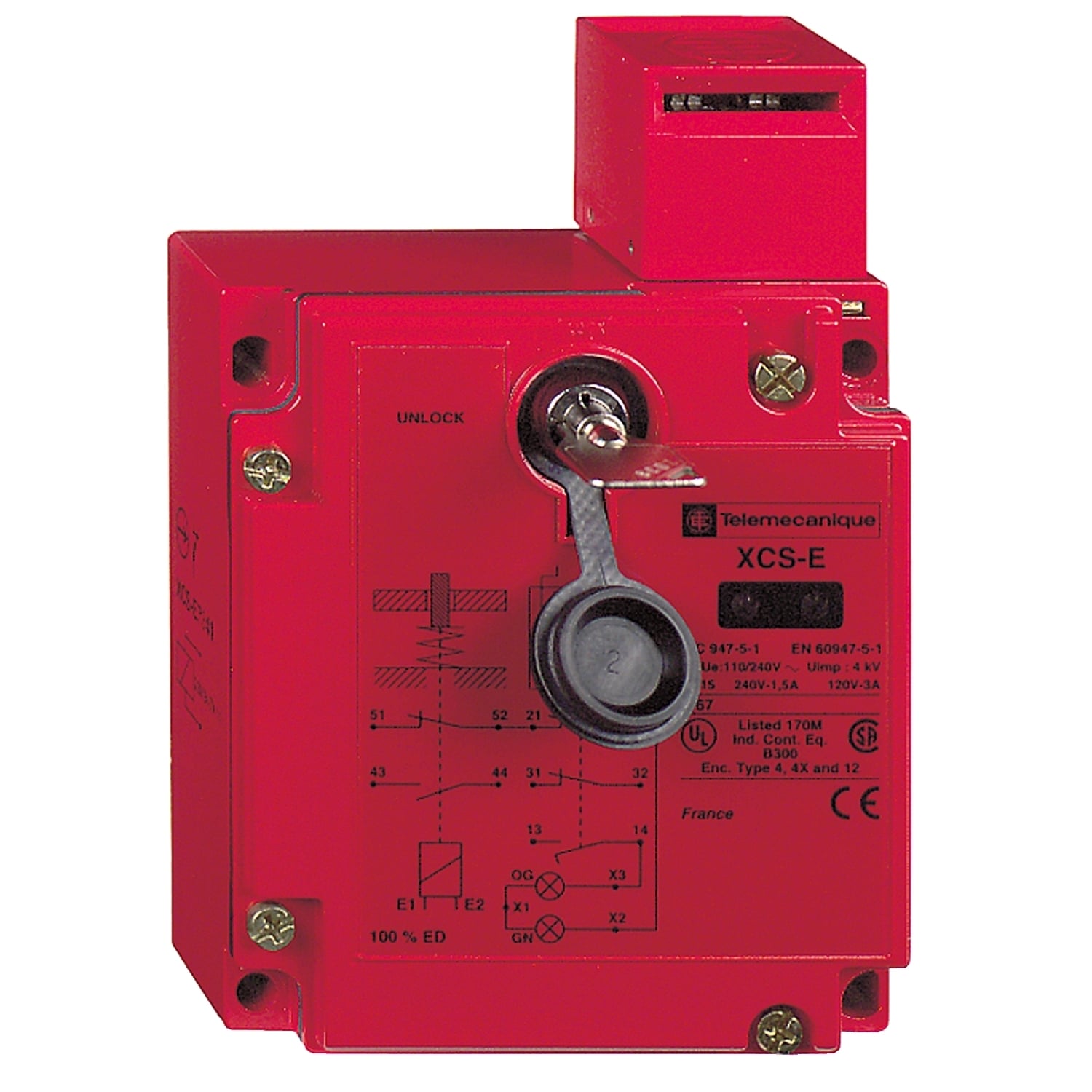

XCSE731122 Preventa Safety Interlock Switch, 6 A
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSE731122
- UPC:
- 785901547754
- Item #:
- 810933
XCSE731122 Preventa Safety Interlock Switch, 6 A
- MFR #:
- XCSE731122
- UPC:
- 785901547754
- Item #:
- 810933
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$946.41
each
metal safety switch XCSE - 2NC+1NO - slow break - 2 entries tapped Pg 13- 24V
Manuals and Documentation
| Catalog Number | XCSE731122 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | China |
| Made in USA | No |
| Action | Slow-break, break before make |
| Amperage Rating | 6 |
| Application | KEY OPERATED TURRET HEAD |
| Connection | Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Contact Configuration | 2 NC + 1 NO |
| Number of Poles | 3 |
| Operating Cycles | 10 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | for guard open/guard closed and locked 2 LEDs (green or orange);Locking on de-energisation and unlocking on energisation of solenoid;Overvoltage protection signalling circuit |
| Standard | 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-UL 508-EN/IEC 60947-5-1-EN/ISO 12100-EN/IEC 60204-1-EN 1088/ISO 14119,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,UL-CSA,CLASS I EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859212&lang=en-us |
| UPC | 785901547754 |
| GTIN | 03389110956788 |
| Item Type | Safety switch |
| Size | 1.73 |
| Operating Temperature | -25-40 A Degrees C |
| Voltage Rating | 24 V - 20...10 % |
