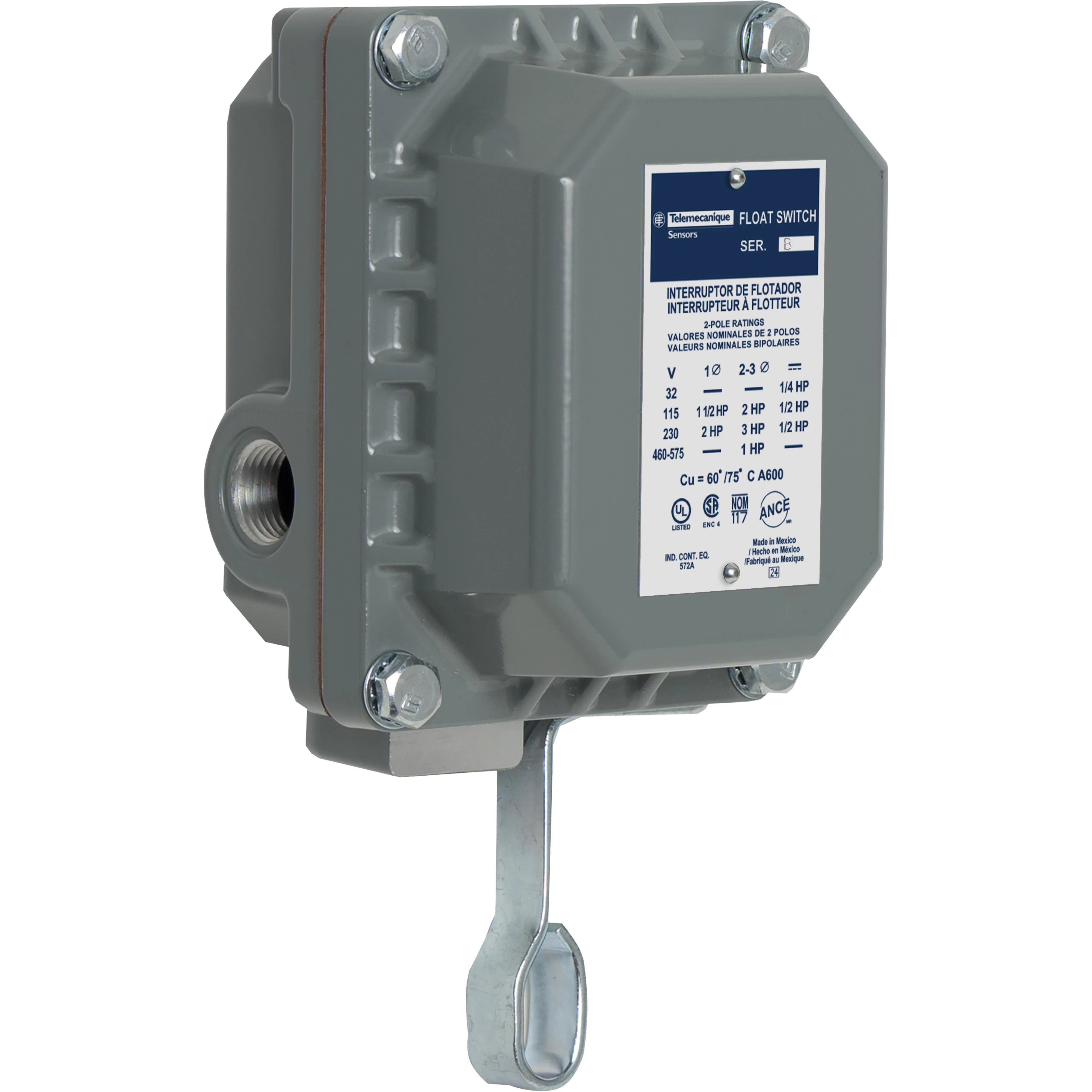

Float switch, Pumptrol, open tank, NEMA 4, pedestal mounted, 2NC DPST DB contacts
- MFR:
- Schneider Electric
- MFR #:
- 9036DW31C
- UPC:
- 785901064343
- Item #:
- 81059
Float switch, Pumptrol, open tank, NEMA 4, pedestal mounted, 2NC DPST DB contacts
- MFR #:
- 9036DW31C
- UPC:
- 785901064343
- Item #:
- 81059
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$728.30
each
float switch - open tank - NEMA 4 - pedestal mounted - 2 NC DPST-DB contacts
Manuals and Documentation
Features
- Screw clamp terminal connection type
- 20 A cartridge fuse gG, compensating spring
| Manufacturer Part Number | 9036DW31C |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901064343 |
| EAN | 0785901064343 |
| Country Of Origin | MX |
| Dimensions | 5.06 in H x 5.5 in W x 4.25 in D |
| Material | Steel |
| Series | 9036D |
| Temperature Rating | -22 to 220 deg F |
| Type | 2-Pole Type D Light Duty Open Tank Variable Adjustable |
| Alternative Part Number | 8001031 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | RoHS Compliant | REACH Compliant | UL 508 File No. E12158 | CSA File No. LR25490 | IEC Certified | VDE Approved | CE Certified | Green Premium | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | For 1.5 kW at 2 hp, 115 VAC 1-phase, 2.2 kW at 3 hp, 115 VAC 3-phase, 2.2 kW at 3 hp, 230 VAC 1-phase, 3.7 kW at 5 hp, 230 VAC 3-phase, 0.75 kW at 1 hp, 460 VAC 3-phase, 0.75 kW at 1 hp, 475 VAC 3-phase, 0.18 kW at 0.25 hp, 32 VDC, 0.37 kW at 0.5 hp, 115 VDC, 0.37 kW at 0.5 hp, 230 VDC open tank or sump, liquid level control, open tank general purpose, power circuit, pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses, injection molders, grinding machines, machining centers, complex and special machines, hvac, automotive, food and beverage, healthcare facilities, liquid level control, pharmaceutical and general purpose applications |
| Connection Size | 3/4-14 |
| Input | 575 V AC |
| Output | Snap Action Contact |
