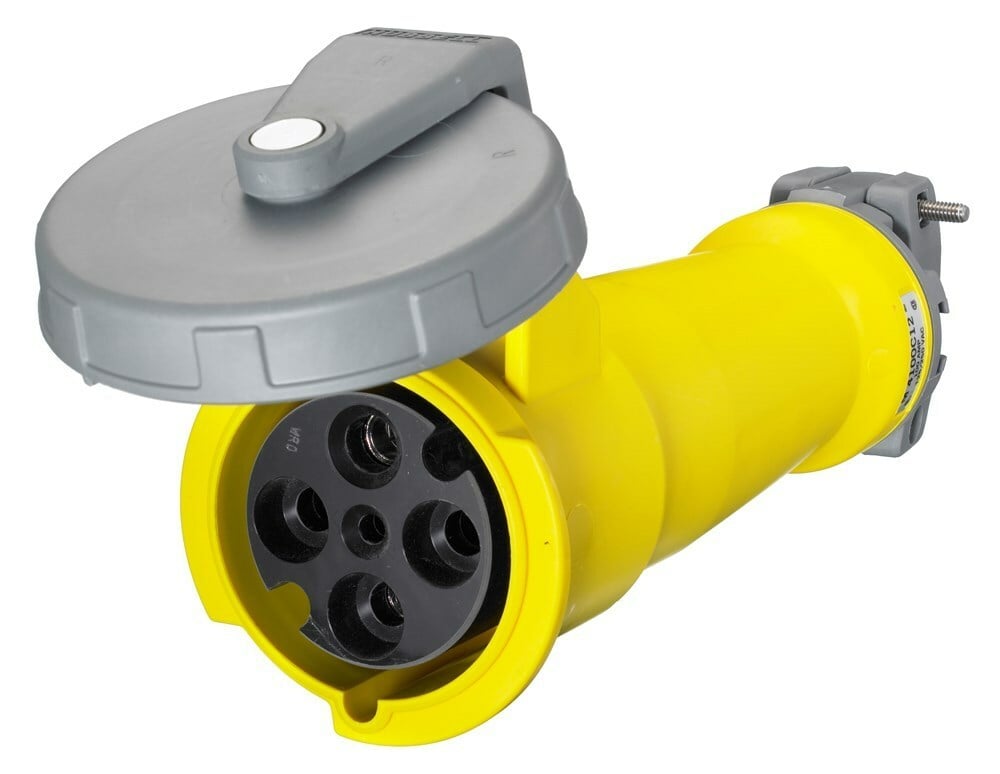

M4100C12 Female Heavy Duty Standard Watertight Cord Mount Pin and Sleeve Connector, 125/250 V AC, 100 A, 3 Poles, 4 Wires, Yellow
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- M4100C12
- UPC:
- 783585410029
- Item #:
- 80396
M4100C12 Female Heavy Duty Standard Watertight Cord Mount Pin and Sleeve Connector, 125/250 V AC, 100 A, 3 Poles, 4 Wires, Yellow
- MFR #:
- M4100C12
- UPC:
- 783585410029
- Item #:
- 80396
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,503.06
each
Corrosion Resistant Devices that Withstand the Most Abusive Environments - Hubbell offers a superior grade of 100A IEC Pin and Sleeve designed for use in the most demanding environments. These devices feature nickel plated solid brass pins for long life and reliable electrical contact in the most corrosive environments. They have a high visibility yellow supertough nylon housing. The heavy duty external cord clamps provide maximum cord retention to maintain secure terminations. The screws and fasteners are made from stainless steel.
| Catalog Number | M4100C12 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | Marine Wiring Devices |
| Color | Yellow |
| Conductor Range | #3 AWG to #1/0 AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| Number of Conductors | 4-Wire Grounding |
| Number of Poles | 3 |
| Special Features | Watertight |
| Standard | CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033 |
| UPC | 783585410029 |
| GTIN | 00783585410029 |
| Item Type | Watertight Connector Body |
| Size | Standard |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125/250 |
