Leviton®

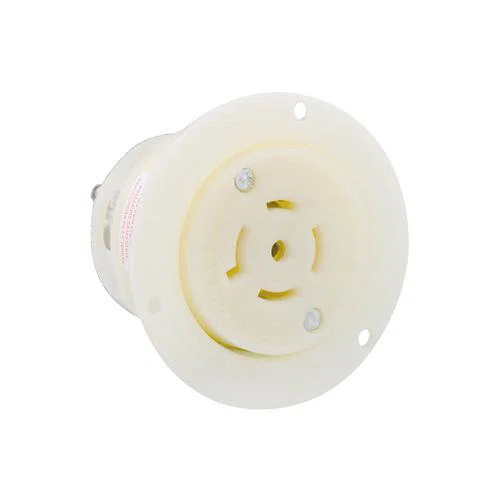

2526 3-Phase Grounding Receptacle Locking Flanged Outlet, 277/480 V AC, 20 A, 4 Poles, 5 Wires, White

MFR:
Leviton
MFR #:
2526
UPC:
078477806548
Item #:
80132

Availability

Location Available Qty
Available Available to Order
$165.17 each

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max™ line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Manuals and Documentation

Features

  • Flange mounting
  • Withstands 2000 VAC per UL 498 dielectric voltage
  • Maximum 30 deg C after 250 cycles overload at 200% rated current temperature rise
  • 18 to 10 AWG terminal accommodation
  • Offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty
  • Nylon cover and base, solid brass line contacts, #10-32 brass terminal screws, #8-32 brass grounding screw, thermoplastic nylon strap material
  • Back wire connection
Manufacturer Part Number 2526
Brand Leviton®
Manufacturer Leviton
UPC 078477806548
Country Of Origin US
Amperage Rating 20 A
Color White
Dimensions 2.5 in Dia x 1.78 in H
Horsepower 5 hp
Material Nylon
Temperature Rating -40 to 60 deg C
Type 3-Phase Grounding Receptacle
Voltage Rating 277/480 V AC
Alternative Part Number 7331263
Manufacturer Item Status Active
Country USA/Canada
Warranty Lifetime
Standards Approvals ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating
Application Commercial Applications
Grade Industrial
Nema Rating NEMA L22-20R
Number Of Poles 4
Number Of Wires 5
Terminal Type Back Wire
