SQUARE D

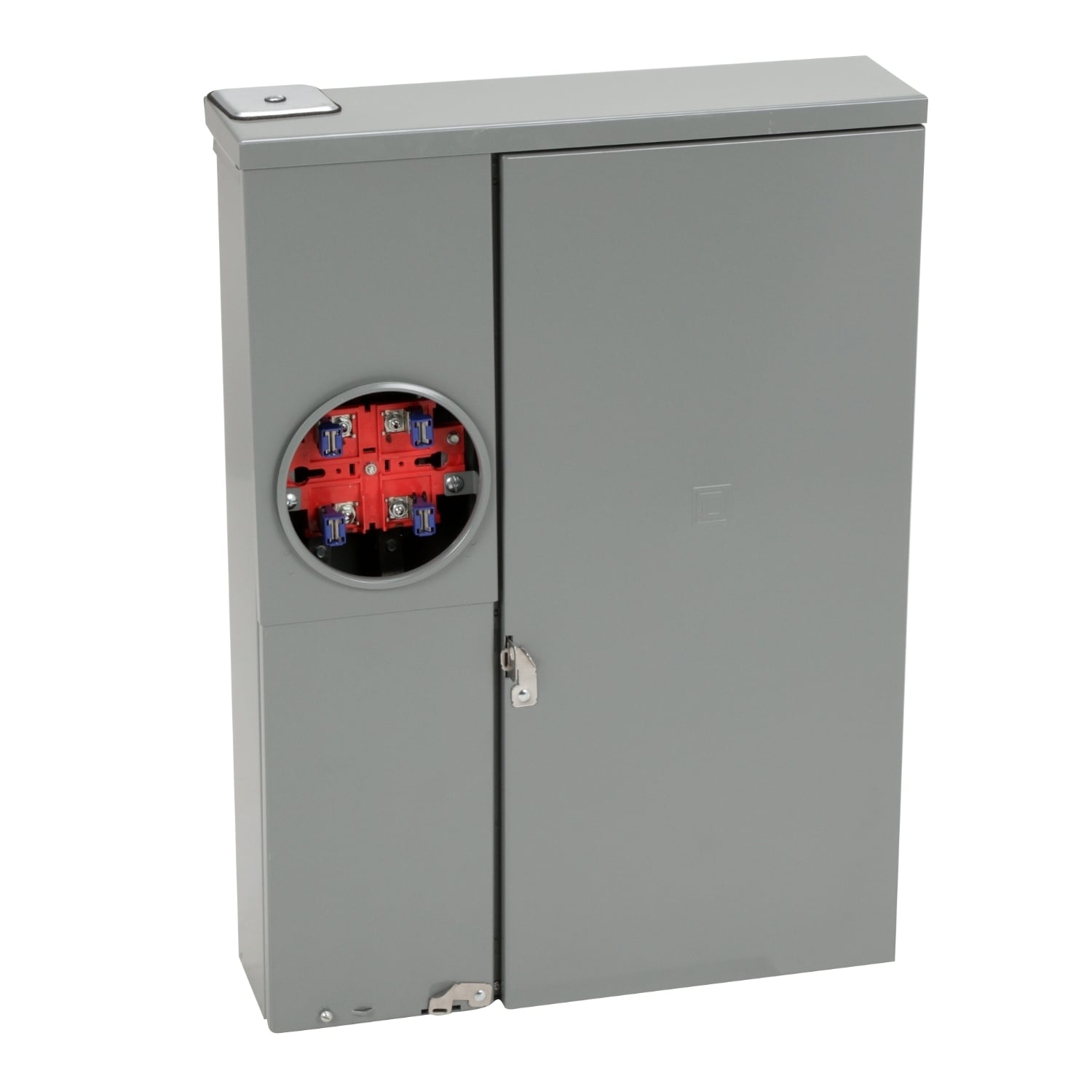

SC12L200S Homeline Meter Main, CSED, 200 Amp, 1 Phase, Ringed, No Bypass, OH, UG, Surface

MFR:
Schneider Electric
MFR #:
SC12L200S
UPC:
785901377306
Item #:
80126

Availability

Location Available Qty
Available Available to Order

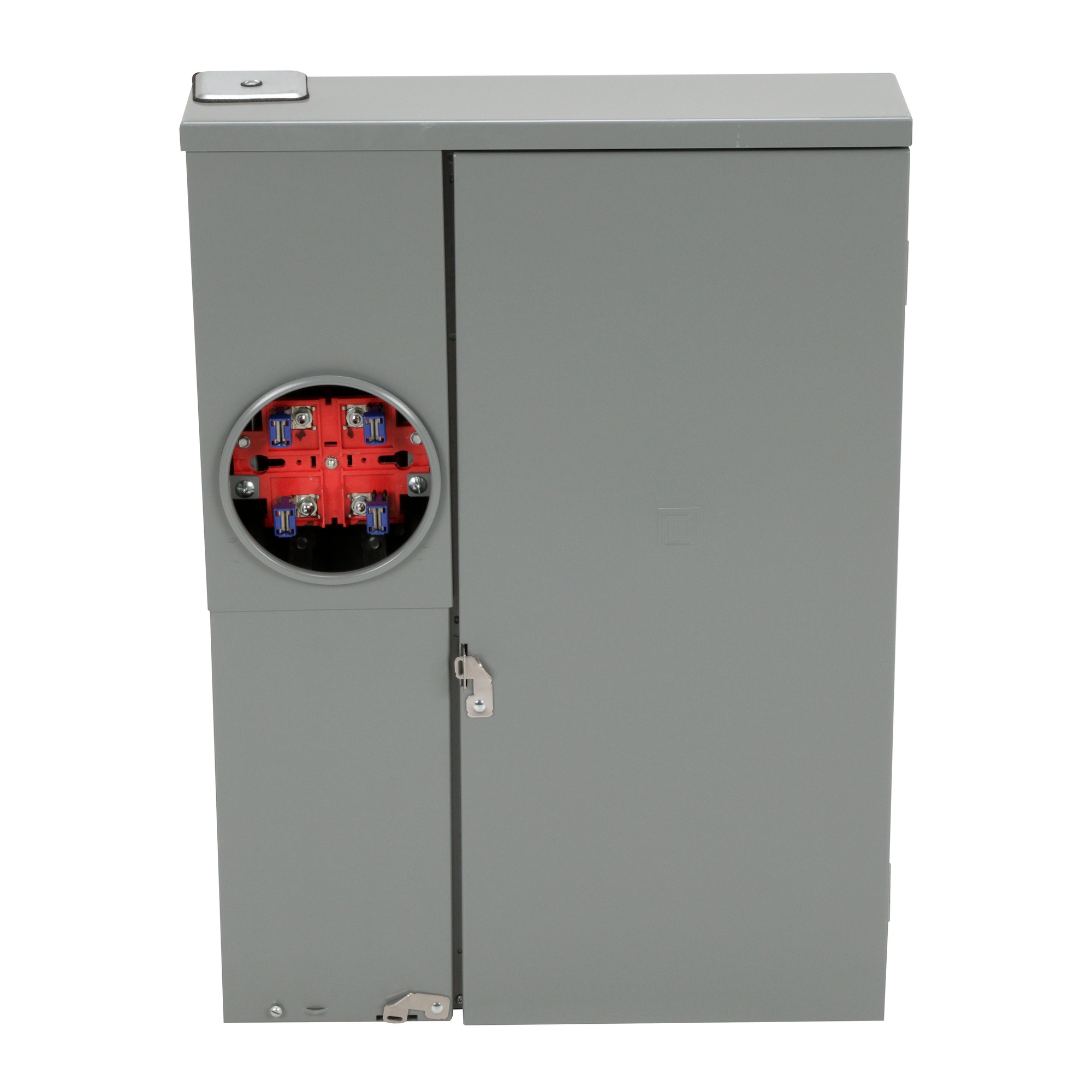

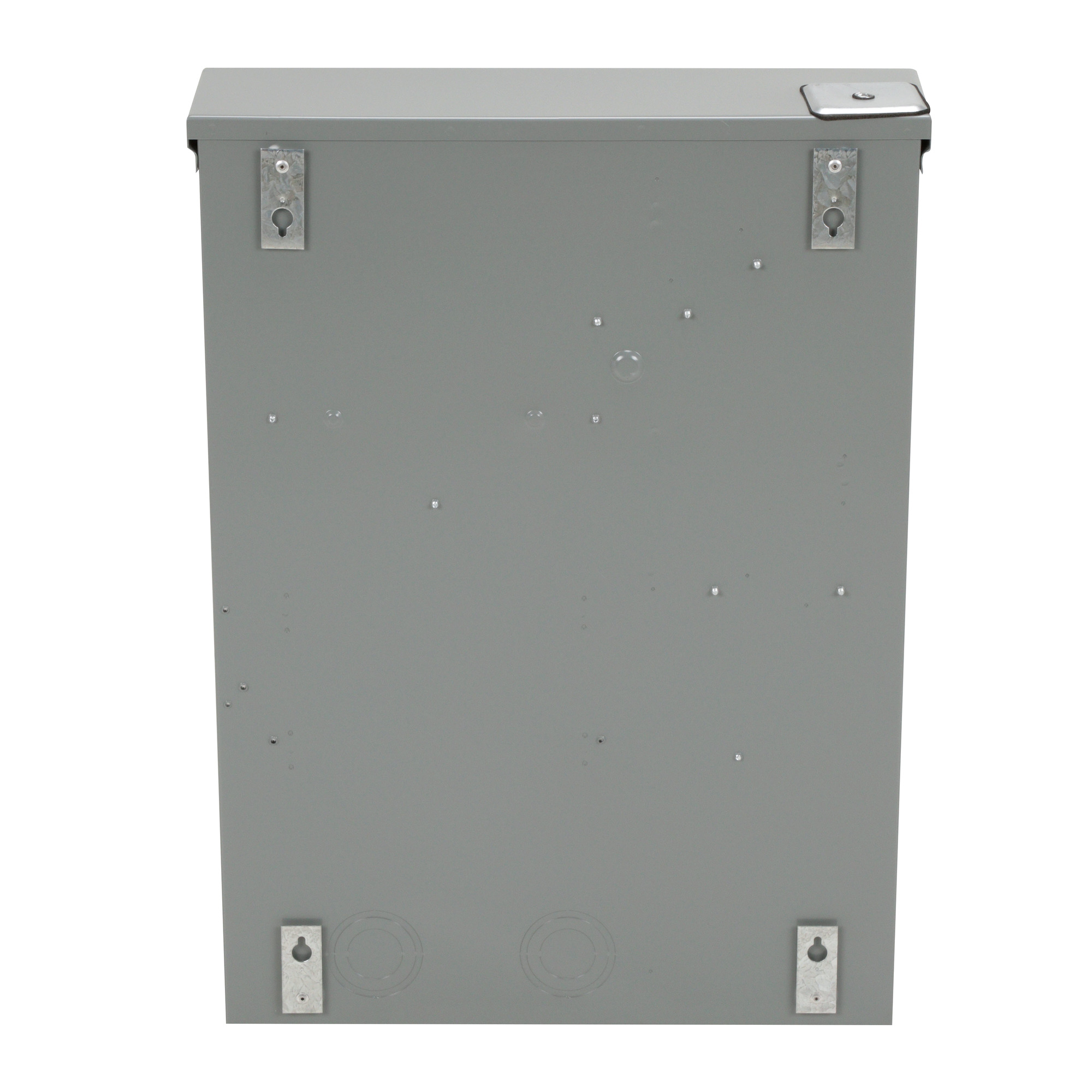

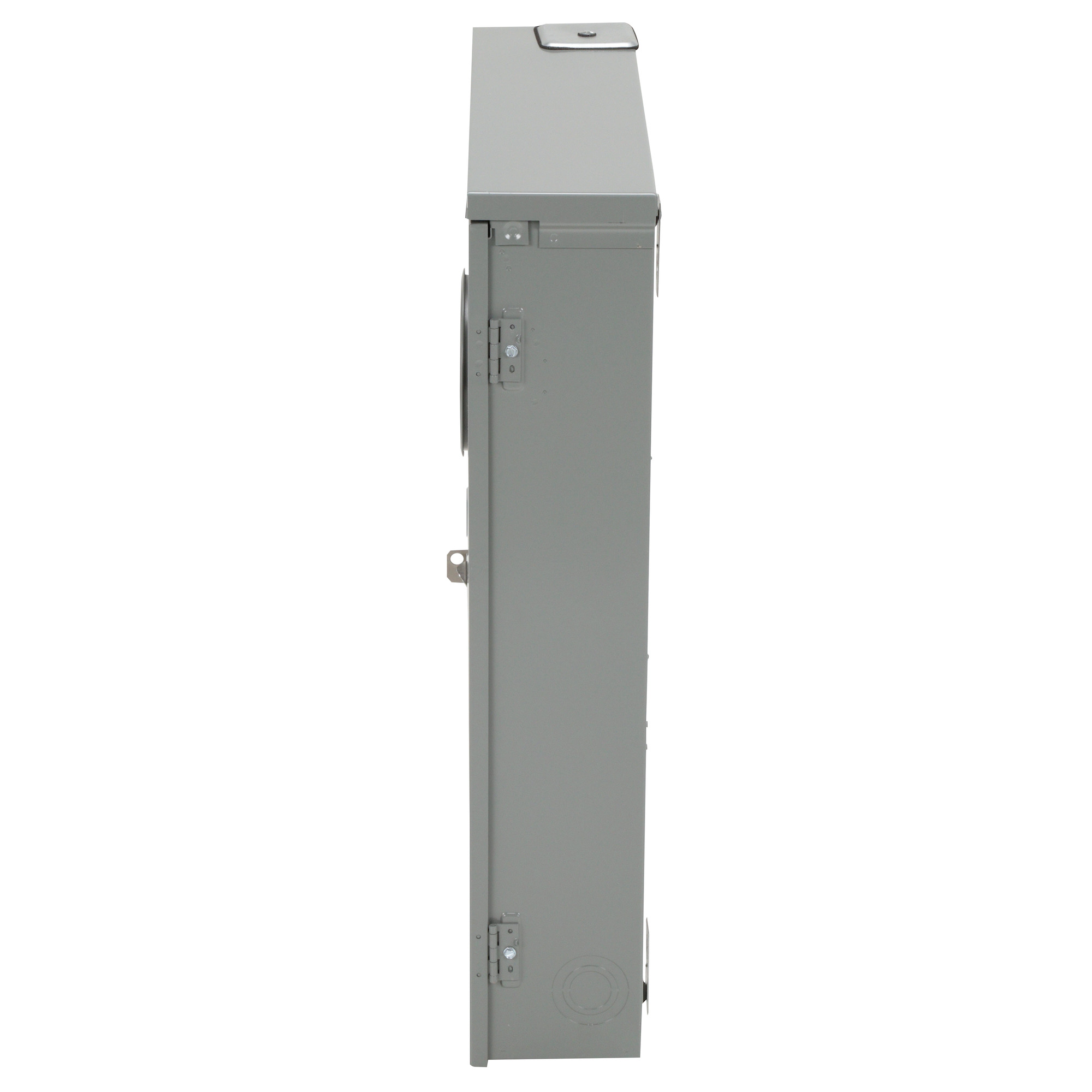

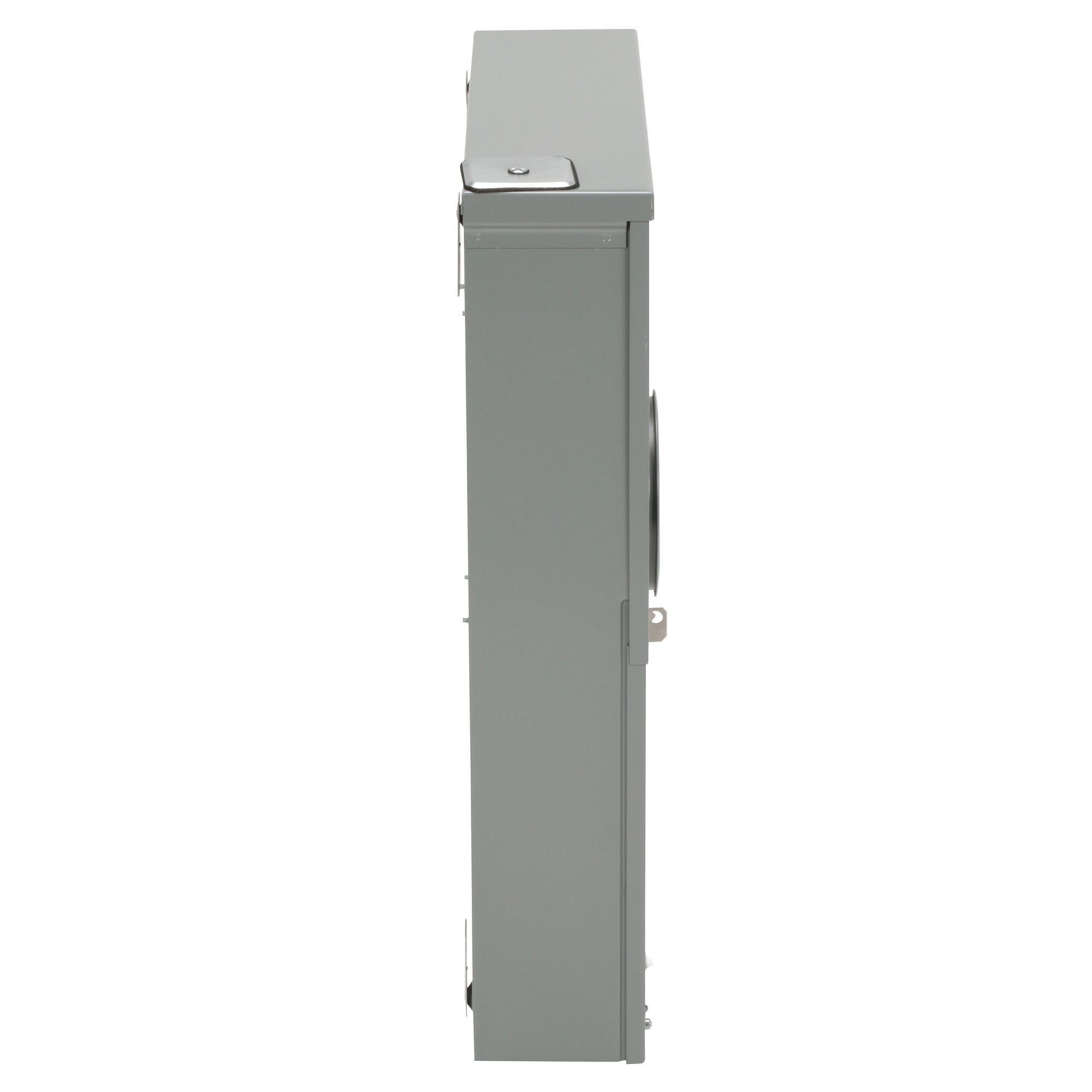

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline combination service entrance meter main unit has a ringed meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect is for six HOM circuit breakers with a maximum rating of 200 A. Circuit breakers are ordered separately. Device has a 10 kA short circuit current rating. Load center has no spaces. This unit has a NEMA 3R surface mounting enclosure that is 29.50 inches tall, 21.50 inches wide and 5.80 inches deep. The line side lugs will accept 4 AWG to 250 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.

Manuals and Documentation
Catalog Number SC12L200S
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type No Bypass
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361767&lang=en-us
UPC 785901377306
GTIN 00785901377306
Width 21.5
Width UOM Inch
Height 29.5
Height UOM Inch
Depth 5.8 IN
