Square D

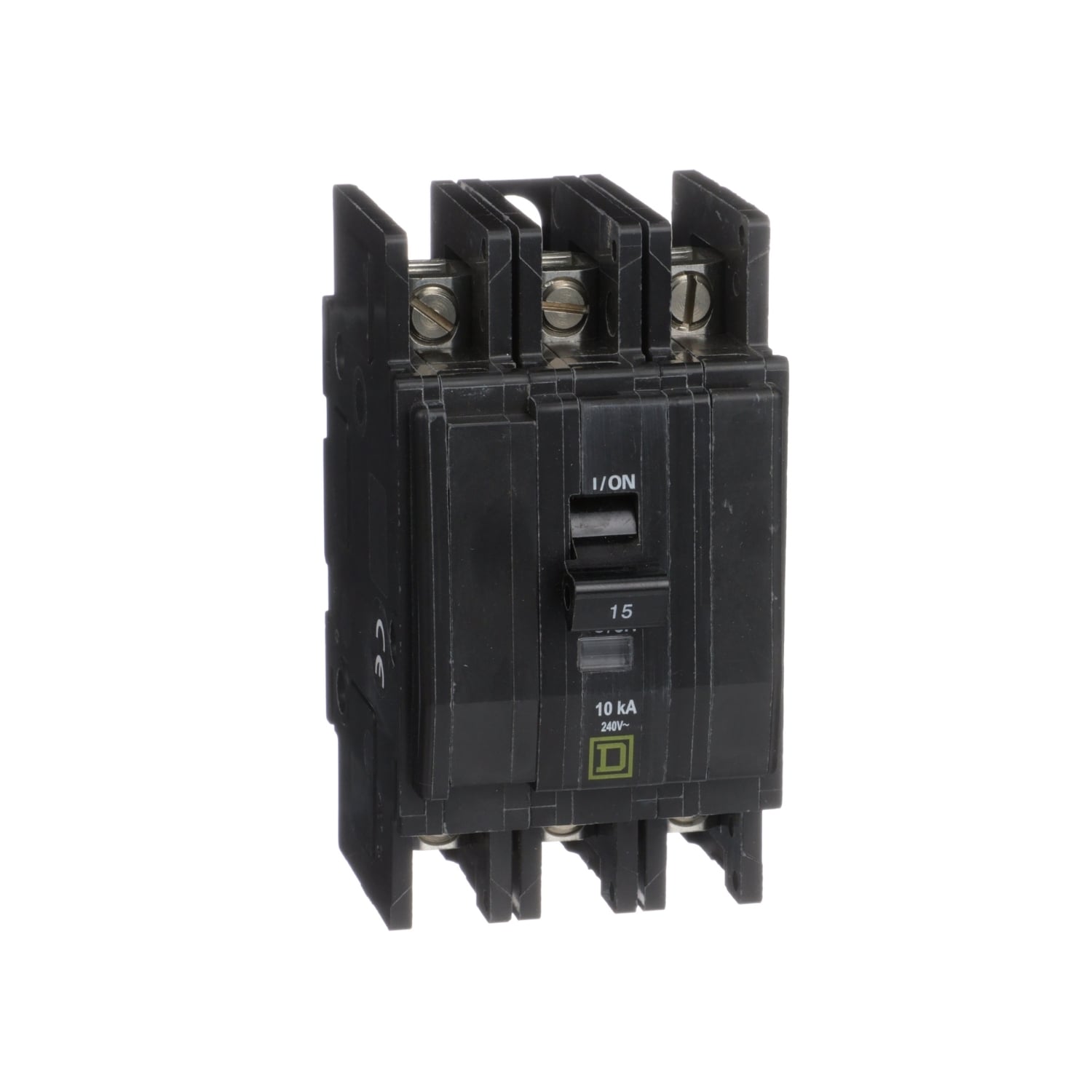

QOU315B Type QOU Standard Miniature Circuit Breaker, 240 V AC, 15 A, 10 kA at 240 V AC, 5 kA at 48 VDC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
QOU315B
UPC:
785901121138
Item #:
800438

Availability

Location Available Qty
Available Available to Order
$442.13 each

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. Distributes in a Bulk packing.

Manuals and Documentation
Catalog Number QOU315B
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application HACR rated
Connection Slotted box lugs, line side;slotted box lugs, load side;AWG 14...AWG 2 aluminium/copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402725&lang=en-us
UPC 785901121138
GTIN 00785901121138
Item Type Miniature circuit-breaker
Width 2.250000000000000
Width UOM Inch
Height 4.050000000000000
Height UOM Inch
Depth 2.95 IN
Voltage Rating 120/240 V AC;240 V AC;120 V AC;48 V DC
