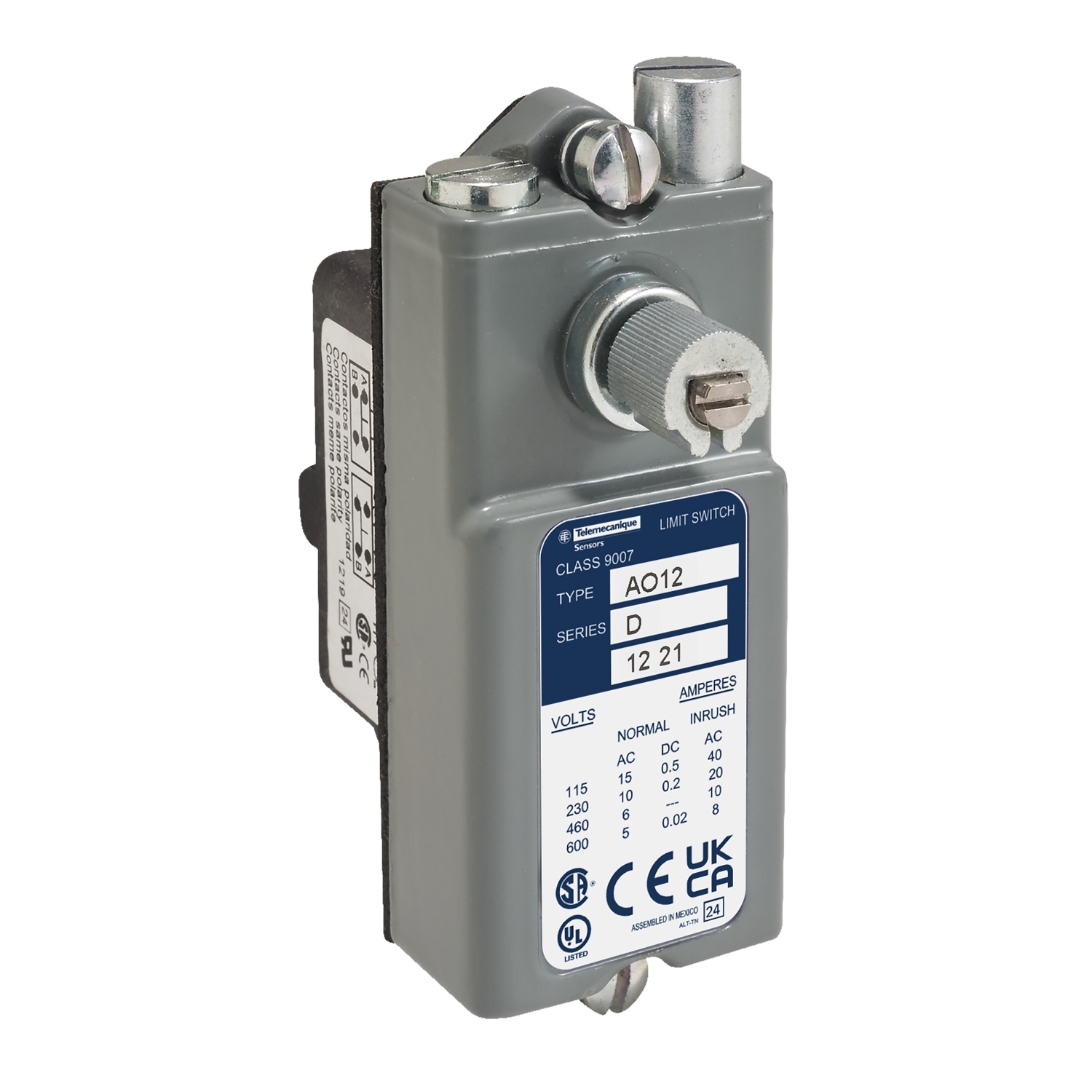

Limit switch, 9007, snap 600 VAC 15amp ao +options
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007AO18
- UPC:
- 785901807612
- Item #:
- 800197
Limit switch, 9007, snap 600 VAC 15amp ao +options
- MFR #:
- 9007AO18
- UPC:
- 785901807612
- Item #:
- 800197
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$884.45
each
SNAP SWITCH 600VAC 15AMP AO +OPTIONS
Manuals and Documentation
| Catalog Number | 9007AO18 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | From left convertible to right;CCW convertible to CW;Lateral approach, 1 direction programmable;Snap action |
| Actuator | Cast zinc;Rotary head;Spring return without operating lever cast zinc |
| Amperage Rating | 10 |
| Application | Precision |
| Connection | 1-2 screw-clamp terminals AWG 22...AWG 12) |
| Contact Configuration | Form ZZ;2(NC-NO) DPDT-DB |
| Enclosure | NEMA 1 NEMA TYPE 250 |
| Mounting | Open Type;By The Body |
| Number of Poles | 2 |
| Special Features | FIXED,METAL |
| Standard | IP20 IEC 60529 |
| UPC | 785901807612 |
| GTIN | 00785901807612 |
| Item Type | Limit switch |
| Size | 1.38 |
| Operating Temperature | 0-185 A Degrees F |
| Voltage Rating | 0.6 A 600 V AC, B600 NEMA RATING DESIGNATION-0.75 A 480 V AC, B600 NEMA RATING DESIGNATION-1.5 A 240 V AC, B600 NEMA RATING DESIGNATION-3 A 120 V AC, B600 NEMA RATING DESIGNATION-0.1 A 250 V DC-0.2 A 125 V DC |
