Telemecanique

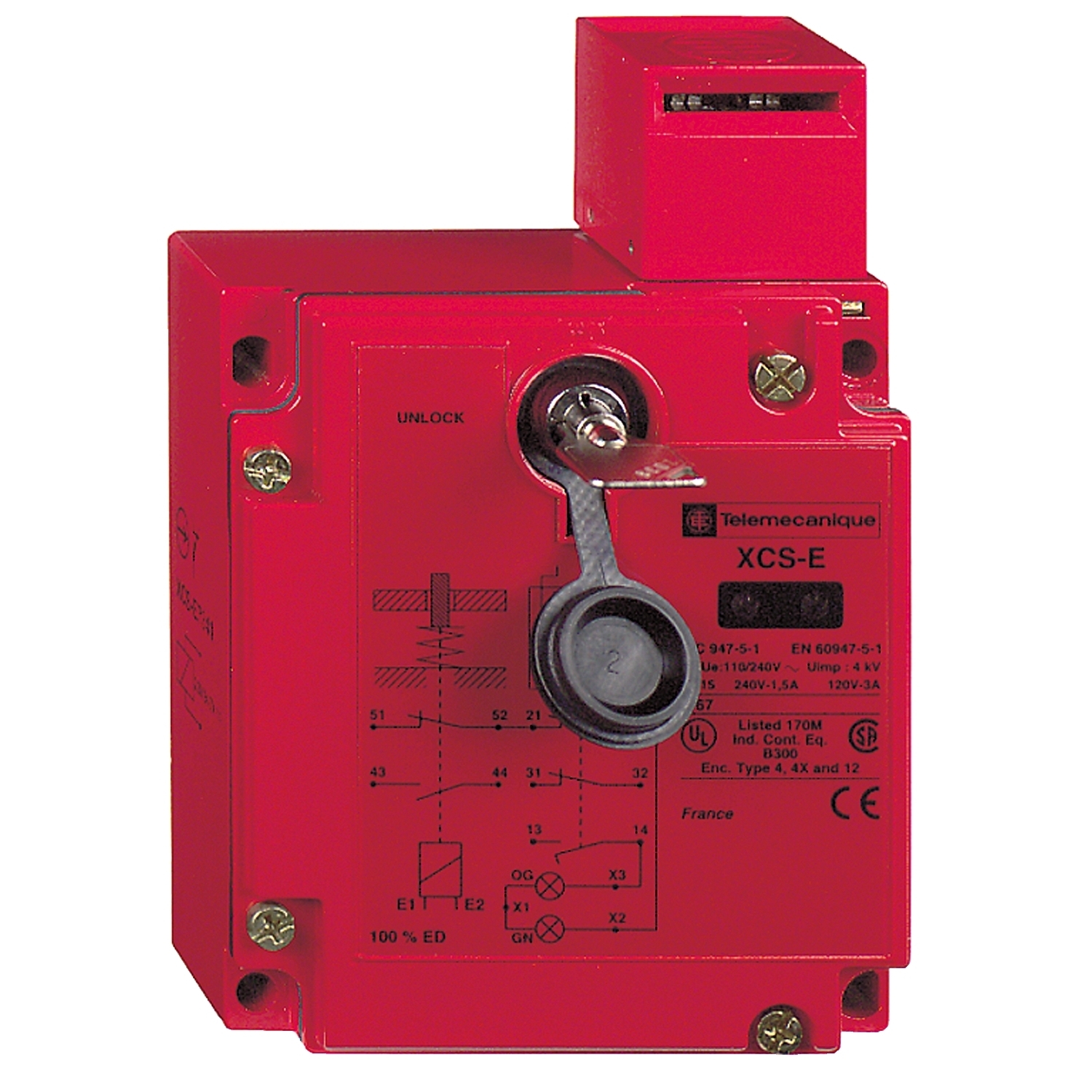

XCSE5311 XCSE Rectangular Safety Interlock Switch, 24/48 V DC, 6 A, 3 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSE5311
UPC:
785901105541
Item #:
79400

Availability

Location Available Qty
Available Available to Order
$840.42 each

This XCSE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a robust red coated rectangular Zamak body with 2 x Pg 13.5 cable gland entries, allowing for flexible installation. It has 2 normally open and 1 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally open and 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSE5311
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Slow-break, break before make
Actuator KEY
Amperage Rating 6
Application KEY OPERATED TURRET HEAD
Connection Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
Contact Configuration 1 NC + 2 NO
Enclosure NEMA 4/4X/12 - IP67
Number of Poles 3
Operating Cycles 10 CYC/MN FOR MAXIMUM DURABILITY
Special Features for guard open/guard closed and locked 2 LEDs (green or orange);Locking on de-energisation and unlocking on energisation of solenoid;Overvoltage protection signalling circuit
Standard 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,EN/IEC 60204-1-EN 1088/ISO 14119-EN/ISO 12100-UL 508-EN/IEC 60947-5-1-CSA C22.2 NO 14,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,UL-CSA,CLASS I EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859152&lang=en-us
UPC 785901105541
GTIN 03389110719536
Item Type Safety switch
Size 1.73
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -25-40 A Degrees C
Voltage Rating 24 V - 20...10 %
