Telemecanique

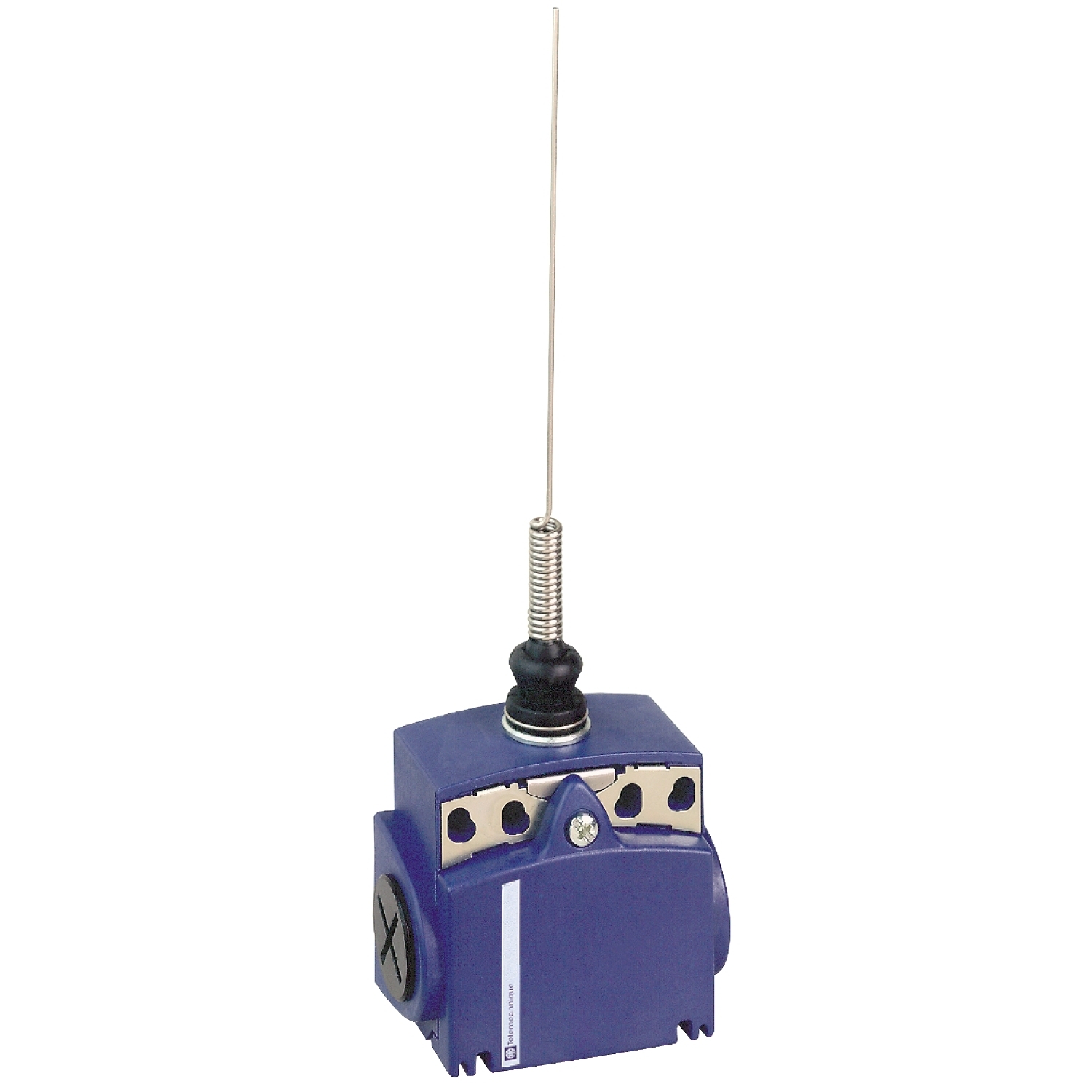

XCKT2106N12 OsiSense XC Standard Format Fixed Limit Switch, 250 V DC/240 V AC, 10 A, Cats Whisker Spring Return Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKT2106N12
UPC:
785901269595
Item #:
793832

Availability

Location Available Qty
Available Available to Order
$253.10 each

limit switch XCKT - cat's whisker - 1NC+1NO - snap - 1/2NPT

Manuals and Documentation
Catalog Number XCKT2106N12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Multi-directional approach;Snap action;By any moving part
Actuator Spring return cat''s whisker
Amperage Rating 10
Application COMPACT VARIABLE
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4/6/12/13 IP66/67
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA C22.2 NO 14-EN 60204-1-IEC 60204-1-EN 60947-5-1-UL 508-IEC 60947-5-1,CSA-CCC-UL,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,CLASS II IEC 61140-CLASS II NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857456&lang=en-us
UPC 785901269595
GTIN 03389110305685
Item Type Limit switch
Size 2 ENTRIES TAPPED FOR 1/2 NPT CABLE GLAND,COMPACT,FIXED
Operating Temperature -25-70 A Degrees C
Voltage Rating 240VAC/250VDC
