Telemecanique

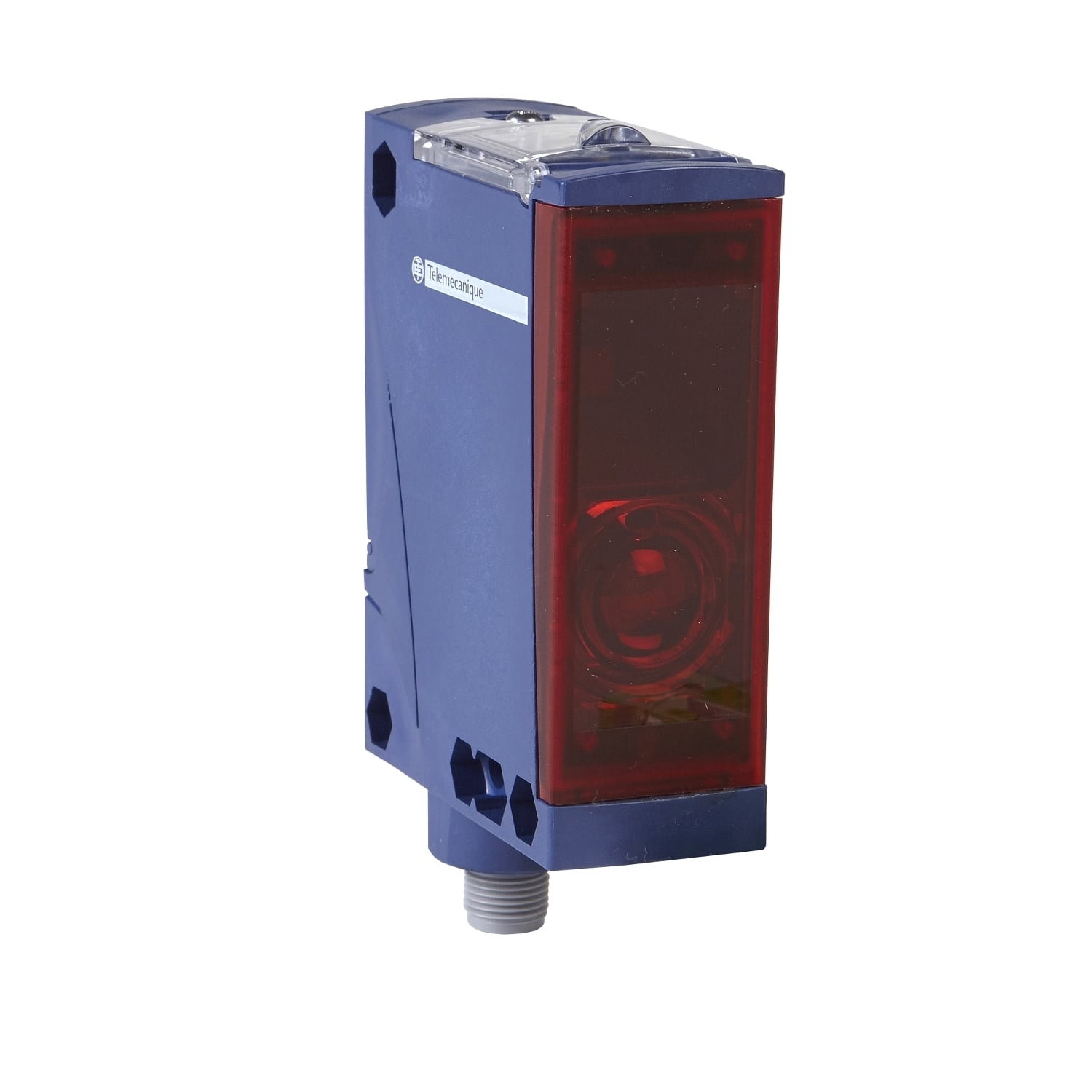

XUX8ARCTT16 OsiSense XU Singlemode Compact Photoelectric Sensor, 2 m, Infrared Sensing Beam, 25 ms Response, 1NO-1NC Contacts/Programmable Output

MFR:
Telemecanique Sensors
MFR #:
XUX8ARCTT16
Item #:
793054

Availability

Location Available Qty
Available Available to Order
$478.97 each

This photo-electric sensor is part of the XU range. It is a compact design, 92mm x 77mm, plastic sensor, with ISO 16 cable gland terminal connections. It is a diffuse system sensor with adjustable background suppression, with infrared transmission. 2m nominal sensing distance with high accuracy. 5-wire AC or DC, with NO or NC programmable function. This sensor is suitable for wrapping and outer wrapping applications.

Manuals and Documentation
Catalog Number XUX8ARCTT16
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Long sensing distance with high accuracy
Connection Screw-clamp terminals, 1 x 0.75...1 x 1.5 mm²
Enclosure IP30 (WITH COVER OPEN) CONFORMING TO IEC 60529-IP65 (DOUBLE INSULATION) CONFORMING TO IEC 60529-IP67 (DOUBLE INSULATION) CONFORMING TO IEC 60529,PC
Output 1 NO or 1 NC programmable;Discrete;Relay
Sensing Range 2-2 M,> 3.28...16.4 FT (> 1...5 M)
Special Features Supply on 1 LED green);instability 1 LED red);output state 1 LED yellow)
Standard CE-CSA-UL,IP30 IEC 60529 WITH COVER OPEN)-IP65 IEC 60529 DOUBLE INSULATION)-IP67 IEC 60529 DOUBLE INSULATION)
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7052780&lang=en-us
GTIN 03389119039901
Item Type General purpose single mode;Diffuse with background suppression;Compact 92 x 71;Photo-electric sensor
Size COMPACT 92 X 71
Operating Temperature -25-55 A�C
Voltage Rating 24...240 V AC/DC
