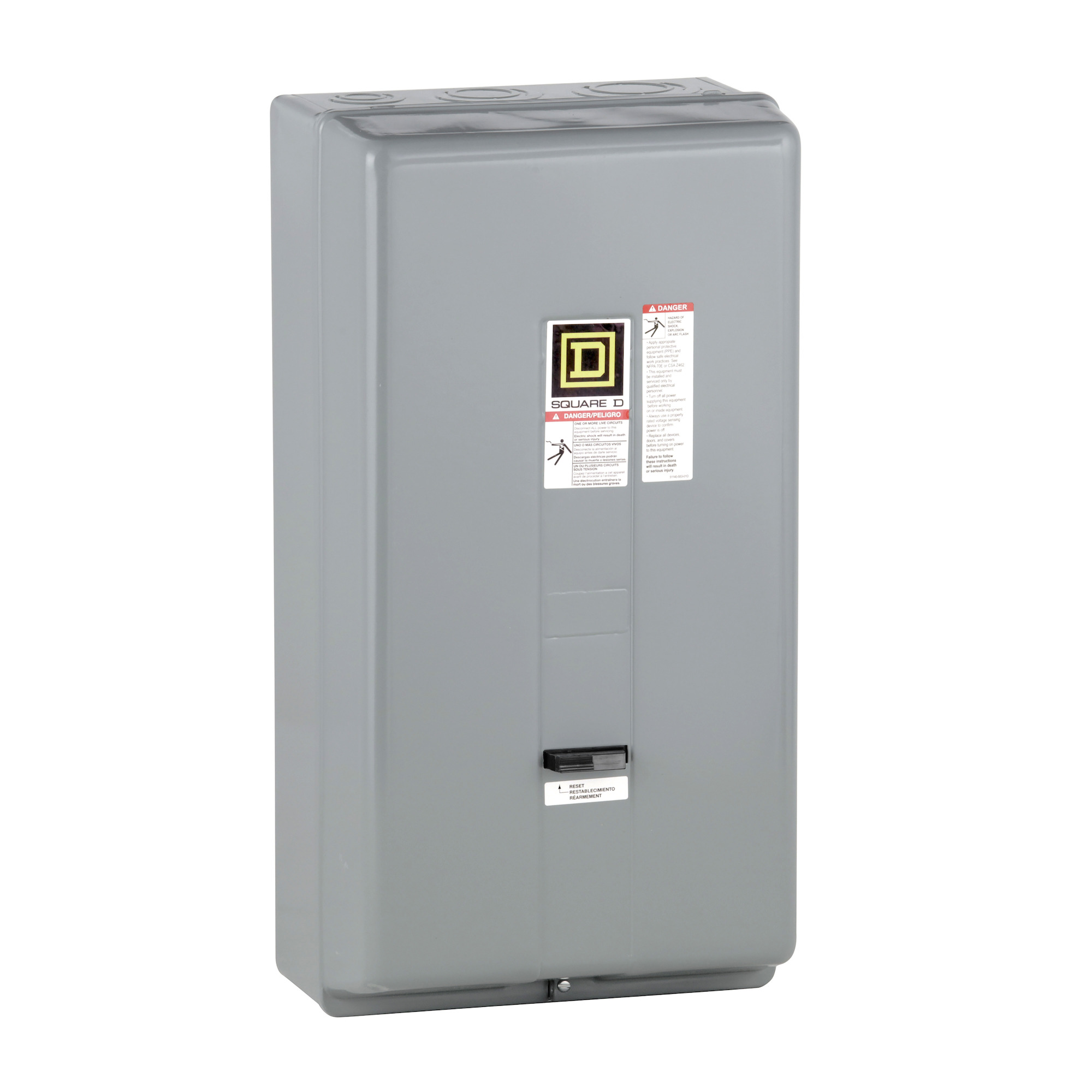

8536SEG6V02S Type S Non-Reversing Starter, 110 to 120 VAC V Coil, 2 Poles, NEMA 1 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SEG6V02S
- UPC:
- 785901164944
- Item #:
- 79182
8536SEG6V02S Type S Non-Reversing Starter, 110 to 120 VAC V Coil, 2 Poles, NEMA 1 Enclosure
- MFR #:
- 8536SEG6V02S
- UPC:
- 785901164944
- Item #:
- 79182
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This is a 2 pole non-reversing starter with extra capacity. This motor starter has single phase ratings of 7.5 HP at 115 VAC and 15 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type CC thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 12/3R dusttight and driptight industrial use enclosure is used to protect this starter. Enclosure is 31.50 inches tall, 18.16 inches wide and 9.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8536SEG6V02S |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901164944 |
| GTIN | 00785901164944 |
