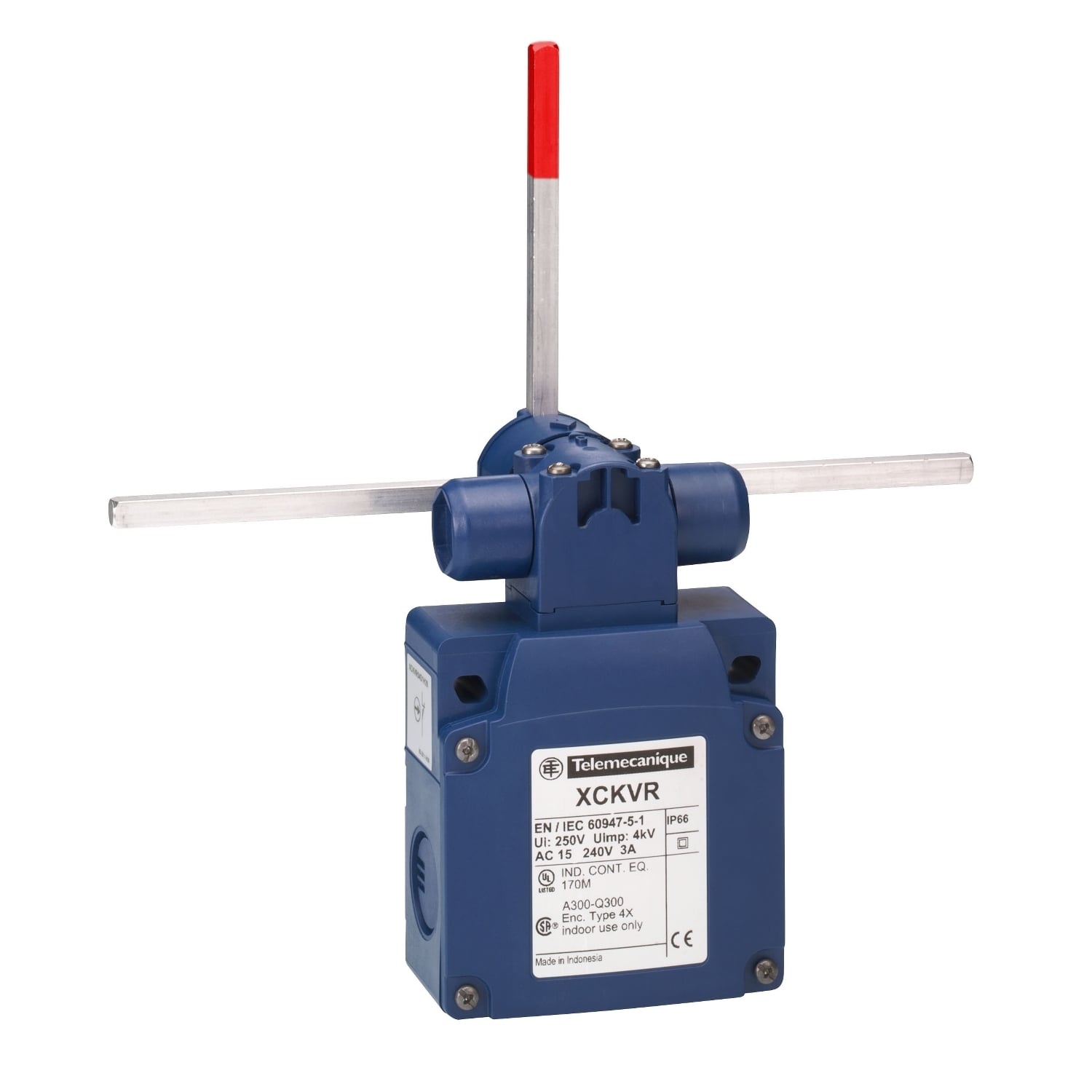

XCKVR54D2H29 OsiSense Fixed Limit Switch, 10 A, Rod Lever Actuator, 4NC Contact, 4 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKVR54D2H29
- Item #:
- 787225
XCKVR54D2H29 OsiSense Fixed Limit Switch, 10 A, Rod Lever Actuator, 4NC Contact, 4 Poles
- MFR #:
- XCKVR54D2H29
- Item #:
- 787225
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$497.13
each
limit switch XCKVR - reverse head stay put crossed rods - 2x(2 NC) - slow - M20
Manuals and Documentation
| Catalog Number | XCKVR54D2H29 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Slow-break, staggered;By any moving part |
| Actuator | Stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Application | For hoisting and mechanical handling applications |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 2 x (2 NC) |
| Mounting | By The Body |
| Number of Poles | 4 |
| Special Features | FIXED,PLASTIC |
| Standard | 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN EN/IEC 60068-2-27,CCC-UL-CE-CSA,EN/IEC 60947-5-1-UL 508-CSA C22.2 NO 14,IK04 EN 50102,IP65 EN/IEC 60529,CLASS II IEC 60536 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=150036351&lang=en-us |
| GTIN | 03389119077507 |
| Item Type | Limit switch |
| Size | 2.60 |
| Operating Temperature | -25-70 A Degrees C |
