Telemecanique

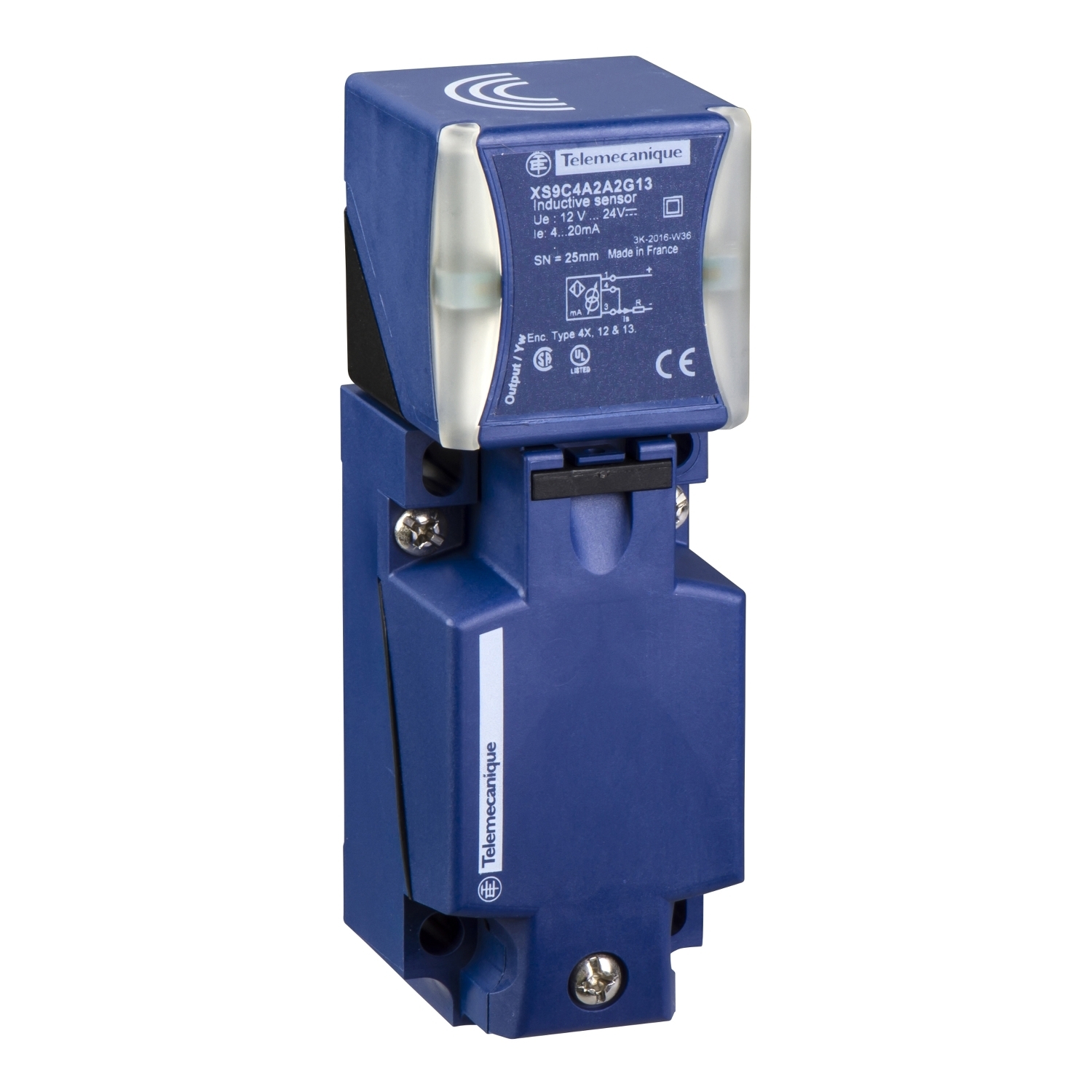

XS9C4A2A2G13 OsiSense XS Fixed Proximity Sensor, Inductive, Analog Output, 15 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS9C4A2A2G13
Item #:
785648

Availability

Location Available Qty
Available Available to Order
$327.62 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a 40mm x 40mm x 117mm sensor, non flush mountable in metal. It features a plastic case with a plug-in 5 position turret head and a PG 13.5 cable entry. It has a sensing distance of 25mm. Two-wire DC, 12V to 24V, with overload and short-circuit protection, analogue output signal 4mA to 20 mA.

Manuals and Documentation
Catalog Number XS9C4A2A2G13
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connector Screw-clamp terminals, 4 x 1.5 mm²
Enclosure PBT
Indicator Output state 1 LED yellow)
Material Plastic
Mounting Flush
Sensing Range 25 MM,> 0.59...1.57 IN (> 15...40 MM)
Sensor 40 MM,40 MM,INDUCTIVE PROXIMITY SENSOR
Special Features PLASTIC
Standard IP67 conforming to IEC 60529;IP65 conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=150037019&lang=en-us
GTIN 03389119058476
Item Type Inductive proximity sensor;Form 40 x 40 x 117
Operating Temperature -25-70 A Degrees C
