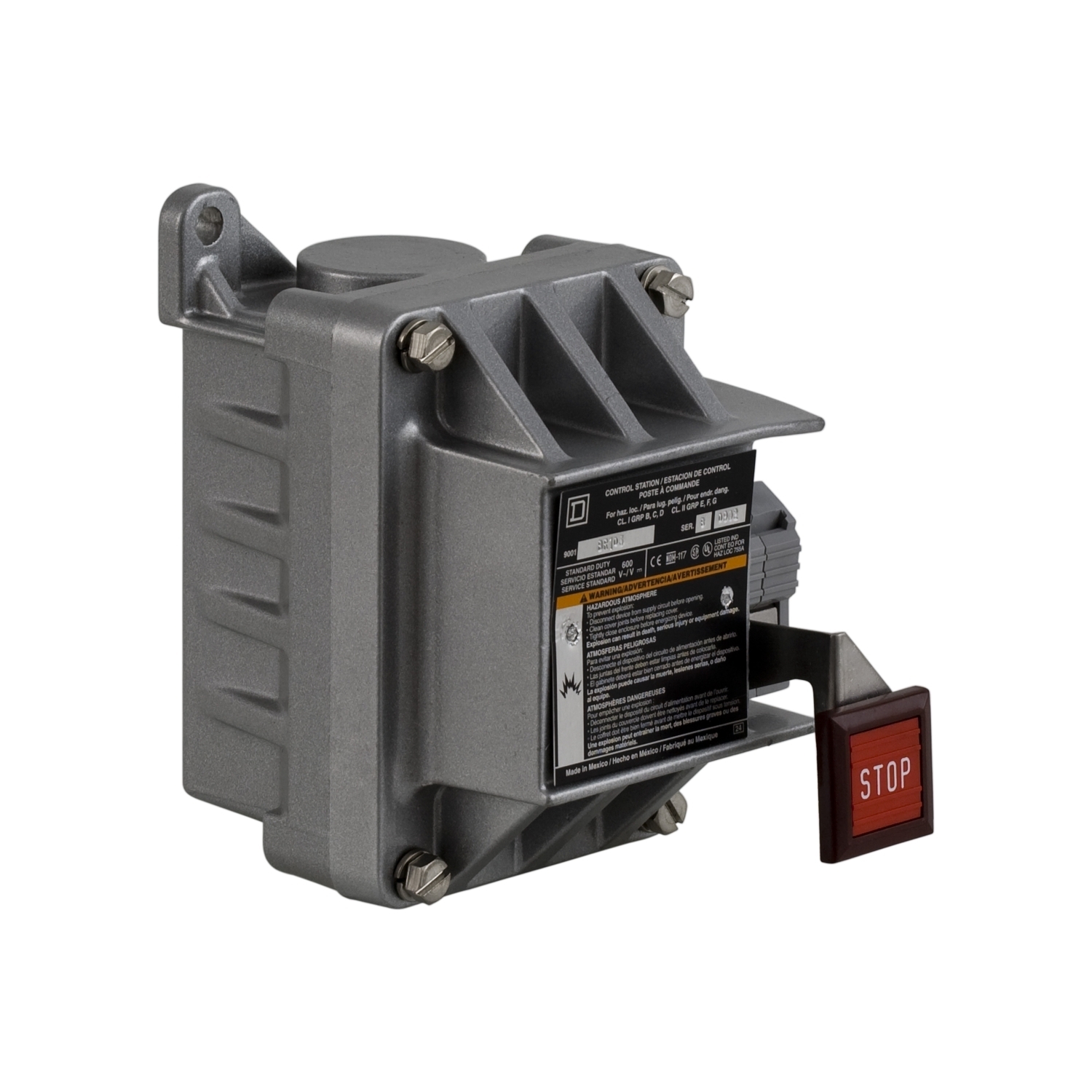

9001BR104 Type BR Control Station, 600 V AC, 5 A, 1NC Contact, 1 Operators, NEMA 7/9 NEMA Rating
- MFR:
- Schneider Electric
- MFR #:
- 9001BR104
- UPC:
- 785901600855
- Item #:
- 783832
9001BR104 Type BR Control Station, 600 V AC, 5 A, 1NC Contact, 1 Operators, NEMA 7/9 NEMA Rating
- MFR #:
- 9001BR104
- UPC:
- 785901600855
- Item #:
- 783832
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$391.91
each
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the momentary push button inside. It has a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Manuals and Documentation
| Catalog Number | 9001BR104 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Material | Cast zinc |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460127&lang=en-us |
| UPC | 785901600855 |
| GTIN | 00785901600855 |
