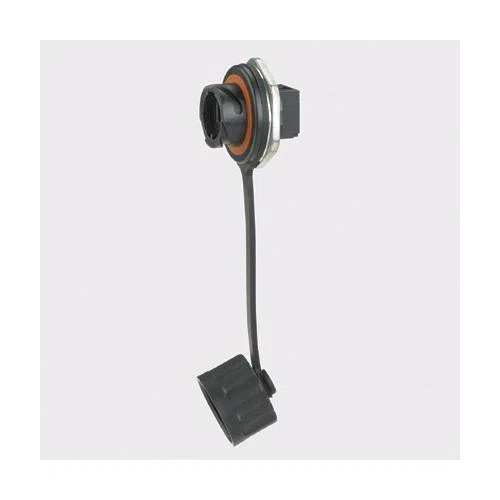

IAEBH5E IndustrialNet 8-Position 8-Wire TG Style Unshielded Bulkhead Connector, Cat 5e RJ45 Module, 1 Port, Copper, Black
- MFR:
- Panduit
- MFR #:
- IAEBH5E
- UPC:
- 074983815975
- Item #:
- 783348
IAEBH5E IndustrialNet 8-Position 8-Wire TG Style Unshielded Bulkhead Connector, Cat 5e RJ45 Module, 1 Port, Copper, Black
- MFR #:
- IAEBH5E
- UPC:
- 074983815975
- Item #:
- 783348
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
8-position, industrial connectors shall be applicable for use in manufacturing environments and shall meet/exceed the ANSI/TIA-568-C.2 standard for Cat 5e performance requirements. Bulkhead RJ45 jack and plug shall incorporate an IP67/68 rated seal and shall be designed to provide protection from dust and temporary immersion in water typically found in harsh industrial environments. Tethered protective cap shall ensure IP67/68 protection of the connector and plug in the unmated condition. Secondary seals on both the connector and plug shall provide an additional environmental barrier. Termination to a 4-pair 24 AWG 100 Ohm twisted pair cable shall not require the use of a punch down tool. An IP67/68 rating shall be achieved when mated with an IP67/68 and NEMA UL type 12/6/6P/4X industrial grade, bayonet style patch cord.
Manuals and Documentation
Features
- Eliminates the potential for module rotation
- Connector mounting nut holds bulkhead safely and securely from inside of enclosure
- Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord
- Plug contact plated with 50 micron-in of gold
- Provides positive reinforcement during mated condition rated to 100 mating cycles
- Patented Giga-TX™ technology optimizes performance by reducing conductor untwist to less than 1/8 in
- Speeds installations and places no impact on critical components for maximum reliability
- Harsh industrial environmental conditions
- The UTP bulkhead connector features a RJ45 jack
- The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water
- It terminates to a four-pair, 24 AWG, 100 Ohm twisted pair cable and does not require a punchdown tool
- The IndustrialNet™ Cat 5e UTP bulkhead eight-position connector with protective cap is ideal in manufacturing environment
- Bulkhead anti-rotation washer
- Connector mounting nut holds bulkhead safely and securely from inside of enclosure
- Robust construction plug contact plated with 50 micro inch of gold
- Bayonet style interface provides positive reinforcement during mated condition, rated to 100 mating cycles
- Protective cap maintains IP67/IP68 seal during unmated connection
- Utilizes patented Giga-TX™ technology
- Forward motion termination
- Industry standard RJ45 interface
| Manufacturer Part Number | IAEBH5E |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983815975 |
| EAN | 0074983815975 |
| Country Of Origin | US |
| Color | Black |
| Dimensions | 1.49 in W x 1.67 in D x 5.33 in H |
| Material | Copper |
| Mounting Type | Panel |
| Type | 8-Position 8-Wire TG Style Unshielded |
| Alternative Part Number | 9565386 | 9565374 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D standards at swept frequencies 1 to 100 MHz, Meets all ODVA Ethernet/IP^ electrical and mechanical performance requirements, Protects and seals connections agai | ARRA Compliant | Buy American Act Compliant | IEC 60529-2004 | IEC 60603-7 | IEEE 802.3af/802.3at | ODVA Approved | PoE Compliant | RoHS Compliant | TIA-1096-A | CSA Approved |
| Application | Metal Processing, Welding and Chemical Batch Processing Applications |
| Module Type | Cat 5e RJ45 |
| Number Of Ports | 1 |
