Schneider Electric

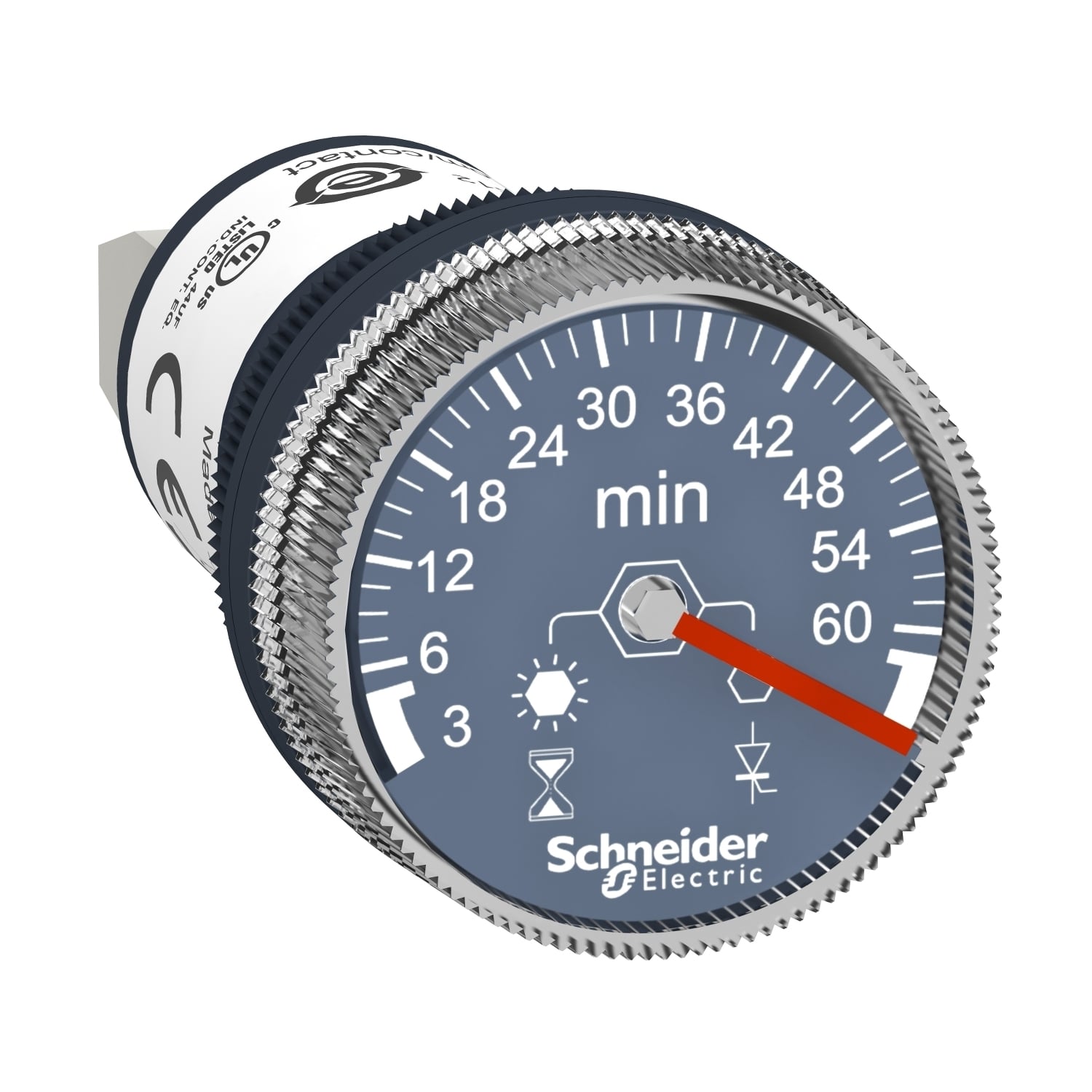

XB5DTGM5 Harmony Mono-Function Timer, 3 to 60 min Setting, 100 to 230 V AC/DC

MFR:
Schneider Electric
MFR #:
XB5DTGM5
Item #:
780025

Availability

Location Available Qty
Available Available to Order
$38.81 each

This Harmony XB5, monolithic analog timer can be set for timing intervals between 3 to 60 minutes and is supplied with a 100V to 240V AC/DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.

Manuals and Documentation
Catalog Number XB5DTGM5
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin France
Made in USA No
Connection Screw terminals 1 x 4 mm² IEC 60947-1;screw terminals 1 x 2.5 mm² IEC 60947-1
Special Features LED green, steady timing in progress;LED, off no timing in progress and output relay energised
Standard CE;UL Listed;UL 508;IEC 61812-1;0.15 mm 10-60 Hz)IEC 60068-2-6;2 gn 60-150 Hz)IEC 60068-2-6;+/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27;Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2;electromagnetic emission class B conforming to IEC 55011;IP65 front: conforming to IEC 60529;IP20 back: conforming to IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=447150189&lang=en-us
GTIN 03606481205537
Item Type Timer
Timing Range 3...60 min
