Switch disconnector,TeSys Control,for ON/OFF,20A(VN20),?22.5 fixing,for mountingfor mounting on door
Switch disconnector,TeSys Control,for ON/OFF,20A(VN20),?22.5 fixing,for mountingfor mounting on door
| Location | Available Qty |
|---|---|
| Available | Available to Order |

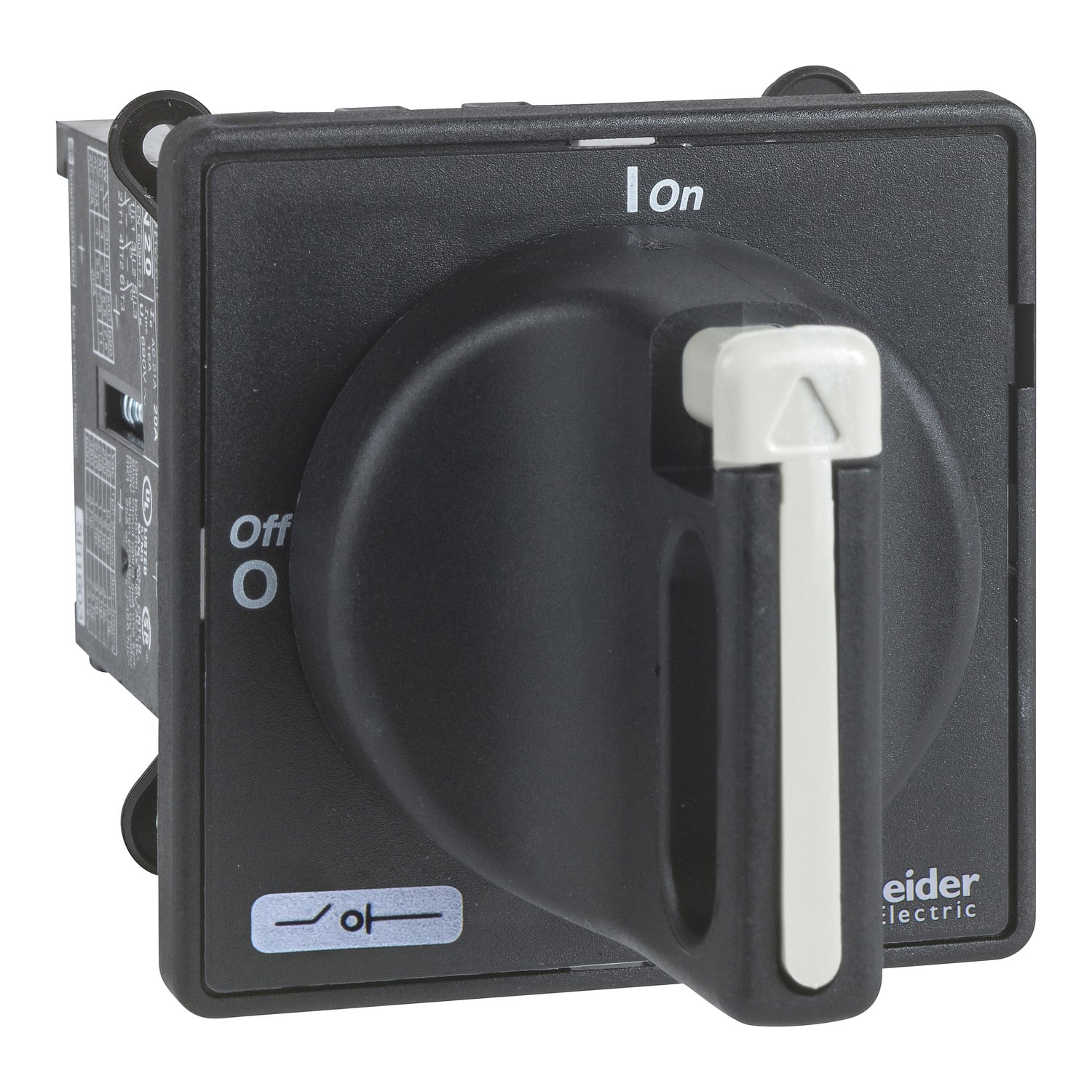

VBDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. For door mounting with a single fixing, it provides a black handle with IP65 protection. VBDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body and a padlockable black & grey operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body VZ20 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
Manuals and Documentation
- Catalog Number
- VBDN20
- Manufacturer
- Schneider Electric
- Brand
- SCHNEIDER ELECTRIC
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Czech Republic
- Made in USA
- No
- Actuator
- Black;Rotary handle
- Connection
- Power circuit screw clamp terminals 4-4 mm² flexible - with cable end;power circuit screw clamp terminals 4-4 mm² solid
- Contact Configuration
- 3 NO
- Mounting
- Mounting Holes
- Number of Poles
- 3
- Special Features
- 1 to 3 padlocks 4-8 mm;Standard
- GTIN
- 03389110759891
- Item Type
- Switch disconnector
- Size
- 60 x 60 mm
