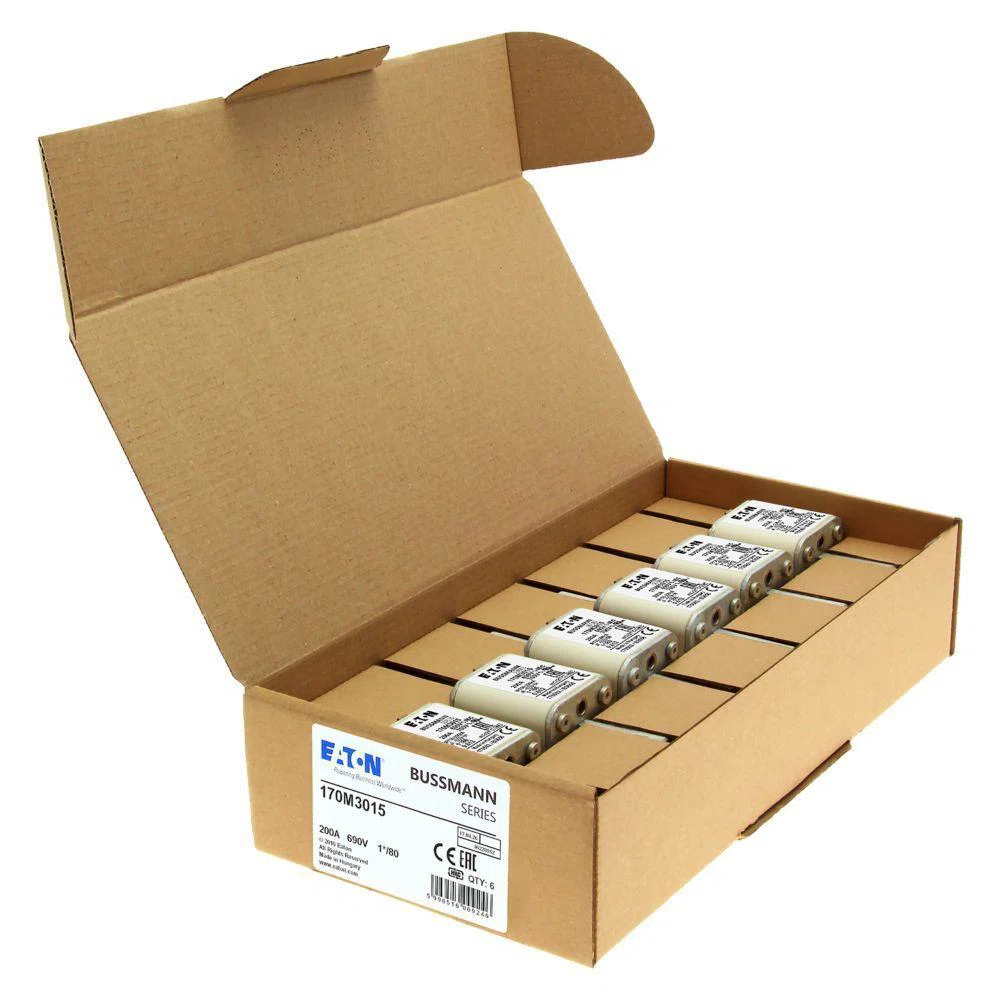

170M3015 Semi-Conductor High Speed Fuse, 200 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
- MFR:
- Eaton
- MFR #:
- 170M3015
- UPC:
- 051712799812
- Item #:
- 775878
170M3015 Semi-Conductor High Speed Fuse, 200 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
- MFR #:
- 170M3015
- UPC:
- 051712799812
- Item #:
- 775878
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$559.45
each
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 200 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, 104 mm L x 45 mm W x 58 mm H Body
Manuals and Documentation
Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Designated size 1
| Manufacturer Part Number | 170M3015 |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712799812 |
| EAN | 5027590443609 |
| Amperage Rating | 200 A |
| Mounting Type | DIN 43-653 Stud |
| Series | 170M |
| Type | Semi-Conductor |
| Voltage Rating | 690 V |
| Alternative Part Number | 10517874 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,IEC nominal ,UL Recognized ,Classificazione IEC ,UL Recognized ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,RoHS-compliant,CE-markering,Conforme a RoHS,Con marchio CE,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Marquage CE,Conformité RoHS |
| Application | Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power |
| Body Size | 104 mm L x 45 mm W x 58 mm H |
| Body Type | Square |
| Class | aR |
| Indicating Non Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Terminal Type | Blade End |
