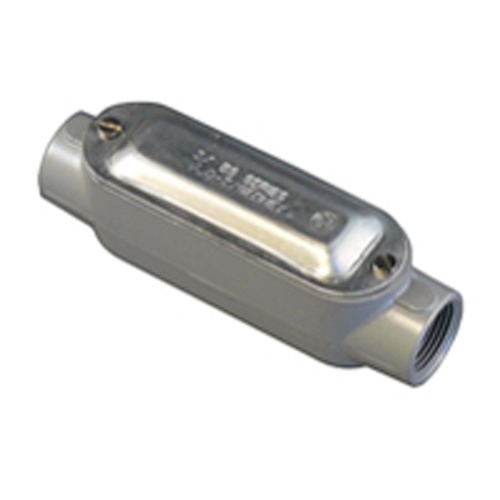

Type C Conduit Body with Cover & Gasket, 1 inch, Aluminum, Epoxy Powder Coated
MFR: Appleton Electric
MFR #: C-100ACGA
UPC: 781381826198
Item #: 775583
Type C Conduit Body with Cover & Gasket, 1 inch, Aluminum, Epoxy Powder Coated
MFR #: C-100ACGA
UPC: 781381826198
Item #: 775583
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$113.13
each
Form 85 UNILETS Type C Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 1 IN, Form: 85, Length: 6.69 IN, Width: 1.81 IN, Height: 1.88 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Fem
Manuals and Documentation
- Catalog Number
- C-100ACGA
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- UNILETS
- Country of Origin
- India
- Made in USA
- No
- Application
- For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
- Connection
- Tapered Female Threaded
- Finish
- Epoxy Powder Coat
- Form
- 85
- Hub Size
- 1 IN
- Material
- Pressure Cast Aluminum
- Special Features
- Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copper free aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 11.8 CU-IN as per NEC 314.16(A)
- Standard
- UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
- UPC
- 781381826198
- GTIN
- 00781381826198
- Item Type
- Type C Conduit Outlet Body With Assembled Cover And Gasket
- Length
- 6.69
- Length UOM
- Inch
- Width
- 1.81
- Width UOM
- Inch
- Height
- 1.88
- Height UOM
- Inch
