Telemecanique

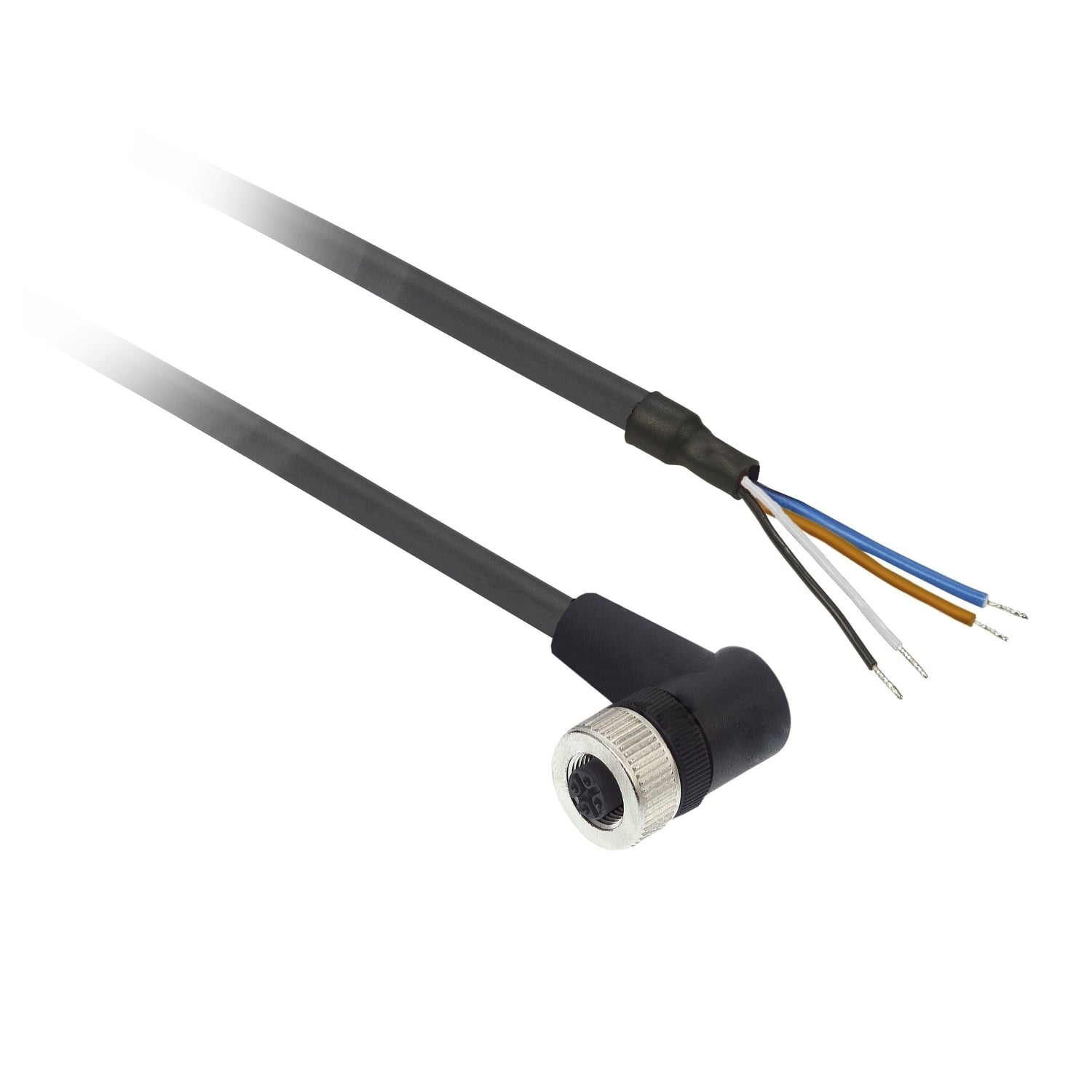

XZCP1241L15 OsiSense XZ Screw-On Pre-Wired Connector, 250 V AC/300 V DC, 4-Pin M12 Jack End Connection, 49.21 ft L, (4) 0.34 sq-mm Conductor, PUR

MFR:
Telemecanique Sensors
MFR #:
XZCP1241L15
Item #:
772392

Availability

Location Available Qty
Available Available to Order
$66.65 each

This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 4 wires and has a 5 pins M12 elbowed female connector with a metal collar. It is designed in polyurethane for severe industrial environments. It is furnished with 4-pin M12 elbowed female connector for electrical connection with screw on cable connector fixing. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact resistance is 5000Ohm and its minimum insulating resistance is 1G. It is dustproof, resistant to water jets (IP65), can be temporarily immersed in water (IP67), and withstands high pressure and steam cleaning (IP69K). This cable has a length of 15m and a diameter of 5.2mm. It is made up of 4 wires, each section of which is 0.34 mm. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-40C to +80C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.

Manuals and Documentation
Catalog Number XZCP1241L15
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Amperage Rating 4
Application GENERAL PURPOSE
Connection Elbowed female connector M12, 4 pins
Enclosure IP65-IP67-IP69K
Mounting Screw
Special Features IP65-IP67-IP69K
Standard IP67-IP65-IP69K,CULUS
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=877852&lang=en-us
GTIN 03389110069969
Item Type Cabling accessory;General purpose;Pre-wired connectors
Operating Temperature -40-80 A Degrees C STATIC--5-80 A Degrees C FLEXING
Voltage Rating 250 V AC-300 V DC
