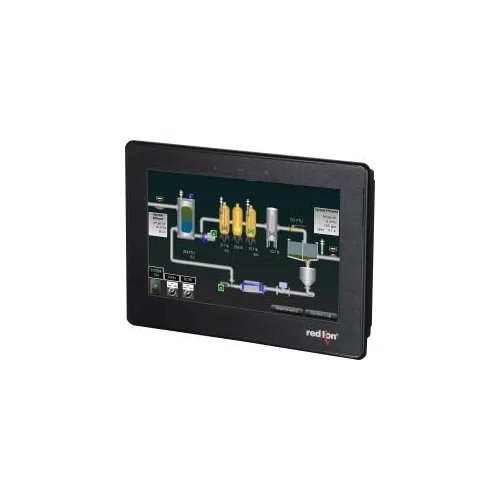

CR30000700000420 Widescreen HMI Operator Panel With Data Logging and Web Server, 10 to 30 V DC, 17.5 to 18 W, 7 in TFT LCD Display
- MFR:
- Red Lion Controls
- MFR #:
- CR30000700000420
- Item #:
- 771057
CR30000700000420 Widescreen HMI Operator Panel With Data Logging and Web Server, 10 to 30 V DC, 17.5 to 18 W, 7 in TFT LCD Display
- MFR #:
- CR30000700000420
- Item #:
- 771057
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,069.90
each
CR3000 HMIs provide industry leading protocol conversion and connectivity choices along with enhanced visual display features to deliver operator interface devices that easily scale and adapt as requirements change. The CR3000 automation HMIs from redlion® combine an everexpanding list of over 300 industrial drivers with the intuitive and powerful Crimson® 3.1 development platform to create an operator experience designed to easily adapt as needs change and operations grow. The CR3000 HMIs address more advanced needs with real-time data logging and a built-in web server.
Manuals and Documentation
Features
- MQTT connector for Google cloud
- OPC UA client driver
- OPC UA historical access
- Store and forward buffering for cloud connectors
- Communicate with over 300 protocols
- Easily convert between serial, USB and Ethernet devices
- Manage multi-vendor environments with ease
- 480 x 272 pixel, 16M color display
- SD card slot for database upload/download
| Manufacturer Part Number | CR30000700000420 |
| Brand | redlion® |
| Manufacturer | Red Lion Controls |
| Dimensions | 7.63 in W x 2 in D x 5.43 in H |
| Display Type | TFT LCD |
| Material | Polycarbonate |
| Series | CR3000 |
| Temperature Rating | -10 to 50 deg C |
| Type | Widescreen |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 5 Years |
| Standards Approvals | CE IEC/EN 61000-6-2/6100-6-4 | CISPR 11 Class A/IEC/EN 61010-1 | cULus Listed | NEMA 4X/IP66 | RoHS Compliant | UL Class I Division 2 Groups A/B/C/D |
| Application | Indoor, Factory Automation, OEM Machine Builders, Automotive, Water/Wastewater, Food and Beverage Applications |
| Brightness | 430 |
| Communication Ports | (2) 10/100 Ethernet Port, (2) RS-232 Serial Port, (2) RS-232/RS-485 Serial Port, (1) USB Device Port for Upload/Download and Expansion Port for Select Add-On Network Modules |
| Display Resolution | 800 x 480 pixel |
| Display Size | 7 in |
| Memory | 512 MB Non-Volatile Flash |
| Power Source | 10 to 30 V DC, 17.5 to 18 W |
| Software | Crimson® 3.1 |
