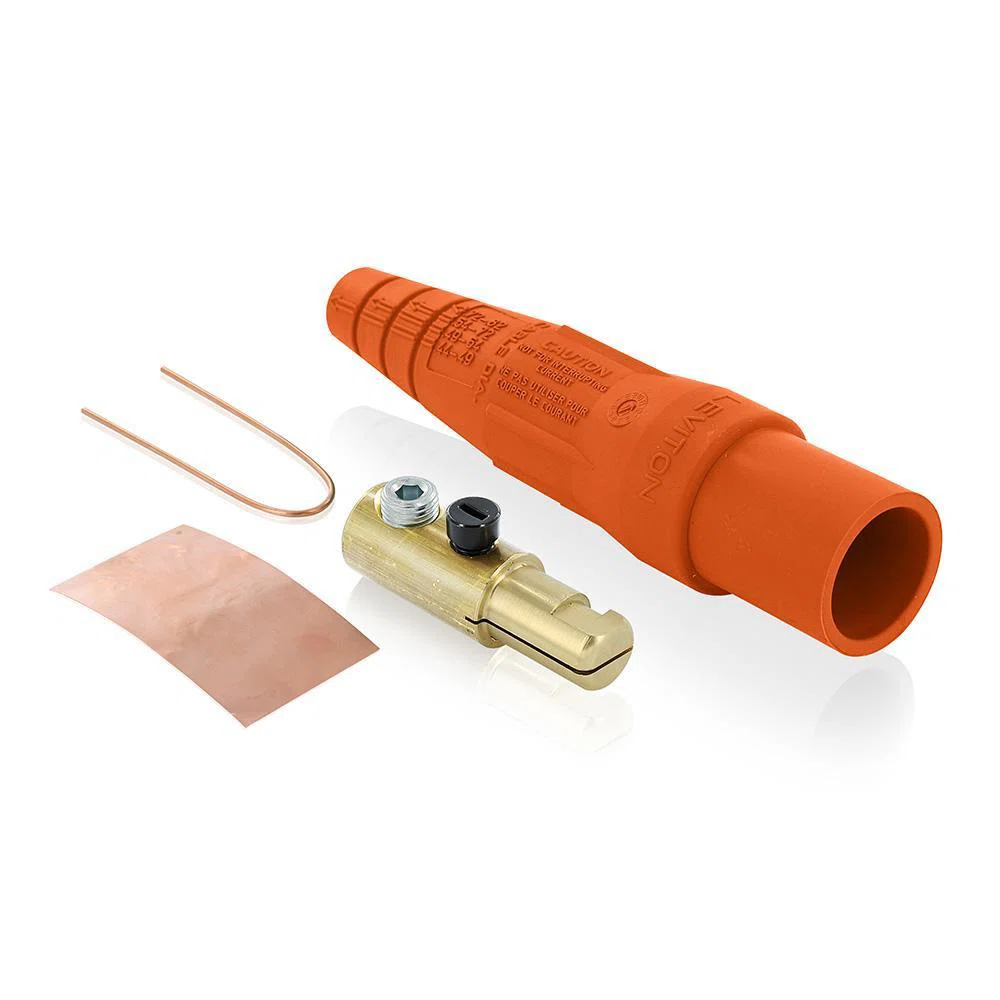

16D21-UO Rhino-Hide 1-Pole Cam Type Taper Nose While-in-Use Detachable Male Plug, 12 to 24 V AC/DC, 300 A, 2 to 2/0 AWG Wire, Single Setscrew, NEMA 3R
- MFR:
- Leviton
- MFR #:
- 16D21-UO
- UPC:
- 078477720233
- Item #:
- 769618
16D21-UO Rhino-Hide 1-Pole Cam Type Taper Nose While-in-Use Detachable Male Plug, 12 to 24 V AC/DC, 300 A, 2 to 2/0 AWG Wire, Single Setscrew, NEMA 3R
- MFR #:
- 16D21-UO
- UPC:
- 078477720233
- Item #:
- 769618
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$60.04
each
Rhino-Hide® single pole cam type connectors are designed for easy assembly and disassembly without special tools. A thermoplastic screw is used to tightly secure the contact inside the insulating sleeve, making assembly, disassembly and field repairs effortless. The plugs use plastic locking and reinforcement rings molded into insulating sleeves and receptacles ensuring the integrity of the connection. Under severe stress and load conditions, these rings will not melt, break or crack.
Manuals and Documentation
Features
- Color coded for easy phase identification
- High conductivity positive, vibration proof connection provided by double cam design
- Shatter and crack proof, high durometer thermoplastic vulcanizate (TPV) or neoprene rubber
- Self-compensating for wear slit in male contact provides spring action for longer usage
- Hard thermoplastic screw provides strength and durability
- Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems
| Manufacturer Part Number | 16D21-UO |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477720233 |
| Country Of Origin | MX |
| Amperage Rating | 300 A |
| Color | Orange |
| Dimensions | 1.72 in Dia x 7.01 in L |
| Housing Material | Santoprene TPV |
| Mounting Type | Threaded |
| Series | 16 Series |
| Temperature Rating | 86 deg F |
| Type | 1-Pole Cam Type Taper Nose While-in-Use |
| Voltage Rating | 12 to 24 V AC/DC |
| Alternative Part Number | 13629155 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | UL 1691 | CSA Certified |
| Application | Industrial Applications |
| Includes | Contact, Insulator |
| Connection Type | Single Setscrew |
| Contact Material | Brass |
| Nema Rating | NEMA 3R |
| Wire Size | 2 to 2/0 AWG |
