Discontinued
Panduit

PUP6004BU-W TX6000 Enhanced Type CMP Cat 6 Plenum Cable, 80 VAC, (4 Pairs) 23 AWG U/UTP Bare Copper Conductor, 1000 ft L

MFR:
Panduit
MFR #:
PUP6004BU-W
UPC:
074983669035
Item #:
769372

Availability

Location Available Qty
Available Available to Order

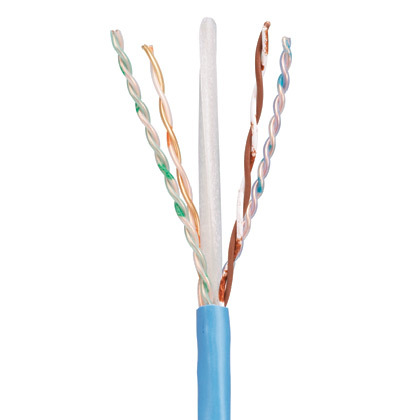

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with FEP/HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a PVC flame-retardant jacket. The blue, plenum (CMP) cable is supplied 1000 feet (305 meters) to an easy pay-out carton.

Manuals and Documentation
Catalog Number PUP6004BU-W
Manufacturer Panduit
Brand Panduit
Country of Origin United States
Made in USA Yes
Color Blue
Conductor Material Copper
Construction U/UTP
Insulation Material FEP
Jacket Material Polyvinyl Chloride (PVC)
Number of Conductors 4
Resistance Flame Retardant
Standard Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E with Channel Headroom Guarantee, NFPA 262 and CSA FT-6, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant.
UPC 074983669035
GTIN 00074983669035
Item Type Copper Cable
Length 1000
Length UOM Foot
Weight 30/1000 ft. LBS
Outside Diameter 0.225 IN
Temperature Rating 167 °F
Voltage Rating 80
