Mersen

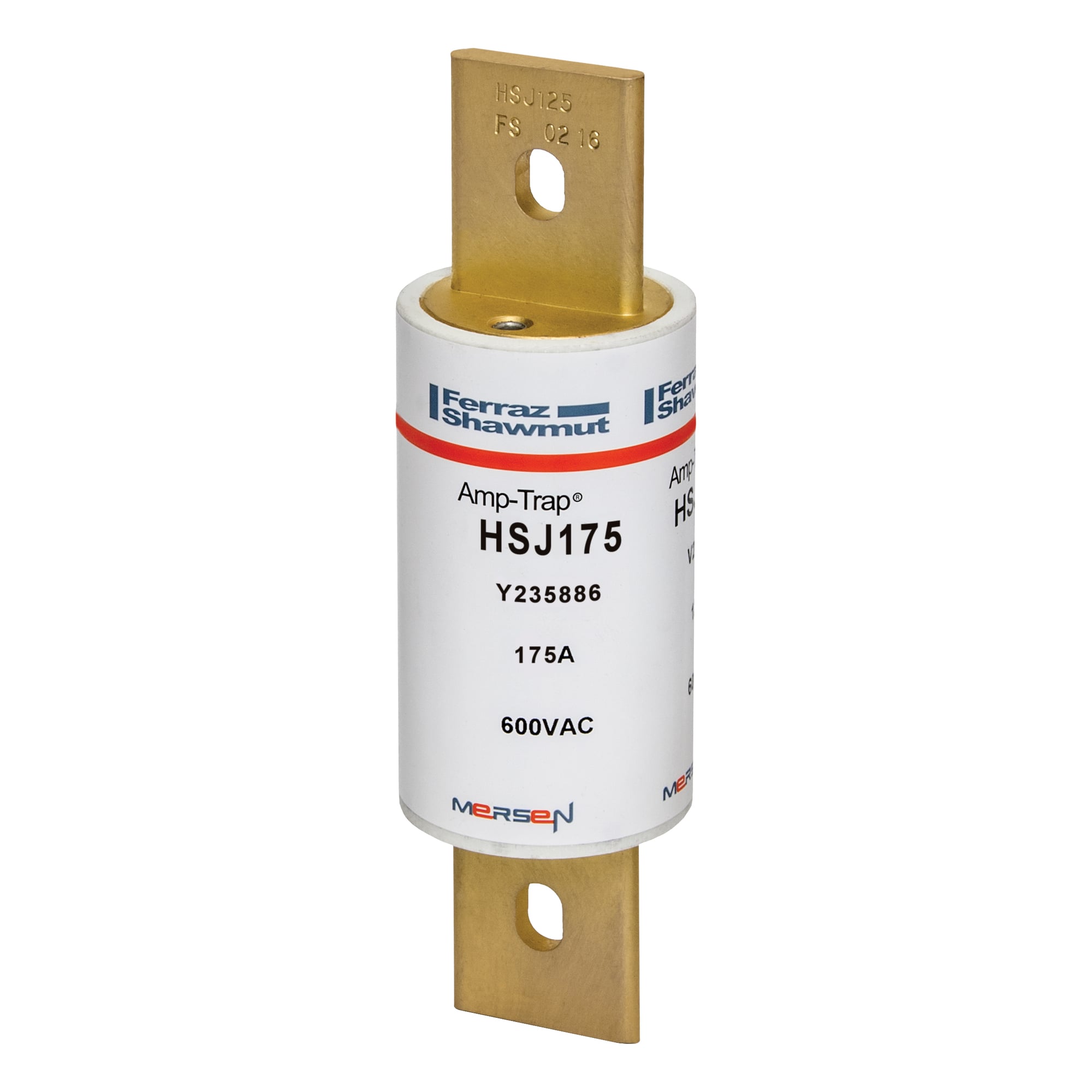

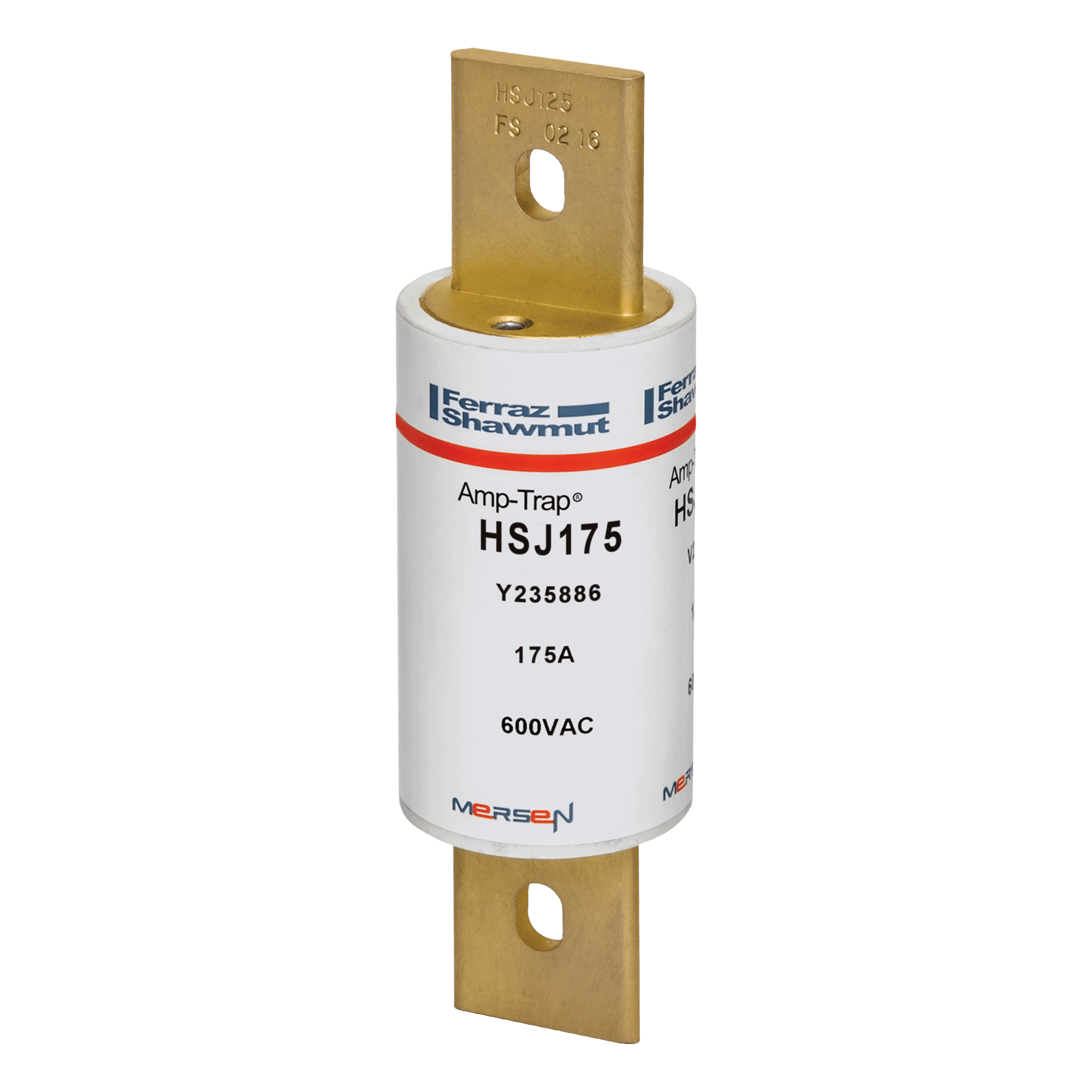

HSJ175 Low Voltage High Speed North American Style Power Fuse, 175 A, 600 V AC/500 V DC, 100/200 kA, Class J, Cylindrical Body

MFR:
Mersen
MFR #:
HSJ175
UPC:
782001329648
Item #:
768789

Availability

Location Available Qty
Available Available to Order
$806.49 each

Fuse HSJ - Class J - High-Speed 600VAC 500VDC 175A Blade Amp-Trap

Manuals and Documentation
Catalog Number HSJ175
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 175
Application Branch circuits Control panels Electronic motor controllers Phase controllers Drives Soft-starters Solid state relays
Connection Blade
Interrupt Rating 200 KA
Mounting Clip
Special Features Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts Low I2t (low thermal energy) Excellent cycling ability for frequent starts/stops without nuisance opening
Standard UL listed to standard 248-8 File E2137 CSA certified to standard C22.2 no. 248.8 DC listed to UL 248
UPC 782001329648
GTIN 00782001329648
Item Type Class J
Size 5.75 x 1.62
Voltage Rating 600
Cross Reference Products Bussmann DFJ-175
