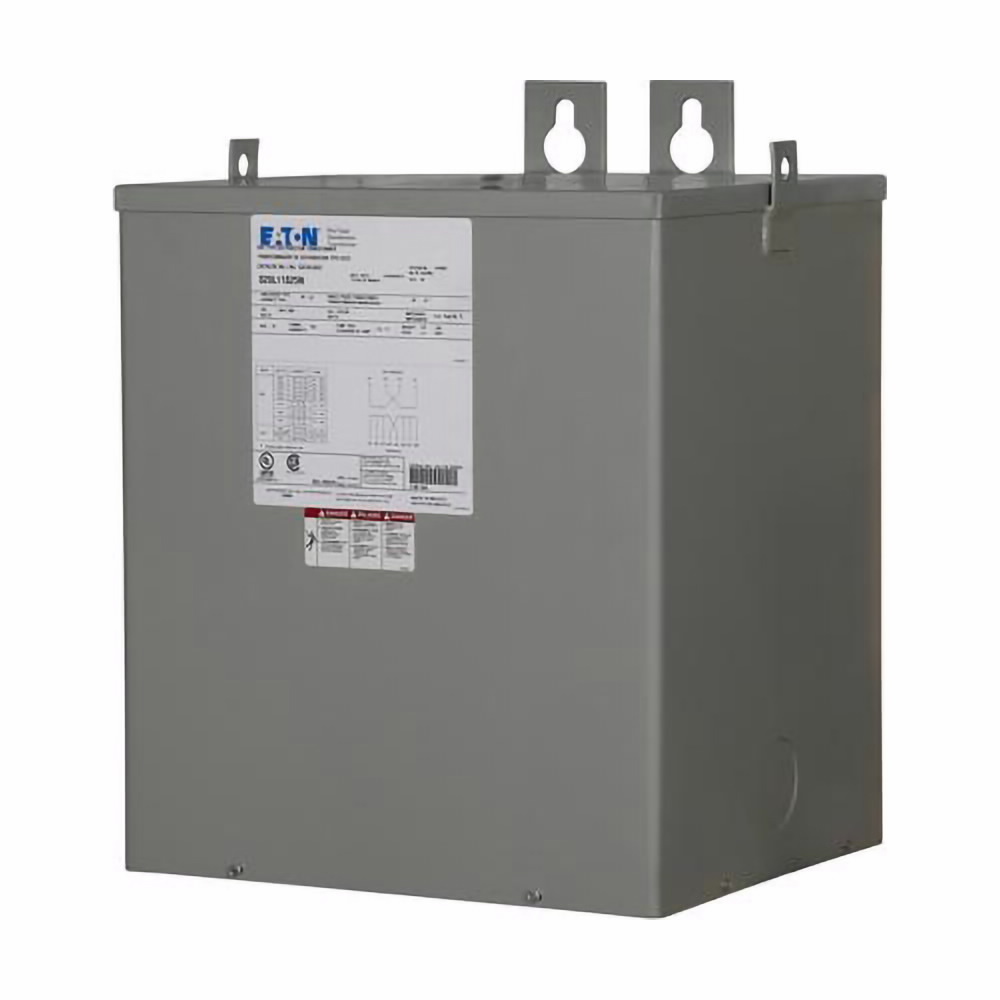

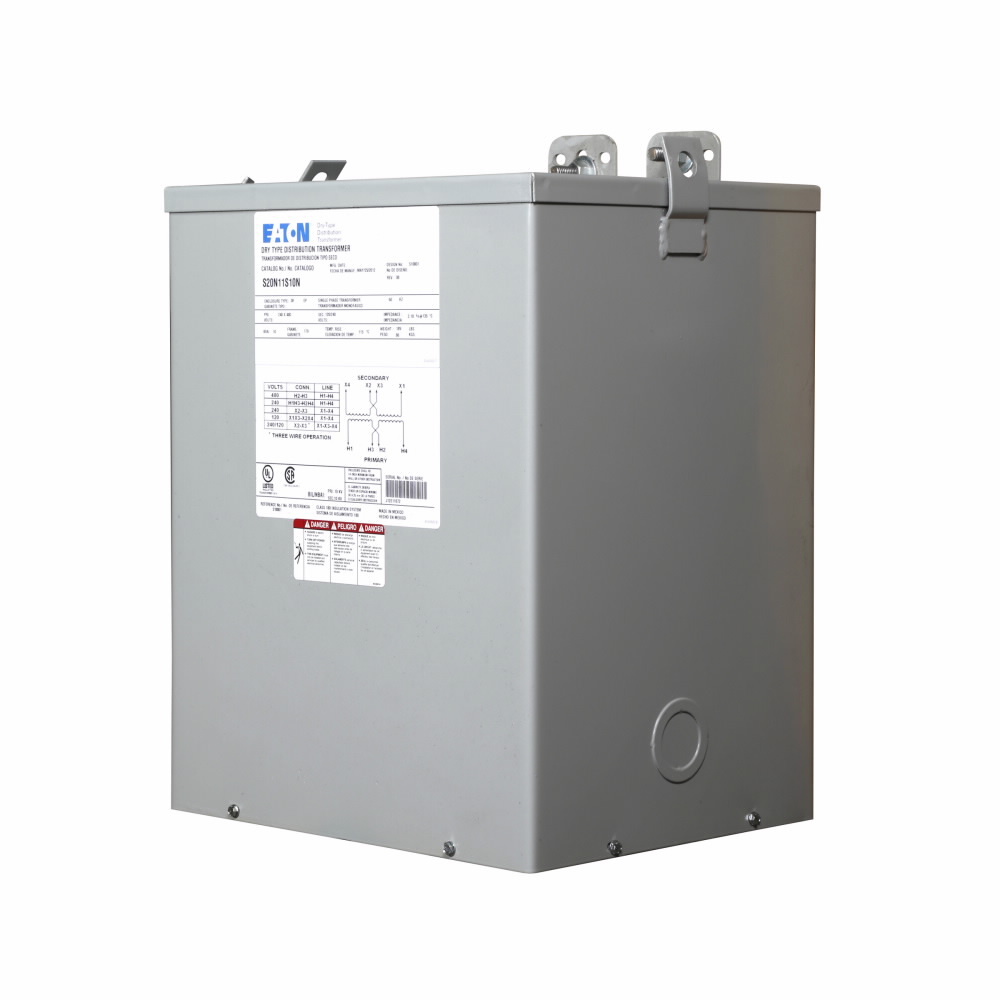

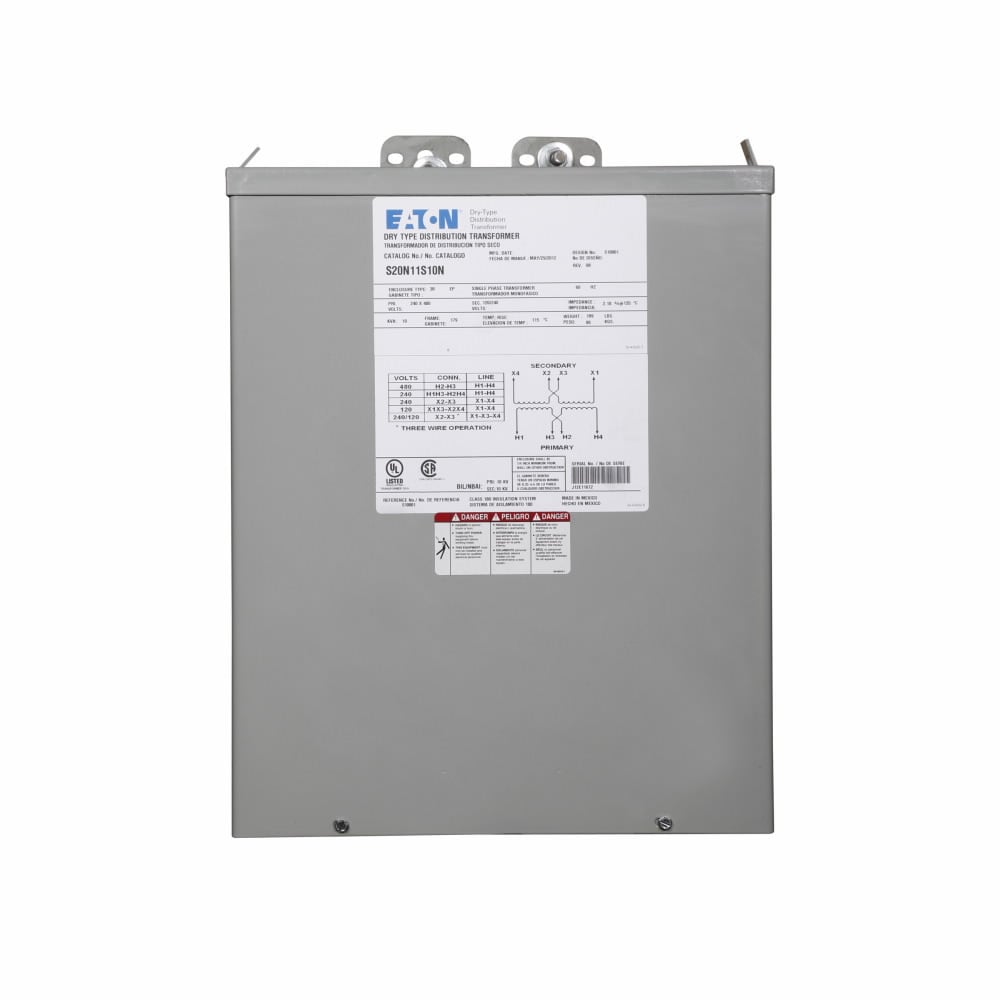

S24N48S10 Type EP Dry Encapsulated Distribution Transformer, 240 VAC Primary, 480 Delta V AC Secondary, 10 kVA Power Rating, 60 Hz, 1 Phase
- MFR:
- Eaton
- MFR #:
- S24N48S10
- UPC:
- 786680062971
- Item #:
- 768071
S24N48S10 Type EP Dry Encapsulated Distribution Transformer, 240 VAC Primary, 480 Delta V AC Secondary, 10 kVA Power Rating, 60 Hz, 1 Phase
- MFR #:
- S24N48S10
- UPC:
- 786680062971
- Item #:
- 768071
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$8,208.84
each
Eatons EP (single-phase) and EPT (three-phase) general purpose encapsulated dry-type transformers are of the two-winding type, encapsulated (potted) in a mix of epoxy coated sand and gravel, and are available in a wide variety of primary and secondary voltage combinations. General purpose encapsulated transformers are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards, and are designed for continuous operation at rated kVA.
Manuals and Documentation
| Catalog Number | S24N48S10 |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Standard | UL Listed |
| UPC | 786680062971 |
| GTIN | 00786680062971 |
| Item Type | Encapsulated transformer |
| Temperature Rating | 115 Degrees C rise |
