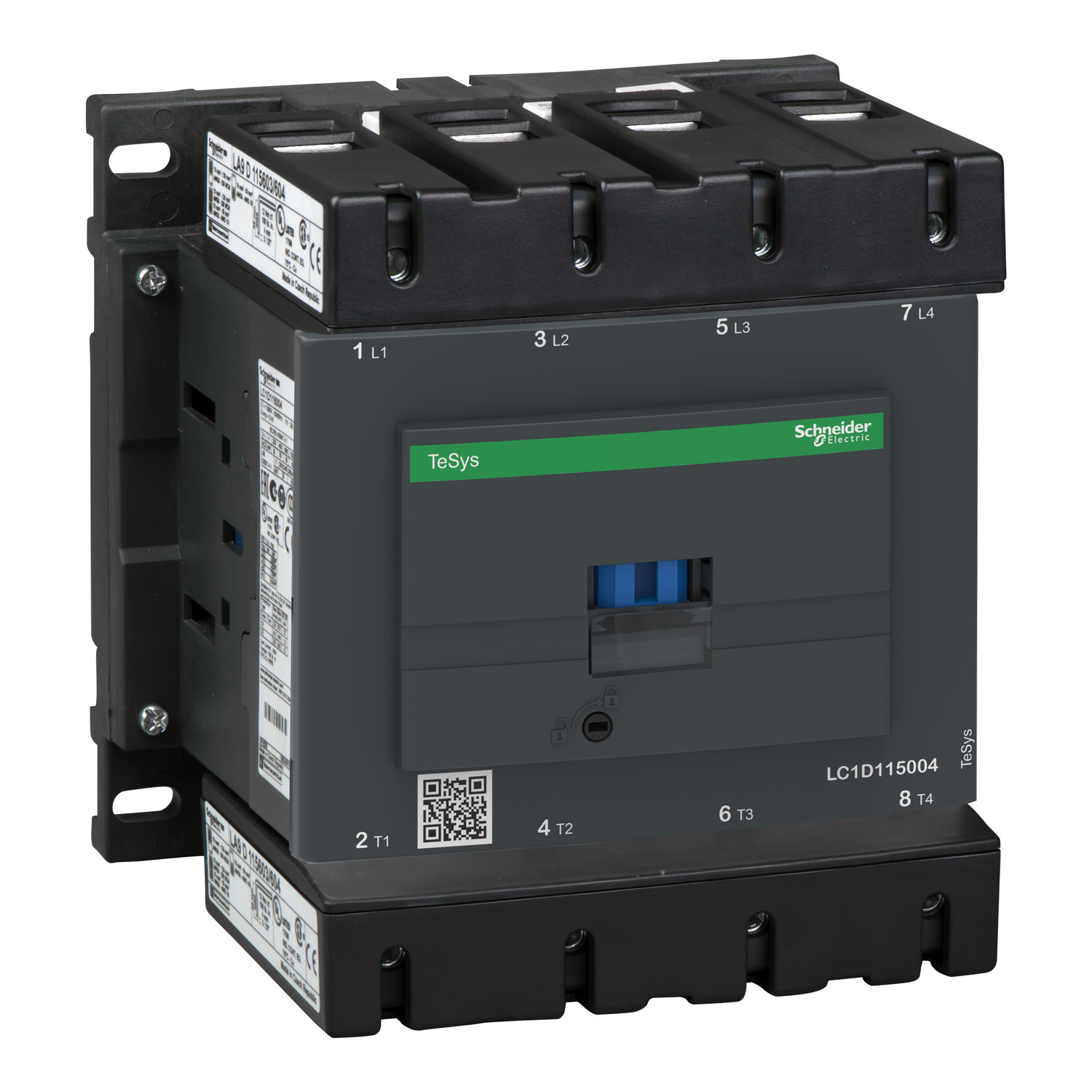

LC1D115004BD TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 24 V DC V Coil, 200 A, 4NO Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D115004BD
- Item #:
- 767872
LC1D115004BD TeSys D LC1D Non-Reversing IEC Contactor With Safety Cover, 24 V DC V Coil, 200 A, 4NO Contact, 4 Poles
- MFR #:
- LC1D115004BD
- Item #:
- 767872
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 200A/1000V AC-1. They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (150mm width), mounting on 2 DIN-rails or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 6.10 inches wide and 4.53 inches deep. It weighs 6.31 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D115004BD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 24 V DC |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end;power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end;power circuit: connector 2 10-50 mm² - cable |
| Contact Configuration | 4 NO |
| Mounting | Rail Plate |
| Special Features | With integral suppression device |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=8329882&lang=en-us |
| GTIN | 03389110857245 |
| Item Type | Contactor |
