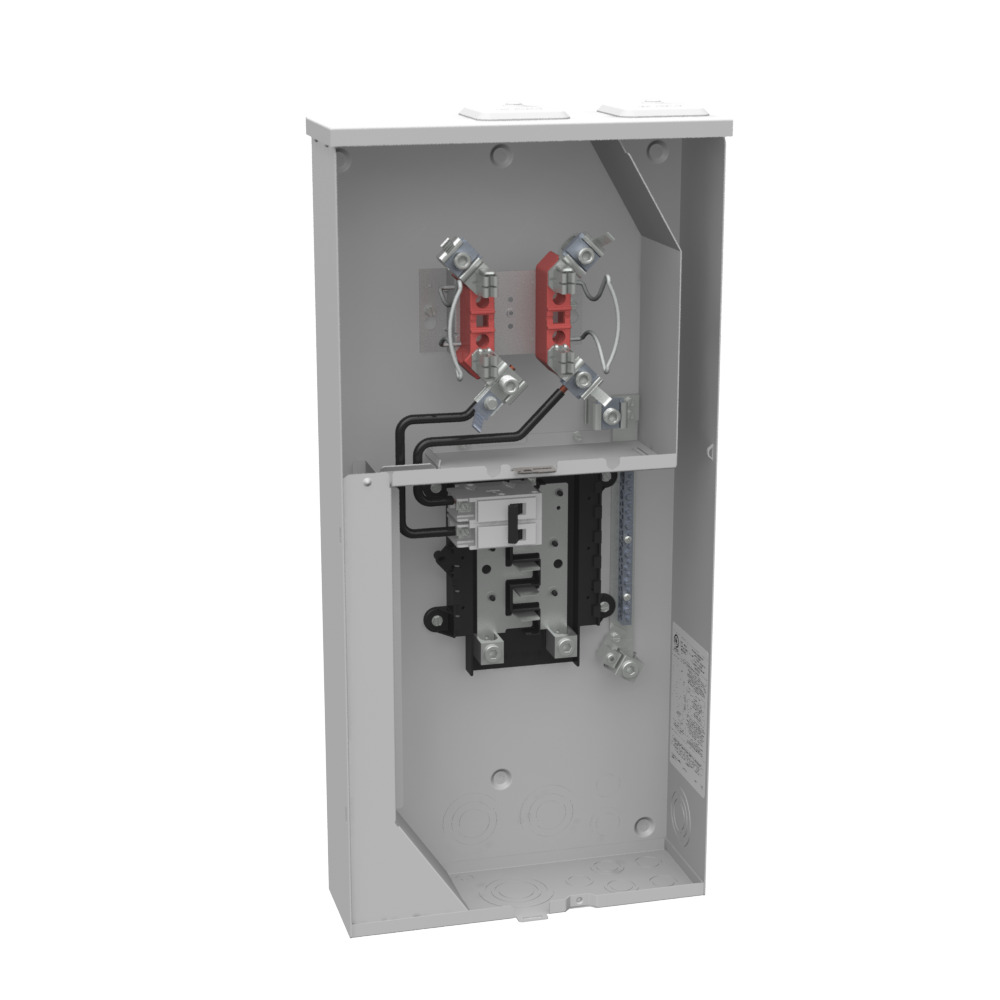

U5168-XTL-100-KK-CECHA 4 Term, Ringless, 2 Small Closing Plates, 1-100 Amp, Main Breaker, 10 Branch Circuit, Horn Bypass, Commonwealth Edison Chicago Housing Authority
- MFR:
- Milbank
- MFR #:
- U5168-XTL-100-KK-CECHA
- UPC:
- 784572500266
- Item #:
- 7669
U5168-XTL-100-KK-CECHA 4 Term, Ringless, 2 Small Closing Plates, 1-100 Amp, Main Breaker, 10 Branch Circuit, Horn Bypass, Commonwealth Edison Chicago Housing Authority
- MFR #:
- U5168-XTL-100-KK-CECHA
- UPC:
- 784572500266
- Item #:
- 7669
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,128.69
each
4 TERM RNGLS 2 SML CLS PLTS 1-100 AMP MN BRKR 10 BRANCH CKT HRN BYPS COMMONWEALTH EDISON CHICAGO HOUSING AUTHORITY
Manuals and Documentation
| Catalog Number | U5168-XTL-100-KK-CECHA |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Main And Load Center |
| Bypass Type | Horn |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Commonwealth Edison Chicago Housing Authority |
| Standard | UL Listed;Type 3R |
| UPC | 784572500266 |
| GTIN | 00784572500266 |
| Item Type | Ringless Meter Socket |
| Length | 4.5 |
| Length UOM | Inch |
| Width | 14.125 |
| Width UOM | Inch |
| Height | 30 |
| Height UOM | Inch |
| Size | 4.5L x 14.125W x 30H |
| Terminals | Lay In |
| Voltage Rating | Up to 240 Volts Alternating Current |
