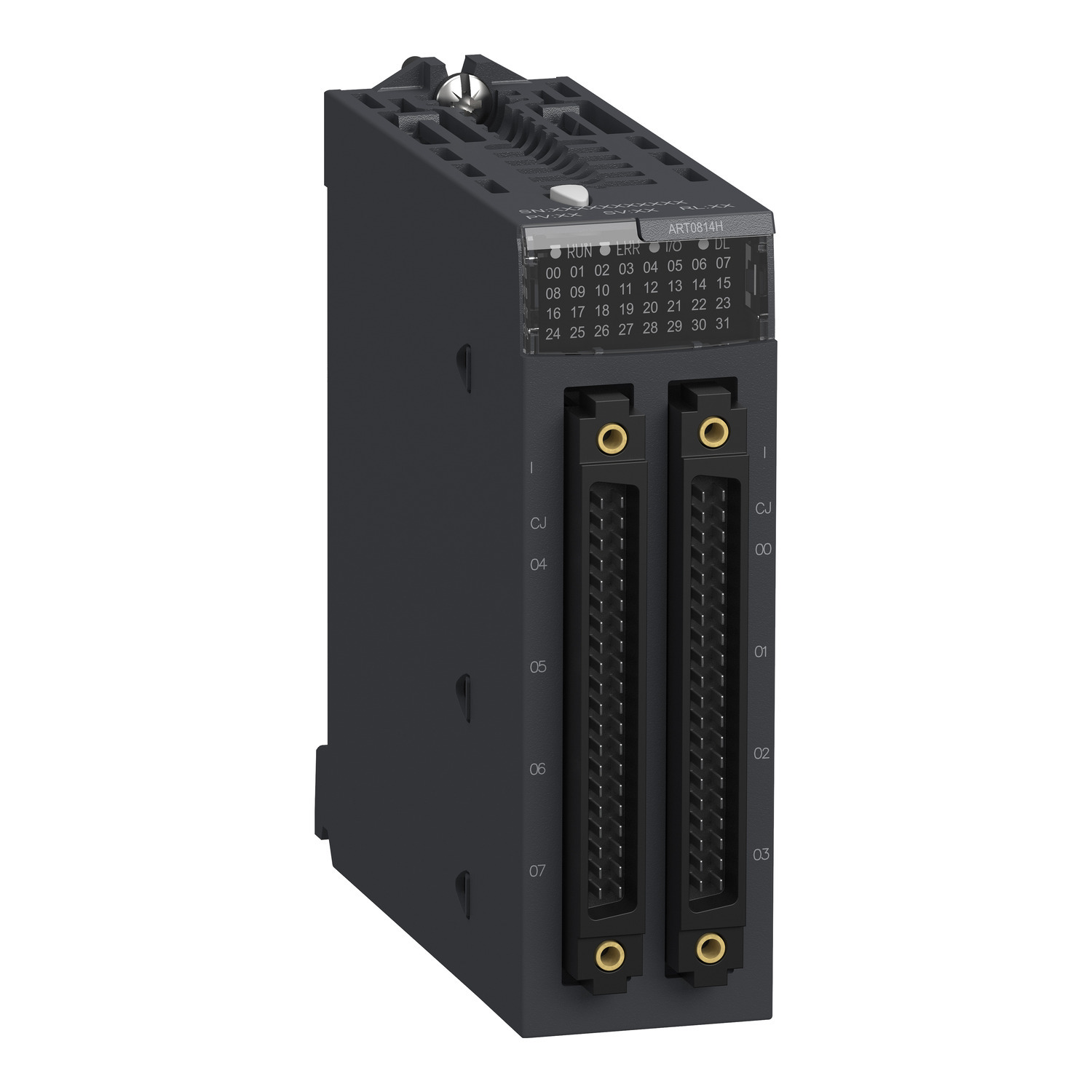

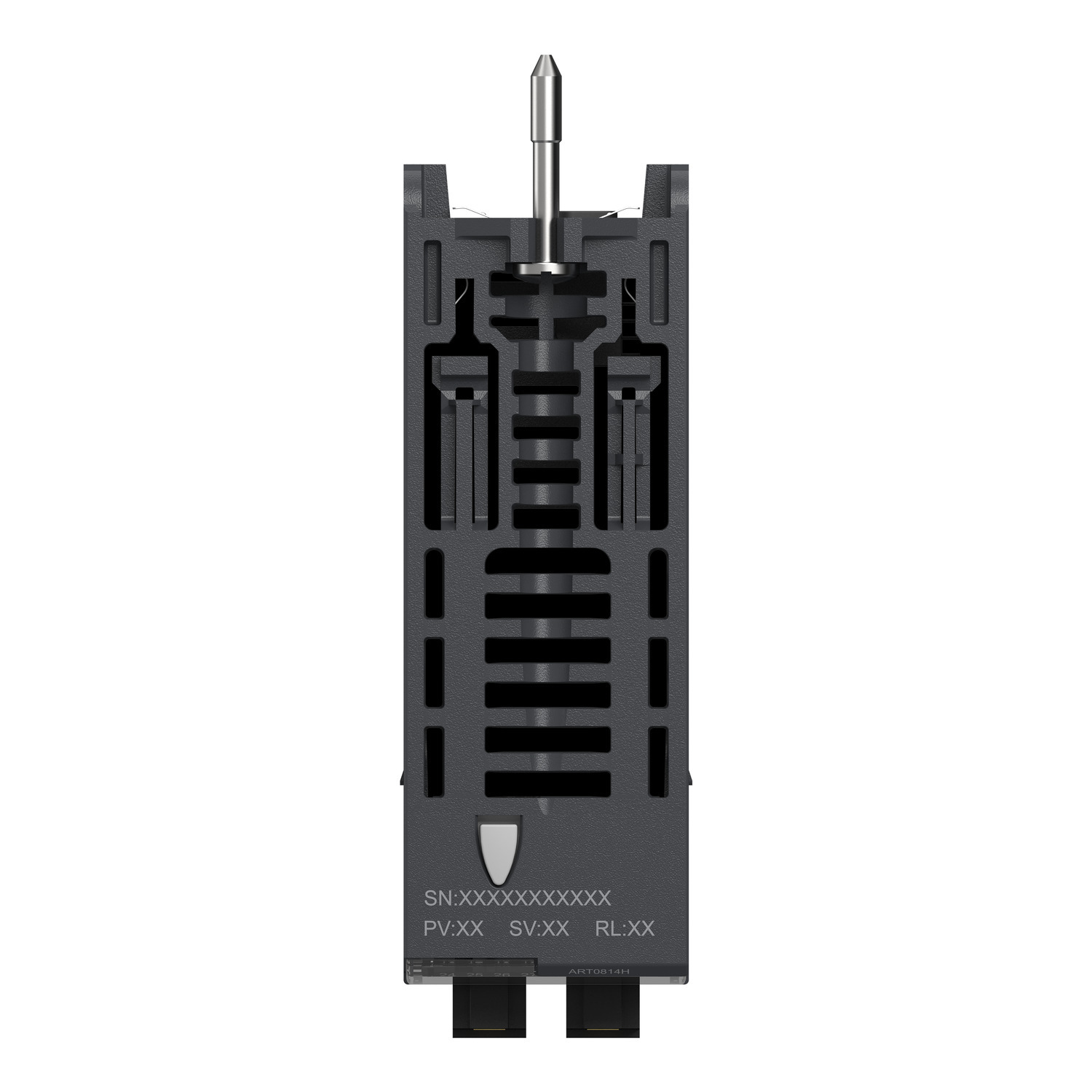

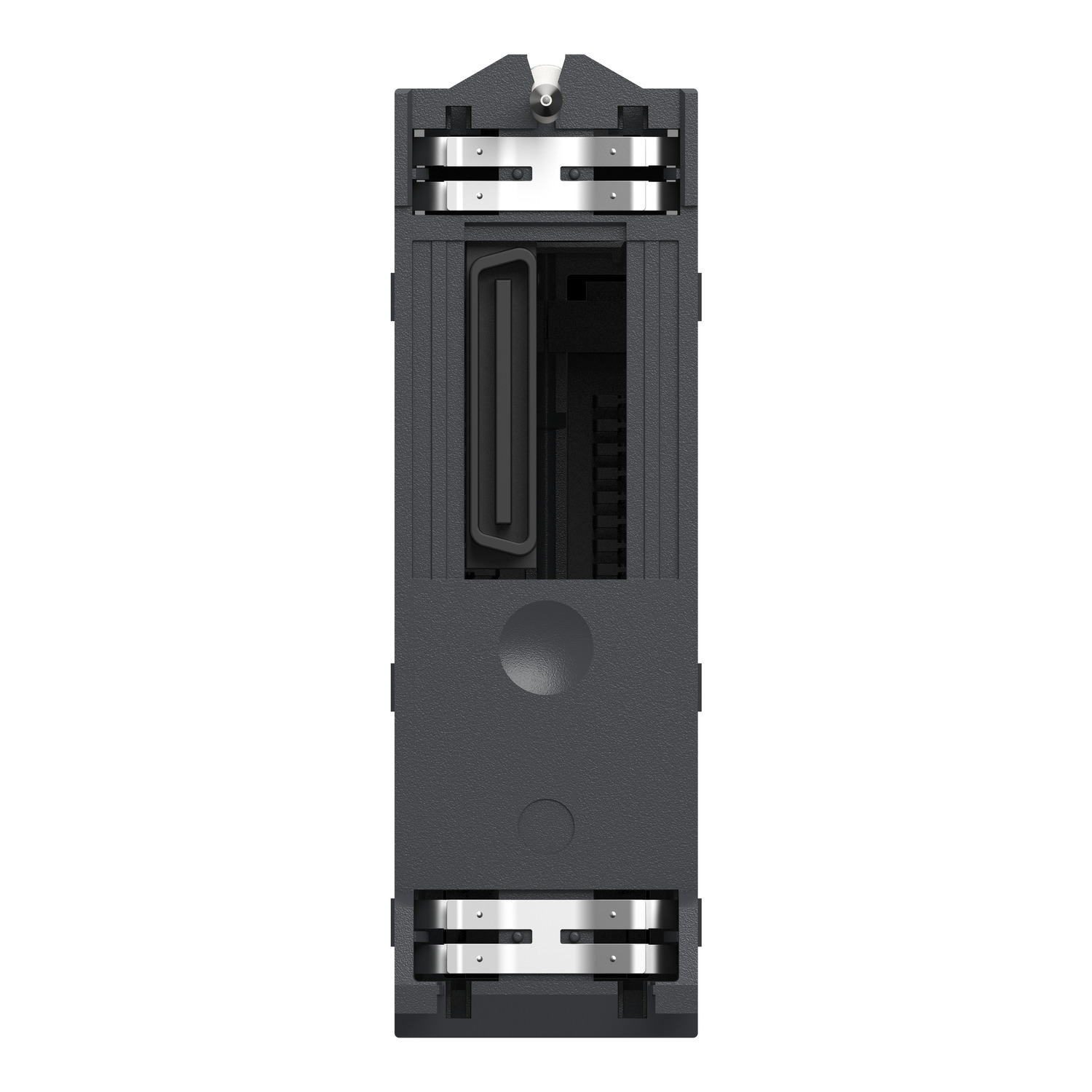

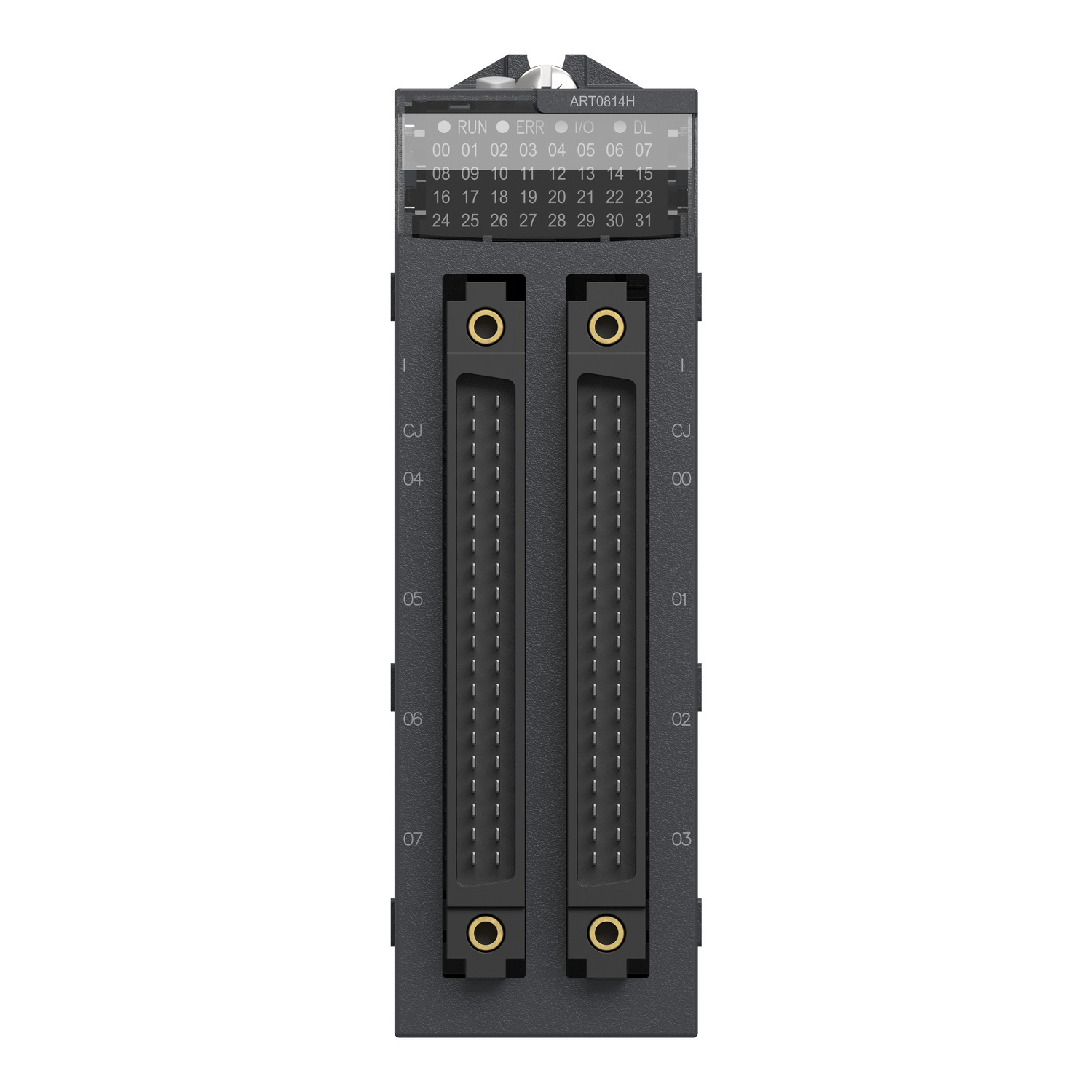

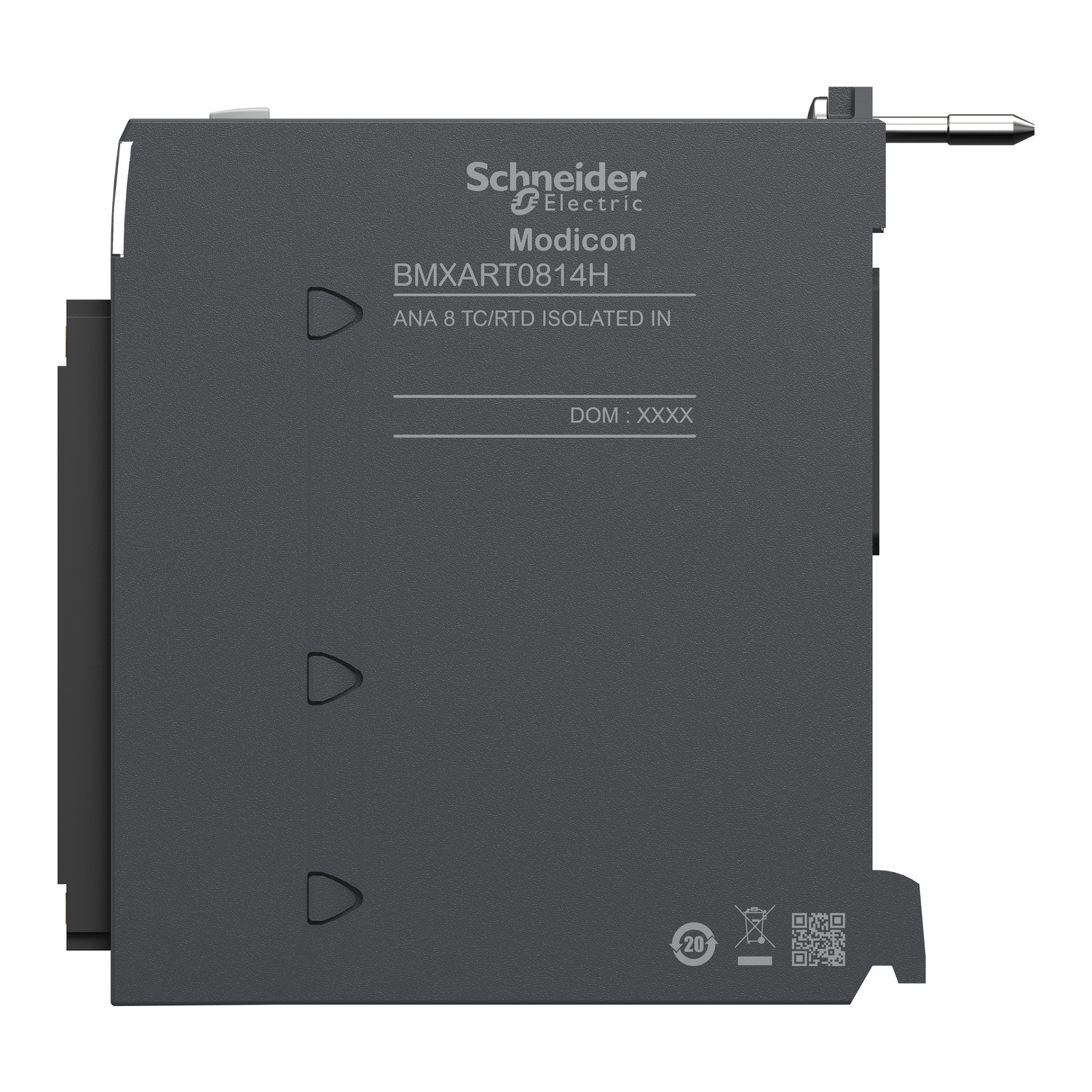

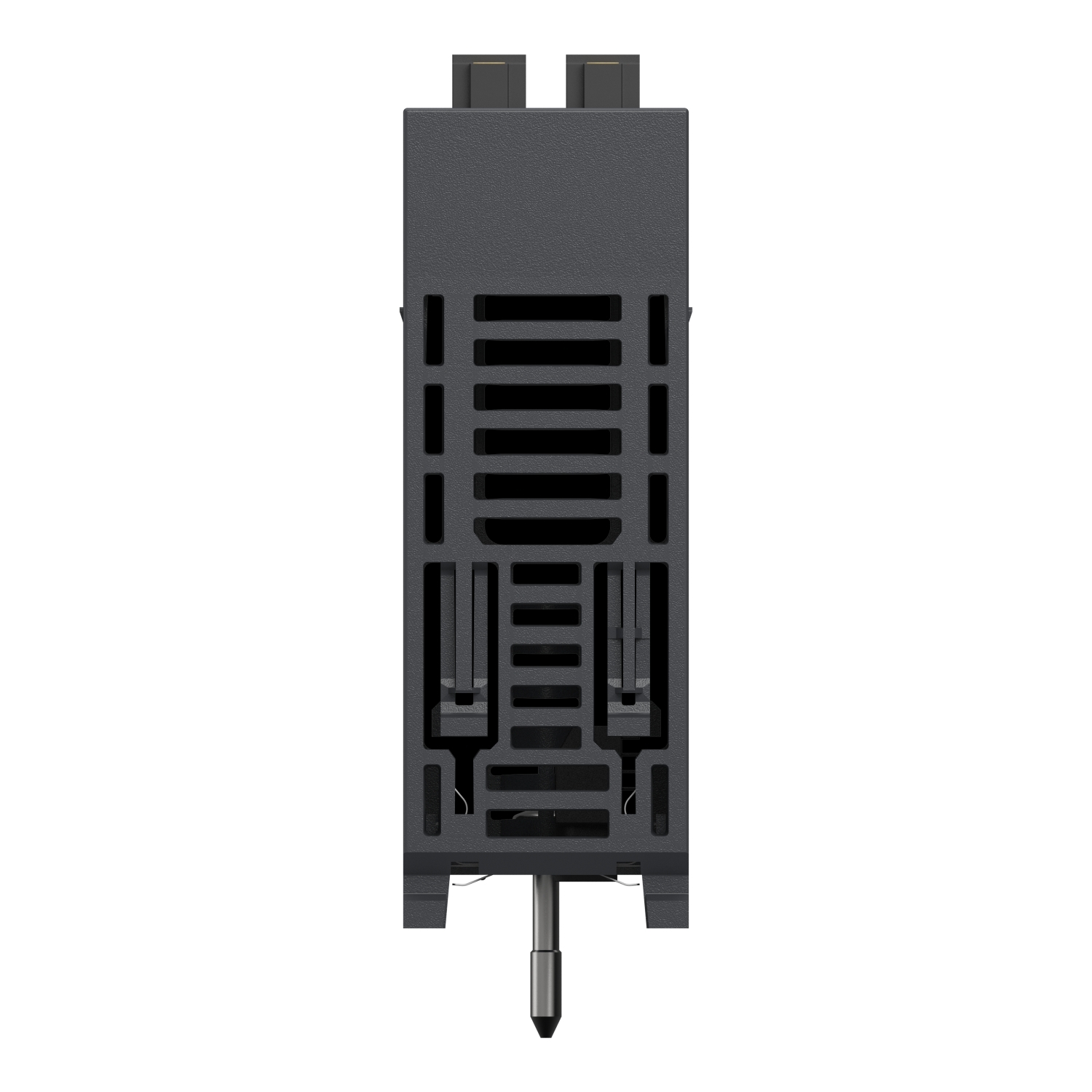

BMXART0814H Modicon Ruggedized Analog Input Module, 8 Inputs, 16 bit Resolution

MFR:
Schneider Electric
MFR #:
BMXART0814H
Item #:
764503

Availability

Location Available Qty
Available Available to Order
$2,184.26 each

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25C to +70C. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Manuals and Documentation
Catalog Number BMXART0814H
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application For severe environments
Display 1 LED (Green) RUN;1 LED per channel (Green) channel diagnostic;1 LED (Red) ERR;1 LED (Red) I/O
Input Signal Low level;Voltage +/- 1.28 V;voltage +/- 160 mV;voltage +/- 320 mV;voltage +/- 40 mV;voltage +/- 640 mV;voltage +/- 80 mV;resistor 400 Ohm 2 wires;resistor 400 Ohm 3 wires;resistor 400 Ohm 4 wires;resistor 4000 Ohm 2 wires;resistor 4000 Ohm 3 wires;resistor 4000 Ohm 4 wires;temperature probe -100...+260 Degrees C Cu 10;temperature probe -100...+450 Degrees C Pt 100 UL/JIS;temperature probe -100...+450 Degrees C Pt 1000 UL/JIS;temperature probe -200...+850 Degrees C Pt 100 IEC;temperature probe -200...+850 Degrees C Pt 1000 IEC;temperature probe -60...+180 Degrees C Ni 100;temperature probe -60...+180 Degrees C Ni 1000;thermocouple +130...+1820 Degrees C thermocouple B;thermocouple +270...+1300 Degrees C thermocouple N;thermocouple -200...+600 Degrees C thermocouple U;thermocouple -200...+760 Degrees C thermocouple J;thermocouple -200...+900 Degrees C thermocouple L;thermocouple -270...+1000 Degrees C thermocouple E;thermocouple -270...+1370 Degrees C thermocouple K;thermocouple -270...+400 Degrees C thermocouple T;thermocouple -50...+1769 Degrees C thermocouple R;thermocouple -50...+1769 Degrees C thermocouple S;15 bits + sign
Power Supply 150 mA 3.3 V DC;50 mA 24 V DC
Special Features 40 ways 2 connectors
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4033756&lang=en-us
GTIN 03595864025315
Item Type Analog input module
