Discontinued
Hubbell Wiring Device - Kellems

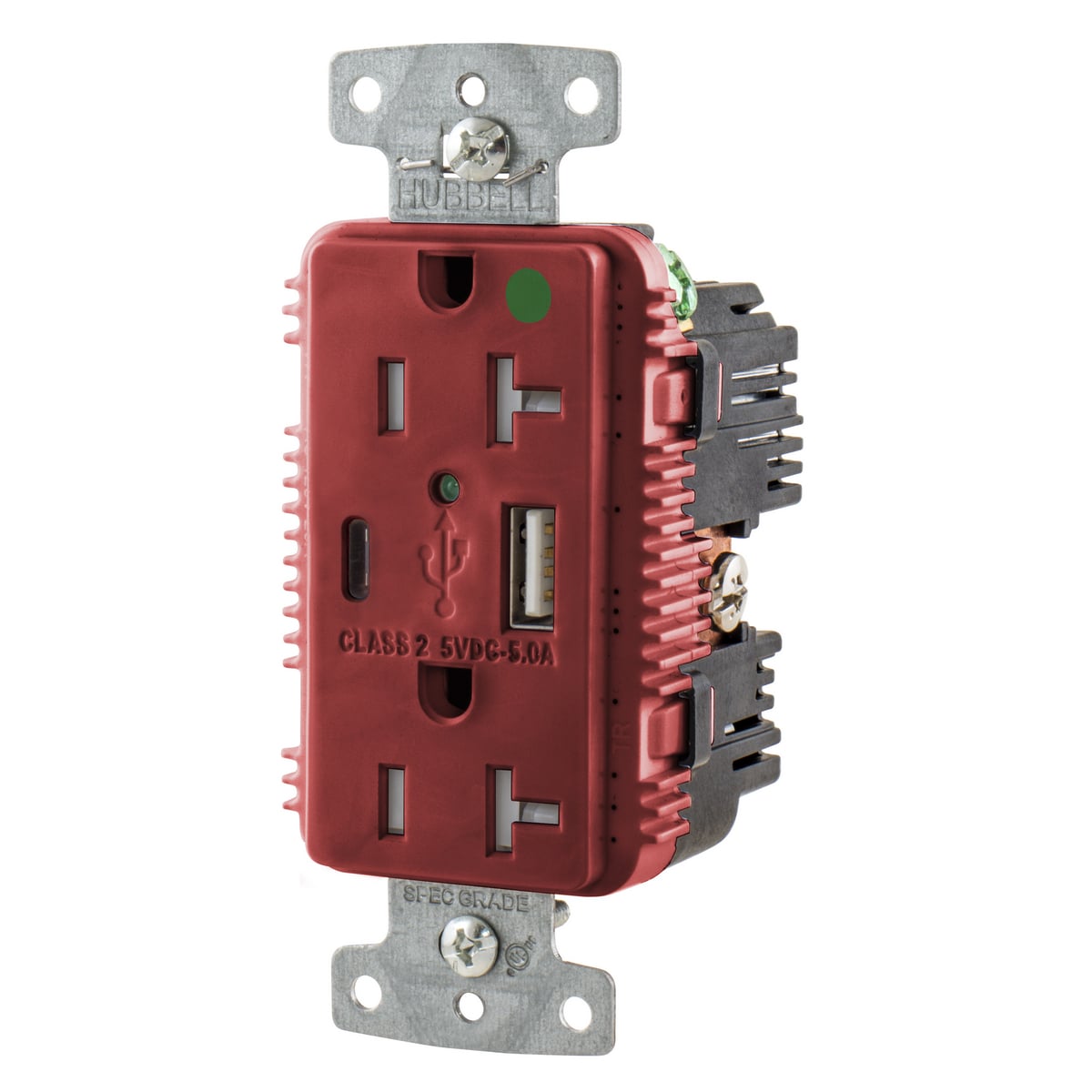

USB8300AC5R Duplex Grounding Standard Tamper-Resistant USB Charger Receptacle With Green LED, 125 V AC, 20 A, 1 hp, 2500 W, 1 Phase, 2 Poles, 3 Wires, Red

MFR:
Hubbell Wiring Device-Kellems
MFR #:
USB8300AC5R
UPC:
883778307423
Item #:
764288

Availability

Location Available Qty
Available Available to Order

USB Charger Receptacles and Outlets - More Ways to Charge Faster with Hubbells line of USB Chargers, available in Type-C, Combination Type A&C or the legacy Type A, all with a USB high power output of 5 Amp 5 Volt DC. Hubbells USB Charger Duplex Receptacle provides both USB and electrical power in a standard single gang opening. Designed to provide maximum charging for portable electronics, the USB ports are capable of charging two tablets simultaneously. The 4 Port and 2 Port Charger Outlet feature a USB port door, which when open enables power. When closed, all power is switched OFF. This eliminates all current flow for a zero no-load draw. Buildings looking to provide 100% green efficiency in power delivery will maximize LEED and energy efficient design.

Manuals and Documentation
Catalog Number USB8300AC5R
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 20
Application USB Charging/Power
Color Red
Connection Terminal Screws
Material Composite
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Special Features 5A V5V DC, Style A/C
Standard UL/CSA
UPC 883778307423
GTIN 00883778307423
Item Type One Type A, One Type-C Port
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Temperature Rating Maximum continuous 75 Degrees C, minimum -40 Degrees C (w/o impact)
Voltage Rating 125 AC
Wattage 2500 W
Wire Size #8 To #2 AWG
