Panduit

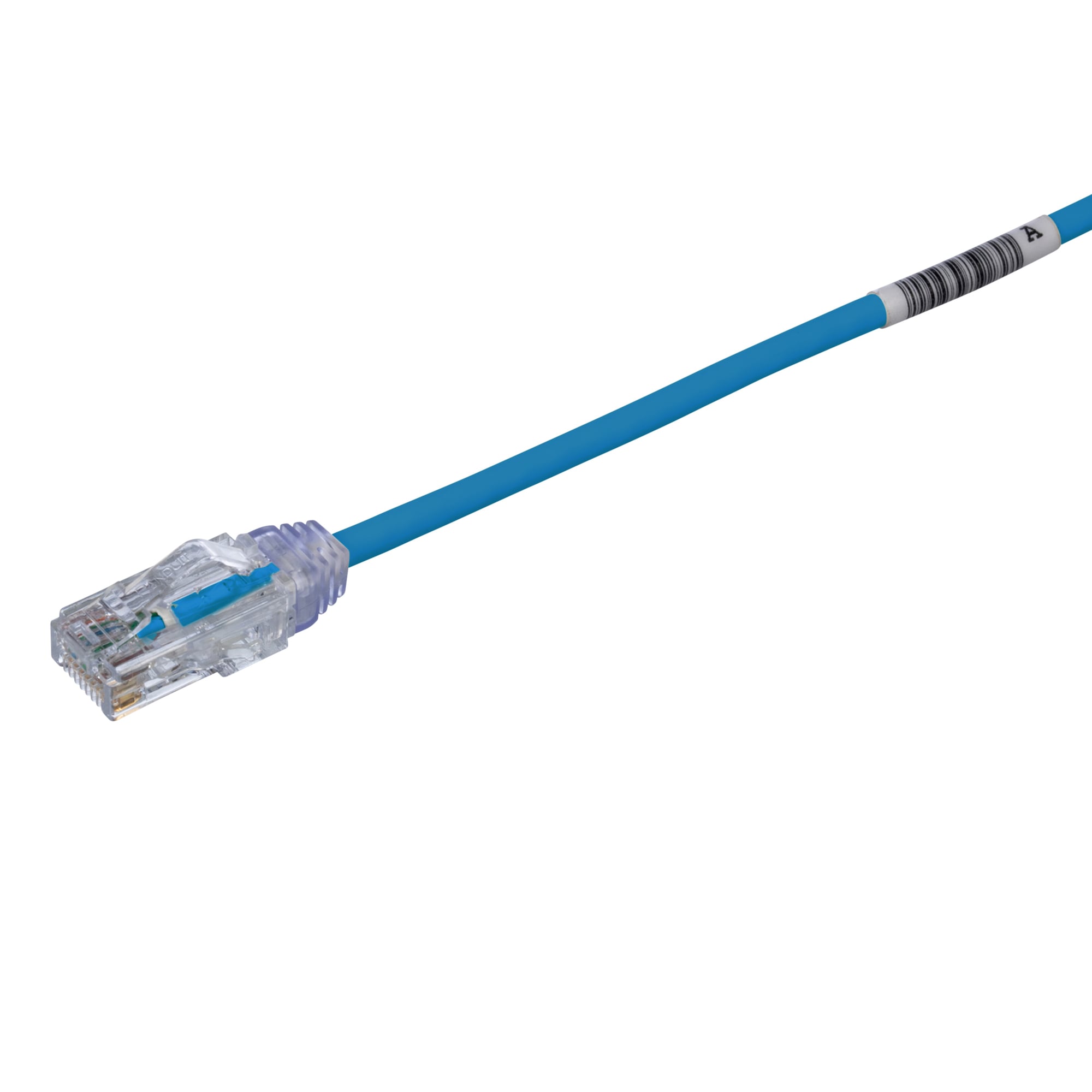

UTP28SP3BU PanNet TX6-28 Class E Patch Cord, Cat 6, 28 AWG U/UTP Copper Conductor, Modular Plug Boot Connector, 3 ft L Cord, Blue

MFR:
Panduit
MFR #:
UTP28SP3BU
UPC:
074983651979
Item #:
763360

Availability

Location Available Qty
Available Available to Order
$19.01 each

The TX6-28 Cat 6 UTP Patch Cord is a 3-Foot, 0.150-inch (3.8mm) diameter, Blue cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number UTP28SP3BU
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2 ) 155 Mb/s ATM, 622 Mb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Color Blue
Conductor Material Copper
Jacket Material LSZH Material
Plug Type Modular Plug
Standard Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4
UPC 074983651979
GTIN 00074983651979
Item Type Patch Cord
Length 3.00
Outside Diameter 0.15 IN
Temperature Rating 167 °F
Wire Size 28
