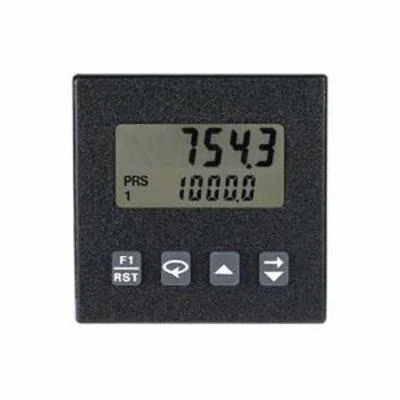

C48CD002 Panel Meter, 6 Digits, LCD Display, On/Off Cycles: 15 ms
- MFR:
- Red Lion Controls
- MFR #:
- C48CD002
- Item #:
- 762987
C48CD002 Panel Meter, 6 Digits, LCD Display, On/Off Cycles: 15 ms
- MFR #:
- C48CD002
- Item #:
- 762987
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$554.90
each
Red Lion's C48 counter/timer panel meters are available as a standard counter/timer or a batch counter/timer. The standard unit is available with single or dual presets while the batch model has a main process counter or timer with dual presets and a secondary counter with a single preset. The secondary counter can be selected to function as a batch or a total counter.
Manuals and Documentation
Features
- Wide model range supports varying requirements
- Field upgradeable I/O and communication cards
- 50 x 50 mm
- Bi-directional and quadrature counting
- 2 line display
- 6 character reflective LCD
- Dual relay output
- 85 to 250 VAC voltage rating
| Manufacturer Part Number | C48CD002 |
| Brand | redlion® |
| Manufacturer | Red Lion Controls |
| Color | Black |
| Dimensions | 1.95 in H x 1.95 in W x 4.17 in D |
| Display Type | LCD |
| Enclosure Type | NEMA 4X/IP65 |
| Material | Plastic |
| Mounting Type | Panel |
| Series | C48 |
| Temperature Rating | 0 to 50 deg C |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | cRUus | UL File No. E137808 Listed | CE Certified | RoHS Compliant |
| Frequency Rating | 11 kHz |
| Number Of Digits | 6 |
| On Off Cycles | 15 ms |
| Output | Dual Relay |
| Reset Type | Front Panel Pushbutton |
