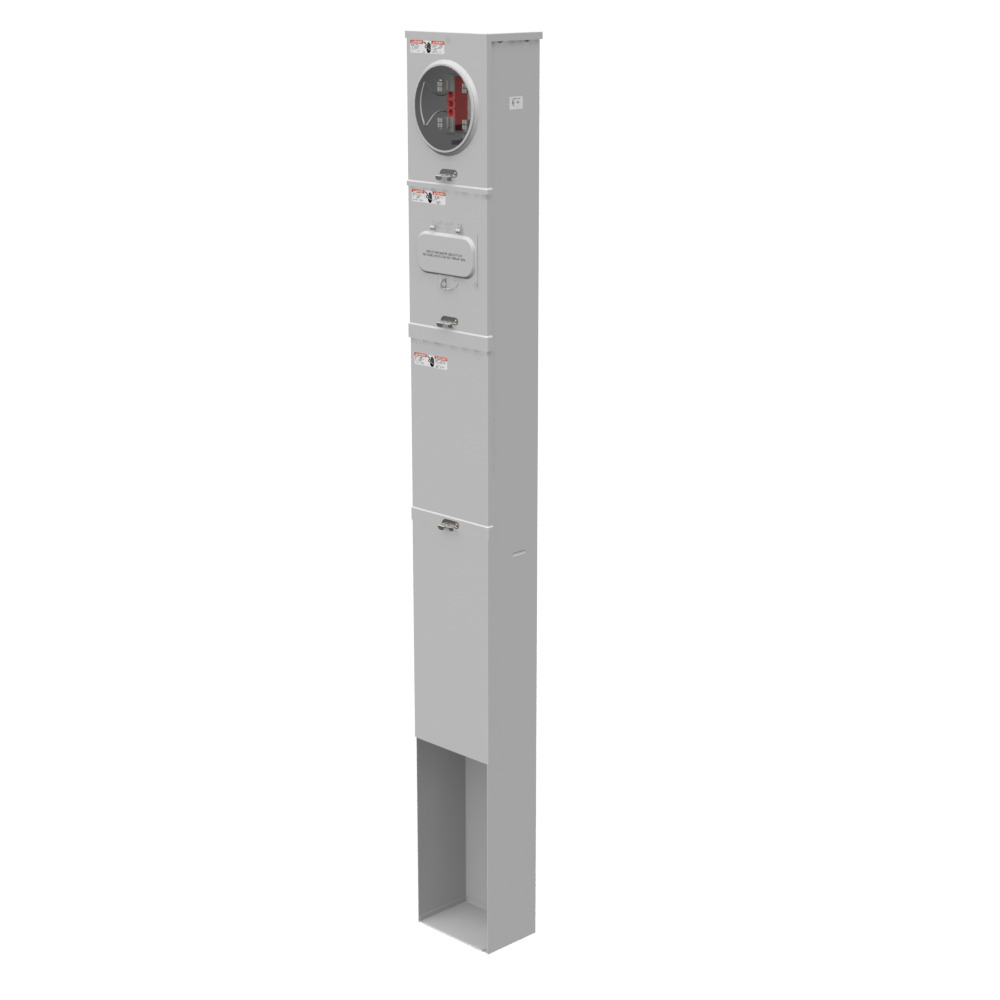

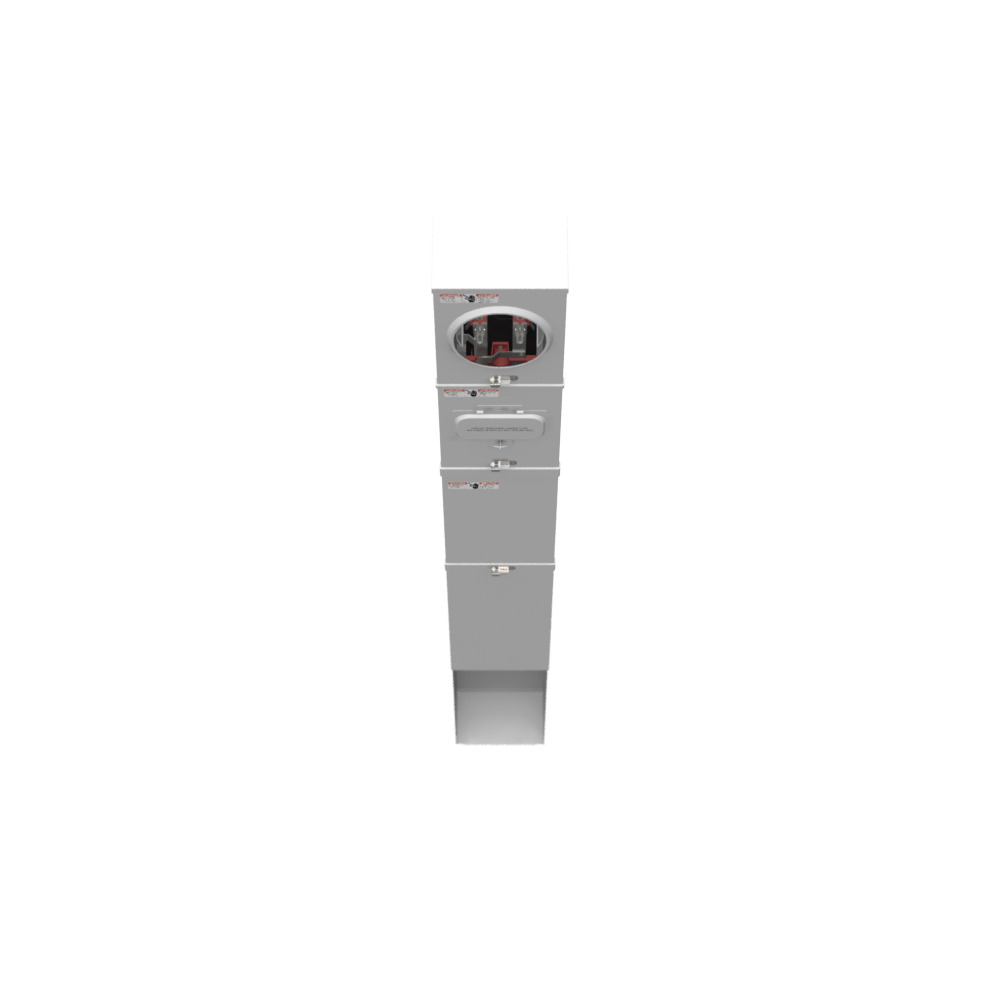

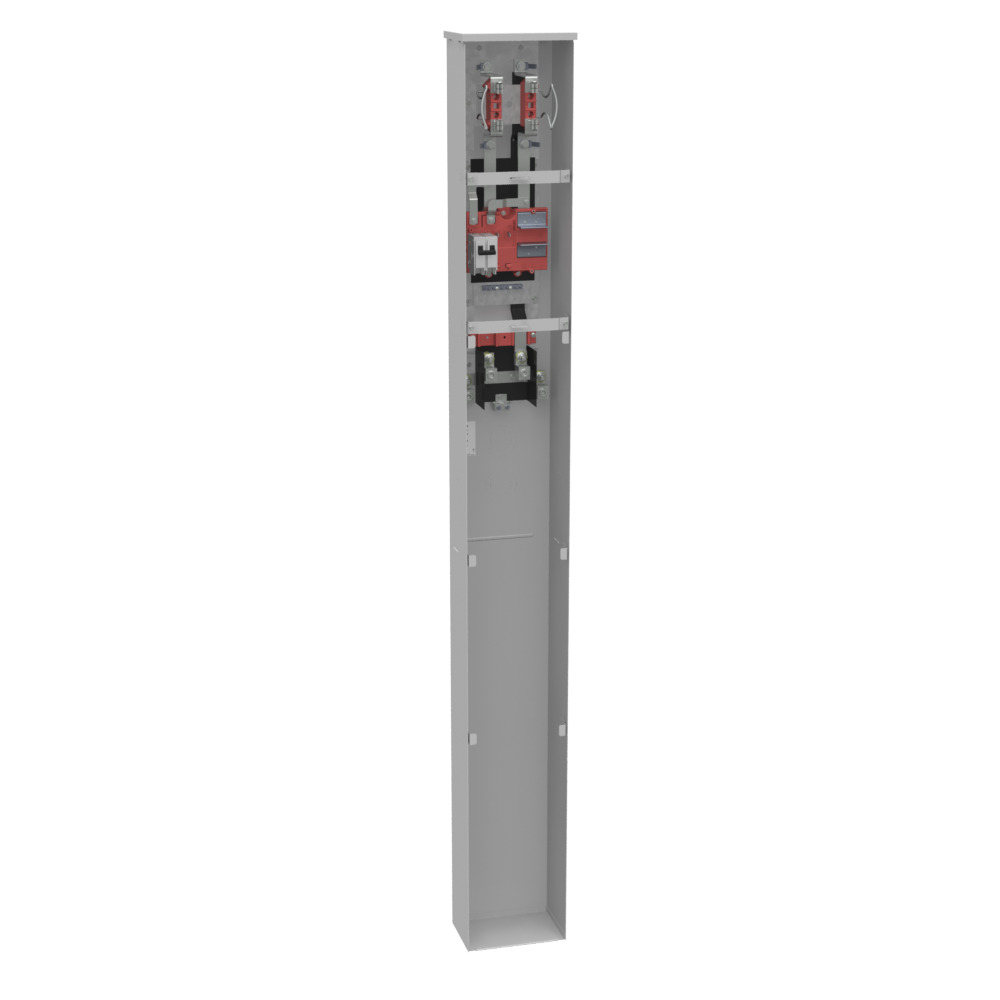

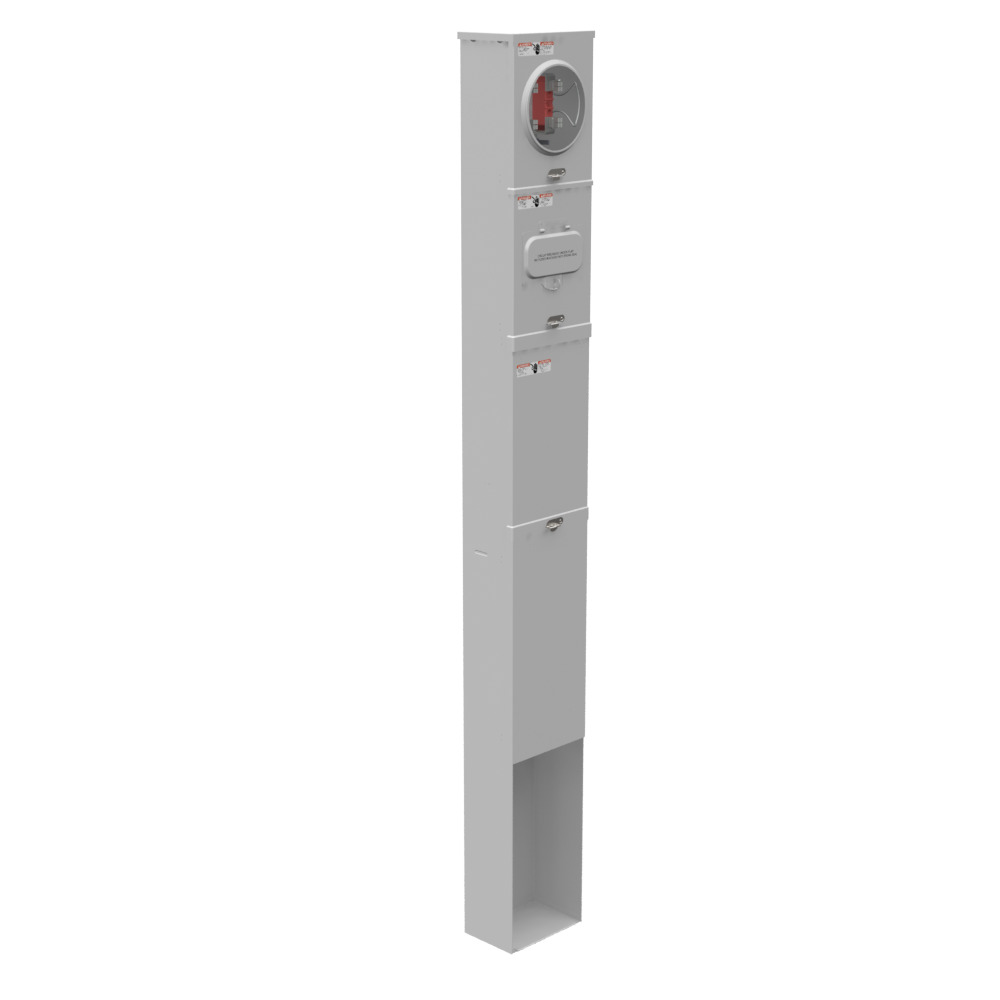

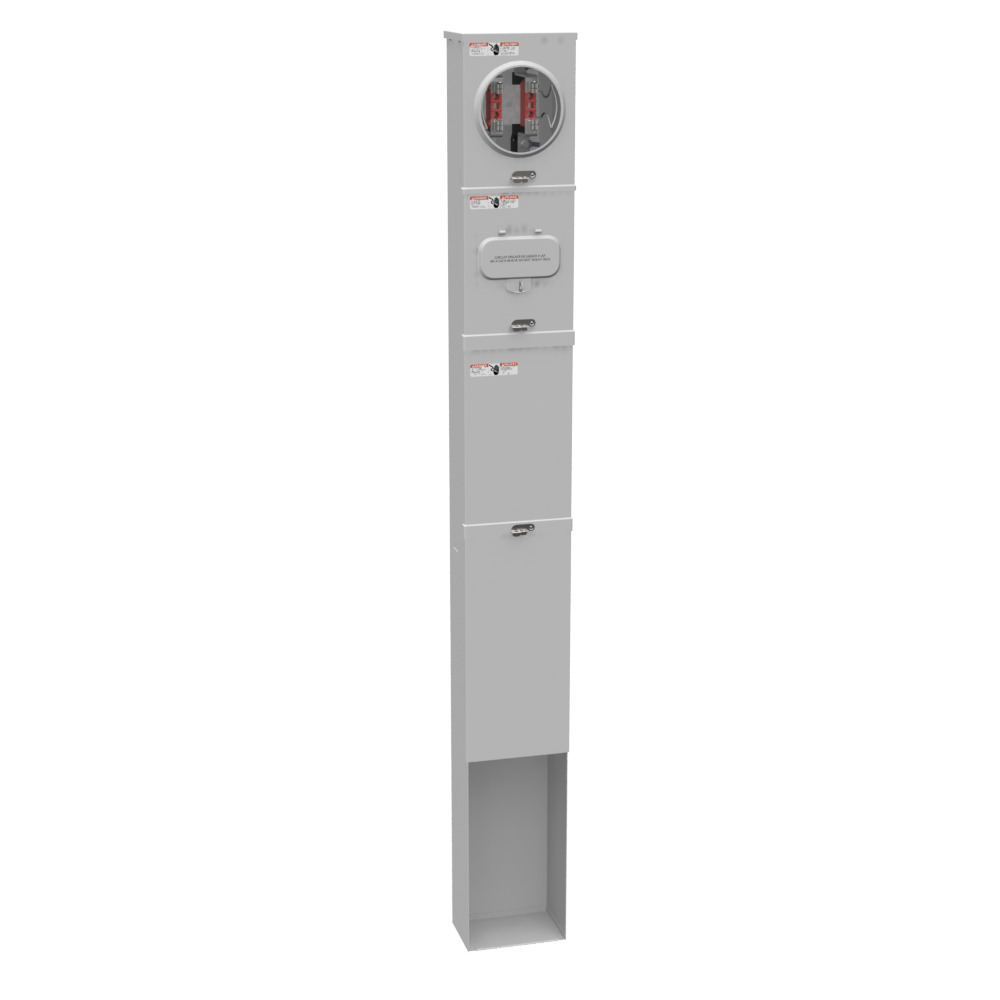

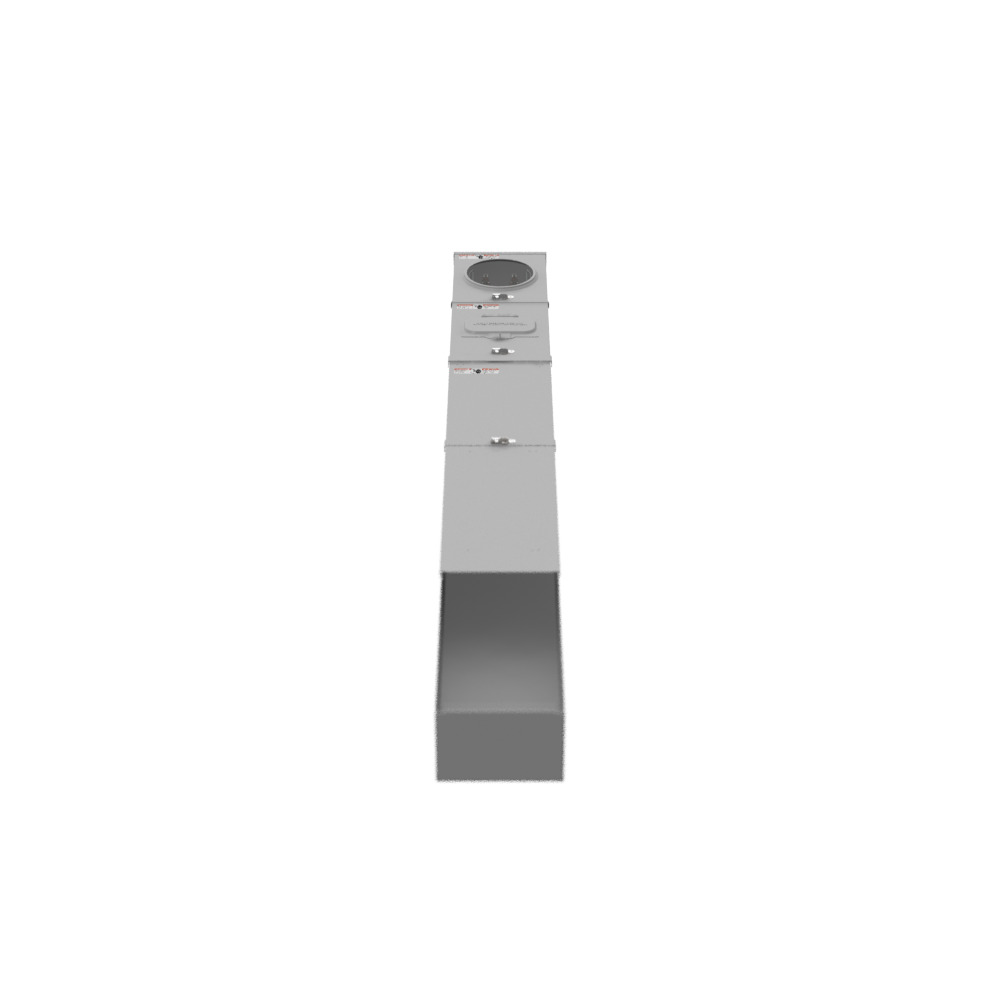

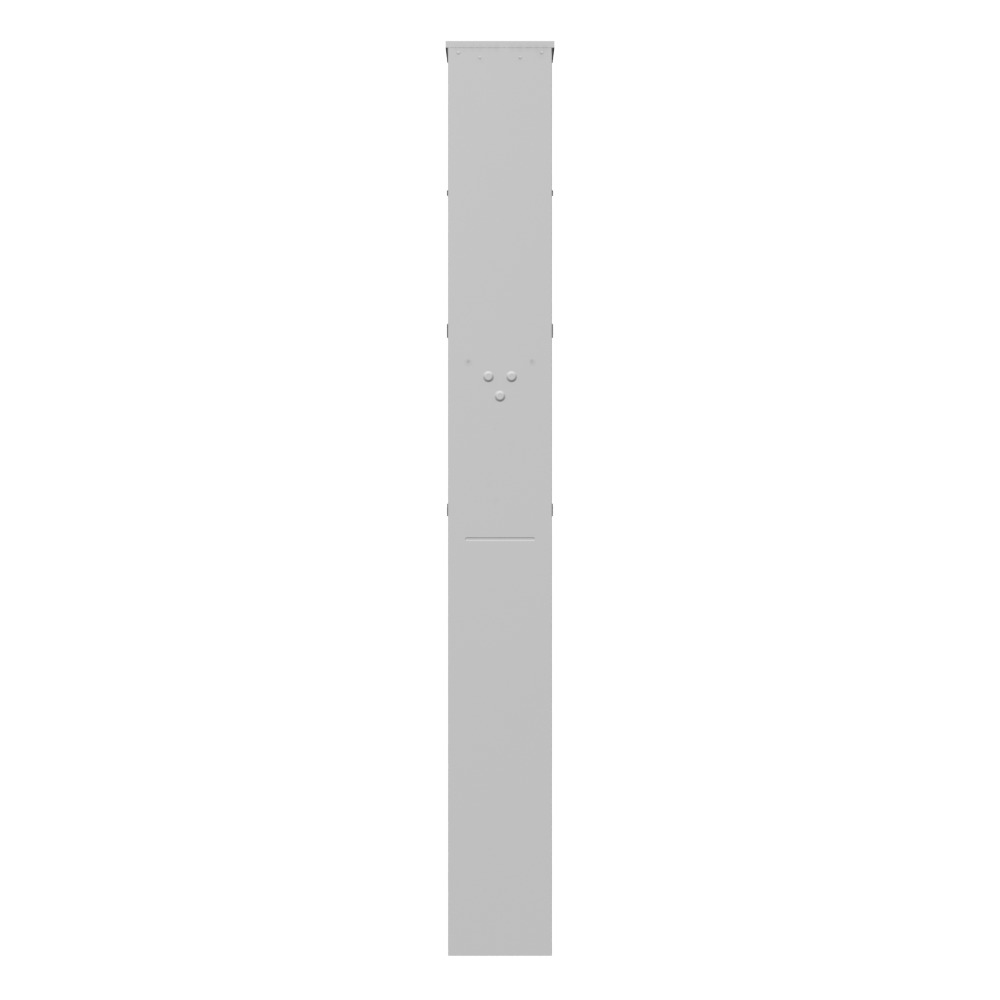

NU8980-O-KK-CECHA 4 Term, Ringless, PlainTop, Horn Bypass, 1-200 Amp, Main Breaker Provision, Single Pedestal Direct Bury, Pedestal Commonwealth Edison Chicago Housing Authority
- MFR:
- Milbank
- MFR #:
- NU8980-O-KK-CECHA
- UPC:
- 784572674134
- Item #:
- 762388
NU8980-O-KK-CECHA 4 Term, Ringless, PlainTop, Horn Bypass, 1-200 Amp, Main Breaker Provision, Single Pedestal Direct Bury, Pedestal Commonwealth Edison Chicago Housing Authority
- MFR #:
- NU8980-O-KK-CECHA
- UPC:
- 784572674134
- Item #:
- 762388
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,248.53
each
4 TERM RNGLS PLAINTOP HRN BYPS 1-200 AMP MN BRKR PROV SGL PED DIR BURY PED COMMONWEALTH EDISON CHICAGO HOUSING AUTHORITY
| Catalog Number | NU8980-O-KK-CECHA |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Load Center |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Commonwealth Edison Chicago Housing Authority |
| Standard | UL Listed;Type 3R |
| UPC | 784572674134 |
| GTIN | 00784572674134 |
| Item Type | Ringless Meter Socket |
| Length | 6 |
| Length UOM | Inch |
| Width | 9 |
| Width UOM | Inch |
| Height | 79 |
| Height UOM | Inch |
| Size | 6L x 9W x 79H |
| Terminals | Single Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
