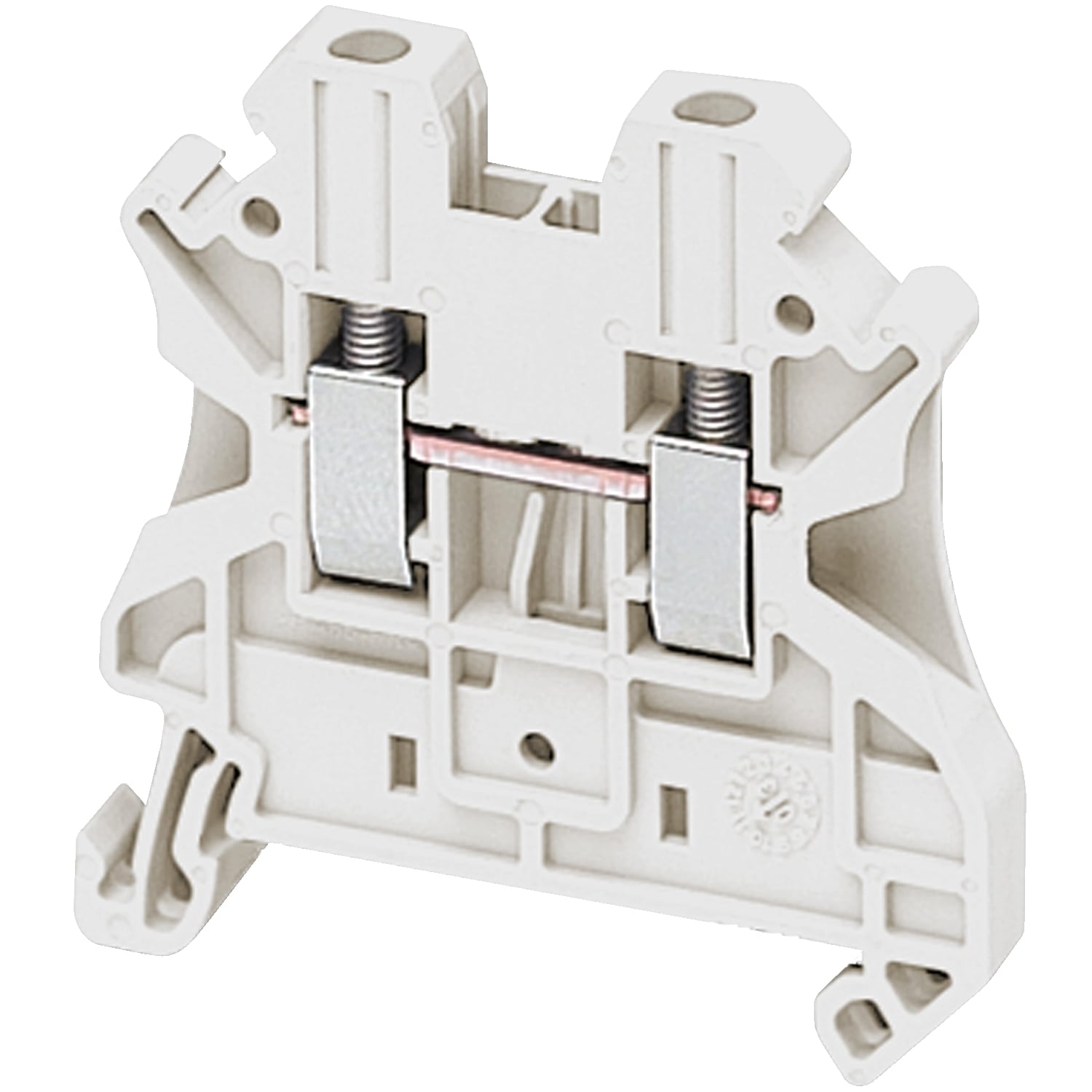

NSYTRV22WH Linergy 1-Level 2-Terminal Feed-Thru Terminal Block, 1 kV, 24 A, 26 to 12 AWG Solid/Stranded Wire, 1 Poles, DIN Rail Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV22WH
- Item #:
- 760740
NSYTRV22WH Linergy 1-Level 2-Terminal Feed-Thru Terminal Block, 1 kV, 24 A, 26 to 12 AWG Solid/Stranded Wire, 1 Poles, DIN Rail Mount
- MFR #:
- NSYTRV22WH
- Item #:
- 760740
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.38
each
SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MM , WHITE
Manuals and Documentation
| Catalog Number | NSYTRV22WH |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Color | White |
| Connection | 1 x screw terminal upstream M3);1 x screw terminal downstream M3) |
| Material | Polyamide 6/6: insulating case;copper alloy: connector and screw;copper alloy: commoning link;chromium-nickel steel: spring |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403765476&lang=en-us |
| GTIN | 03606480531835 |
| Item Type | Passthrough;Terminal block;Spacial enclosures |
