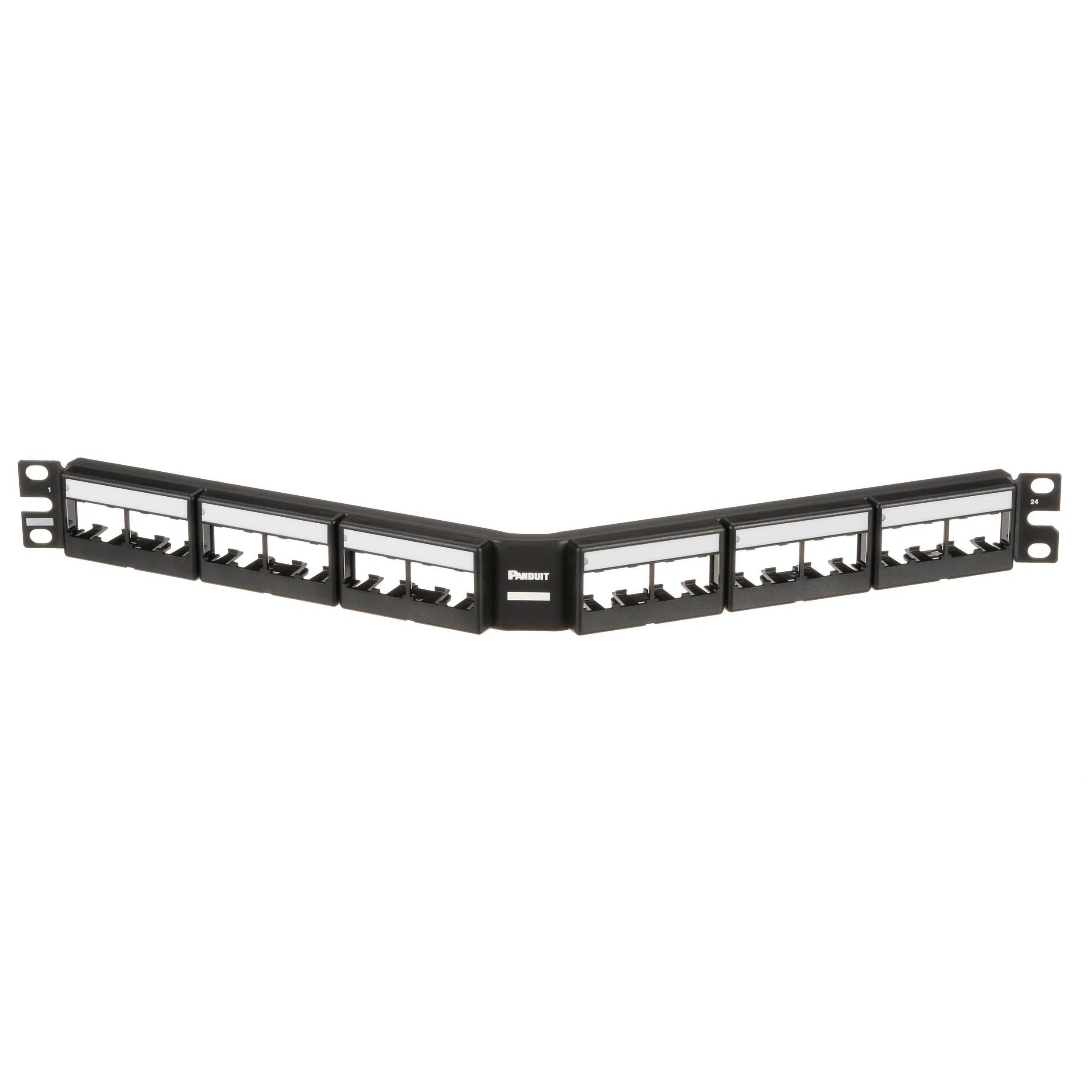

CPPLA24WBLY Mini-Com PanNet 1RU Angled Unloaded Unshielded Front Access Modular Patch Panel, 24 Ports, Cold Rolled Steel
- MFR:
- Panduit
- MFR #:
- CPPLA24WBLY
- UPC:
- 074983036899
- Item #:
- 75970
CPPLA24WBLY Mini-Com PanNet 1RU Angled Unloaded Unshielded Front Access Modular Patch Panel, 24 Ports, Cold Rolled Steel
- MFR #:
- CPPLA24WBLY
- UPC:
- 074983036899
- Item #:
- 75970
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$143.28
each
Modular patch panels shall consist of a metal panel with molded snap-in faceplates which can be front releasable. Patch panels shall accept all Mini-Com® modules for UTP, STP, fiber or A/V applications and shall mount to standard 19 in racks. Patch panels shall be available in 24 and 48-port standard density and 72-port high density. Angled patch panels shall be designed at an optimum angle to help route the cable.
Manuals and Documentation
Features
- Removable faceplate allow front accessibility to installed module for easy moves, adds and changes
- Modular accepts all Panduit® Mini-Com® module to mix and match media types in the same panel
- Recessed design eliminates patch cord interference with cabinet doors and improves bend radius protection
- High density more module per rack space
- Angled design allows cable to flow to each side of the rack and minimizes the need for horizontal cable manager by enabling patch cords to be routed directly into vertical cable manager which leads to increased closet density
- The Mini-Com® faceplate angled modular patch panel accepts up to 24 Mini-Com® module for unshielded application in 1RU and mounts to 19 in and 23 in racks and cabinets
- The panel offers front access, includes label pockets for easy identification and is black
- Removable faceplates allow front accessibility to installed modules for easy moves, adds and changes
- Modular accepts all Panduit® Mini-Com® modules to mix and match media types in the same panel
- Recessed design eliminates patch cord interference with cabinet doors and improves bend radius protection
- High density more modules per rack space
- (6) 4-position faceplate with label slot
| Manufacturer Part Number | CPPLA24WBLY |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983036899 |
| EAN | 0074983036899 |
| Color | Black |
| Material | Cold Rolled Steel |
| Mounting Type | Front |
| Type | 1RU Angled Unloaded Unshielded Front Access |
| Alternative Part Number | 9356447 | 9358550 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | ARRA Compliant | Buy American Act Compliant | RoHS Compliant |
| Application | Multi-Media Applications |
| Includes | (6) 4-Position Black Faceplates with Label Slots, (6) Label Covers, (6) Labels, (4) #12-24 Screws and (4) M6 Screws and Metal Stamping |
| Number Of Ports | 24 |
| Wiring Code | EIA |
