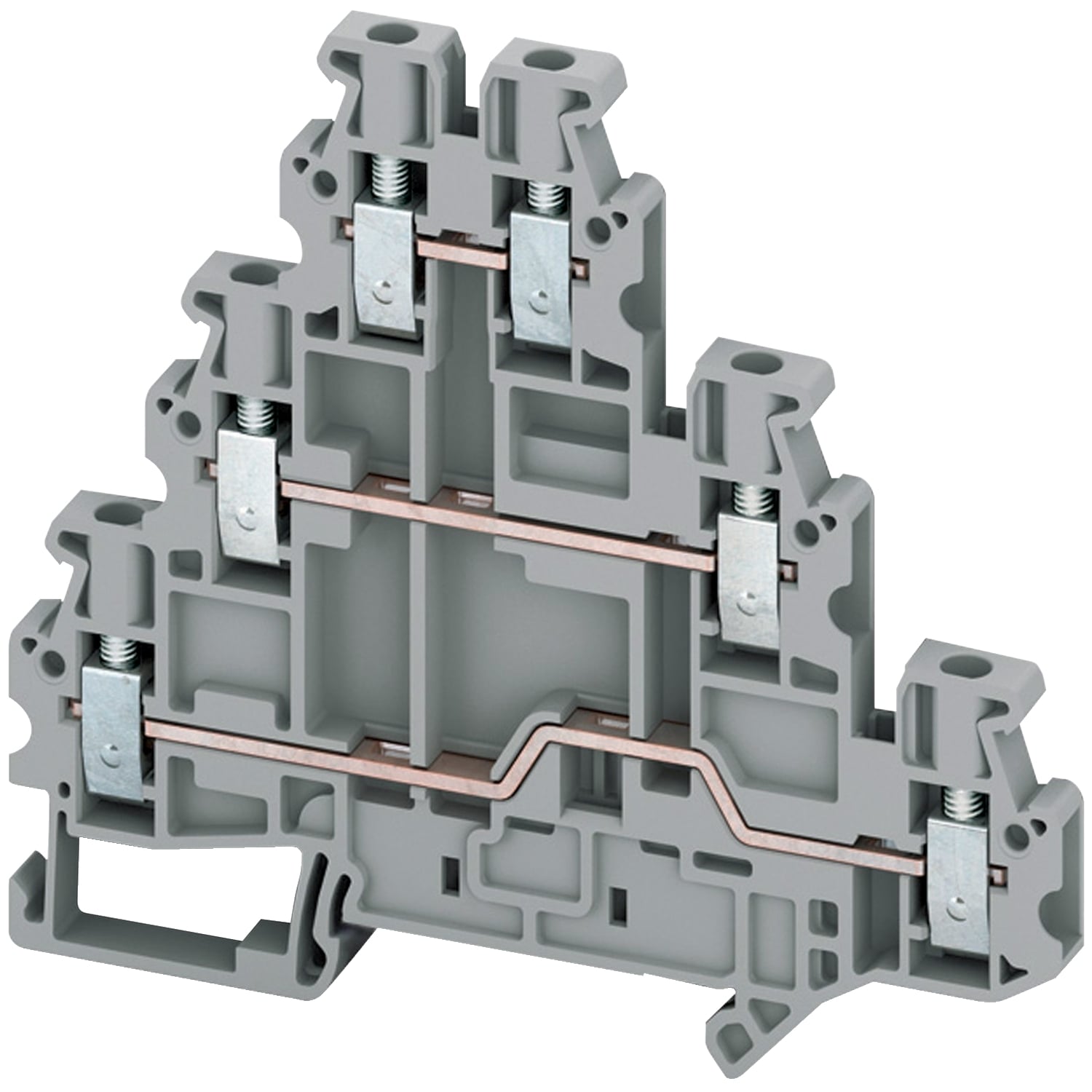

NSYTRV26T Linergy TRV 3-Level 6-Point Pass Through Terminal Block, 600 V AC, 20 A, 26 to 10 AWG Wire, 3 Poles, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV26T
- Item #:
- 75924
NSYTRV26T Linergy TRV 3-Level 6-Point Pass Through Terminal Block, 600 V AC, 20 A, 26 to 10 AWG Wire, 3 Poles, Clip-Fit Mount
- MFR #:
- NSYTRV26T
- Item #:
- 75924
Availability
| Location | Available Qty |
|---|---|
| Available | 5 ea |
$14.65
each
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm nominal cross section. The rated operational voltage is 500V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1. It has grey surface treatment. Mounting by clip-on and sideways connection by three-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC).
Manuals and Documentation
| Catalog Number | NSYTRV26T |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Poland |
| Made in USA | No |
| Color | Gray |
| Connection | 1 x screw terminal upstream M3);1 x screw terminal downstream M3) |
| Material | Polyamide 6/6: insulating case;copper alloy: connector and screw;copper alloy: commoning link;chromium-nickel steel: spring |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761878&lang=en-us |
| GTIN | 03606480531880 |
| Item Type | Passthrough;Terminal block;Spacial enclosures |
