Telemecanique

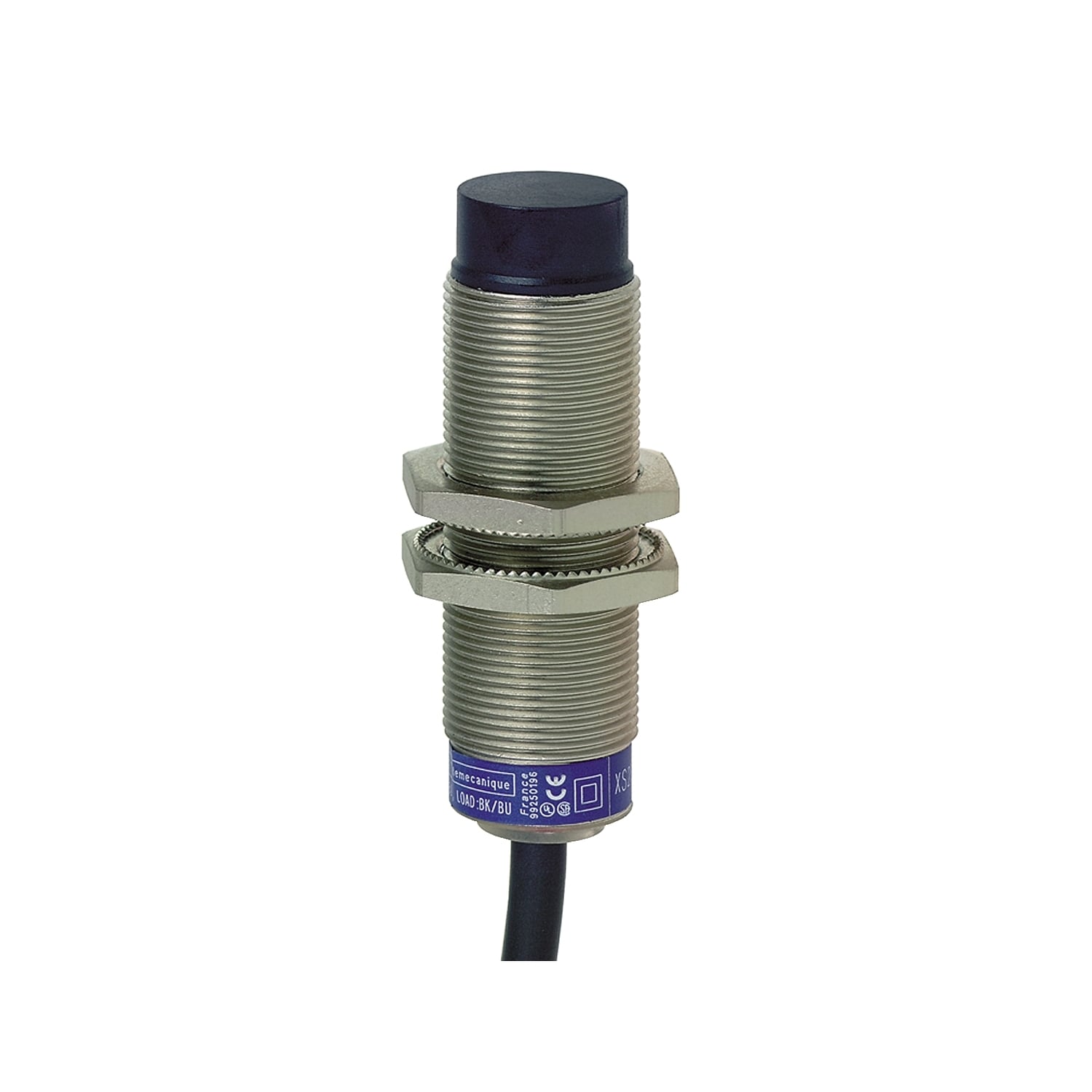

XS618B4MBL2 OsiSense XS6 Series Cylindrical Fixed Form Proximity Sensor, Inductive, Discrete Output, 1NC Contact, 24 to 240 V AC/DC

MFR:
Telemecanique Sensors
MFR #:
XS618B4MBL2
UPC:
785901926801
Item #:
759084

Availability

Location Available Qty
Available Available to Order
$99.35 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, long case, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a nickel plated brass case and a 2m long PvR cable. It has a sensing distance of 12mm. Two-wire, AC or DC supply, 24V to 240V, NC function.

Manuals and Documentation
Catalog Number XS618B4MBL2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin China
Made in USA No
Application -
Connector Cable
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range > 0.31...0.59 in (> 8...15 mm)
Sensor 60 MM,INDUCTIVE PROXIMITY SENSOR
Special Features METAL
Standard IP68 double insulation conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 24...240 V AC/DC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869856&lang=en-us
UPC 785901926801
GTIN 03389119014380
Item Type Inductive proximity sensor;Cylindrical M18
Operating Temperature -25-70 A Degrees C
