Square D

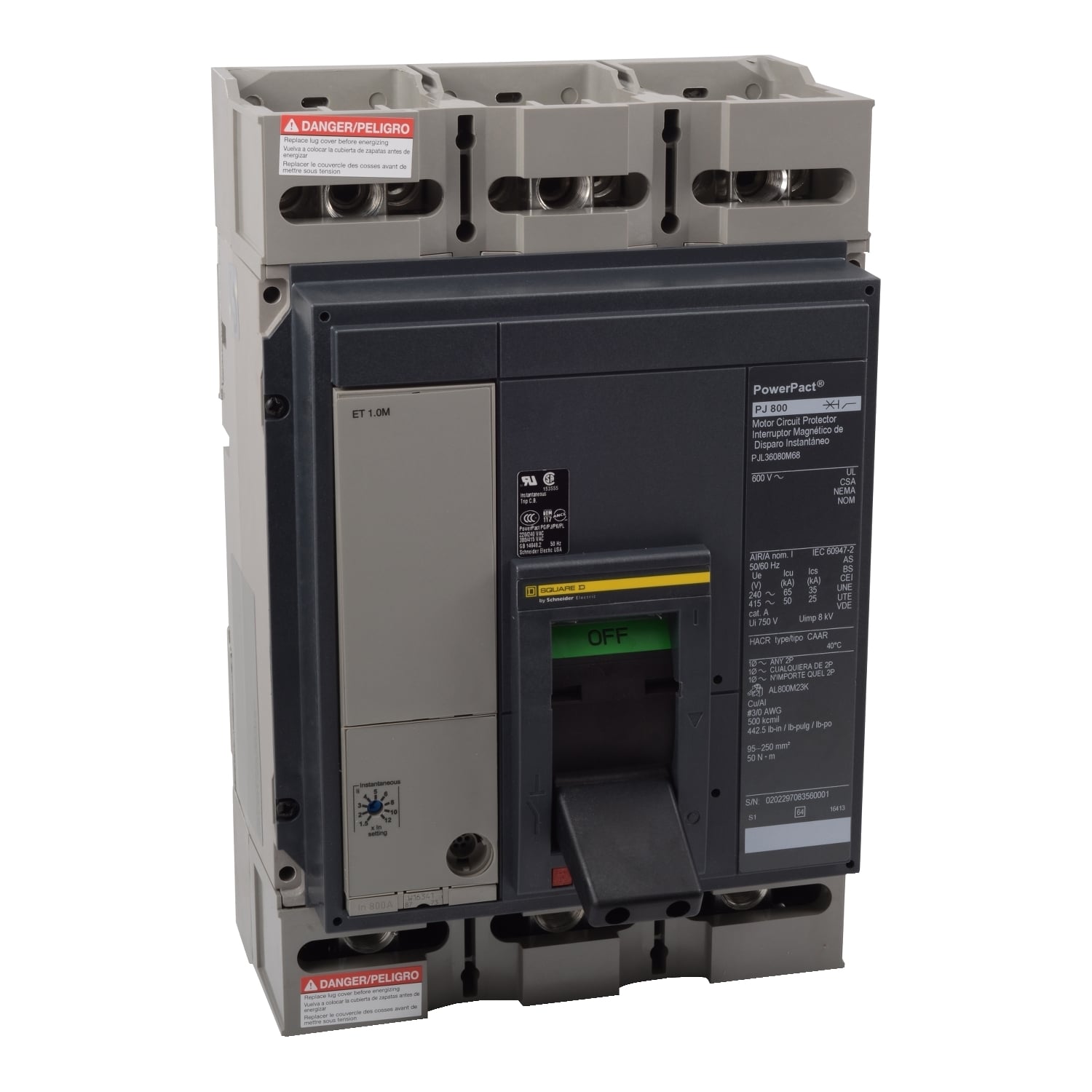

PJL36080M68 Motor Circuit Breaker, 800 Amp, 3 Pole, 600V

MFR:
Schneider Electric
MFR #:
PJL36080M68
UPC:
785901657996
Item #:
75620

Availability

Location Available Qty
Available Available to Order
$10,754.25 each

PowerPacT P-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the equivalent PowerPacT P circuit breaker. This unit has lugs on both the line and the load side This PowerPacT P, 800A, 3 pole, motor protector has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P motor circuit protectors comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number PJL36080M68
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Distribution
Connection Lugs, line;lugs, load; 3 x AWG 3/0...500 kcmil aluminium/copper
Control Toggle
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432815&lang=en-us
UPC 785901657996
GTIN 00785901657996
Item Type Motor Circuit Protector
Width 8.27
Width UOM Inch
Height 12.86
Height UOM Inch
Depth 8.05 IN
Trip Type Electronic, basic, ET 1.0, I
