Elastimold

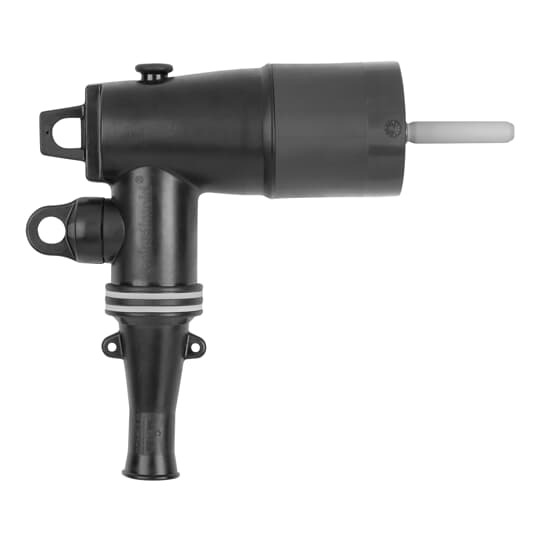

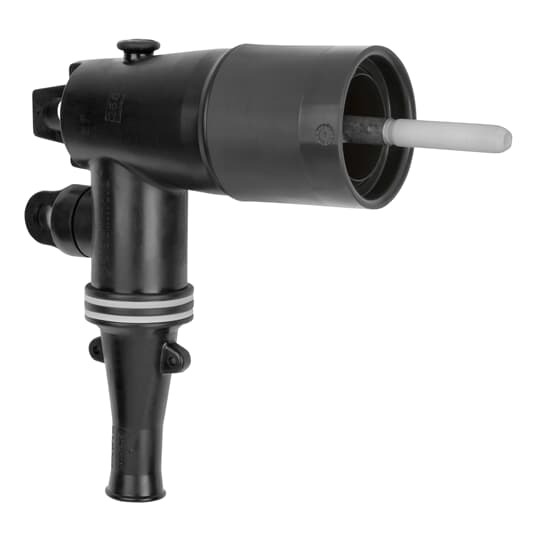

262LR-C5240-S Elastimold Loadbreak Elbow Connector, 28 kV, 200 A, 1/0 AWG, 2/0 AWG Conductor, 0.805 to 1.06 in Dia Insulation, EPDM Rubber

MFR:
ABB - Installation Products
MFR #:
262LR-C5240-S
UPC:
075114192132
Item #:
752617

Availability

Location Available Qty
Available Available to Order
$227.13 each
Manuals and Documentation
Catalog Number 262LR-C5240-S
Manufacturer ABB - Installation Products
Brand Elastimold
Country of Origin United States
Made in USA Yes
Amperage Rating 200
Application 200 kV, 200 Amp
Color Black
Conductor Range 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
Insulation Yes, EPDM Rubber
Material Housing - EPDM Rubber
Special Features 28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point
Standard ANSI/IEEE Standard 386
UPC 075114192132
GTIN 00075114192132
Item Type Loadbreak Elbow Connector with Test Point
Size 9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter
Environmental Conditions All Weather Conditions
Temperature Rating -40 to +65 C
Voltage Rating 28 kV
