SQUARE D

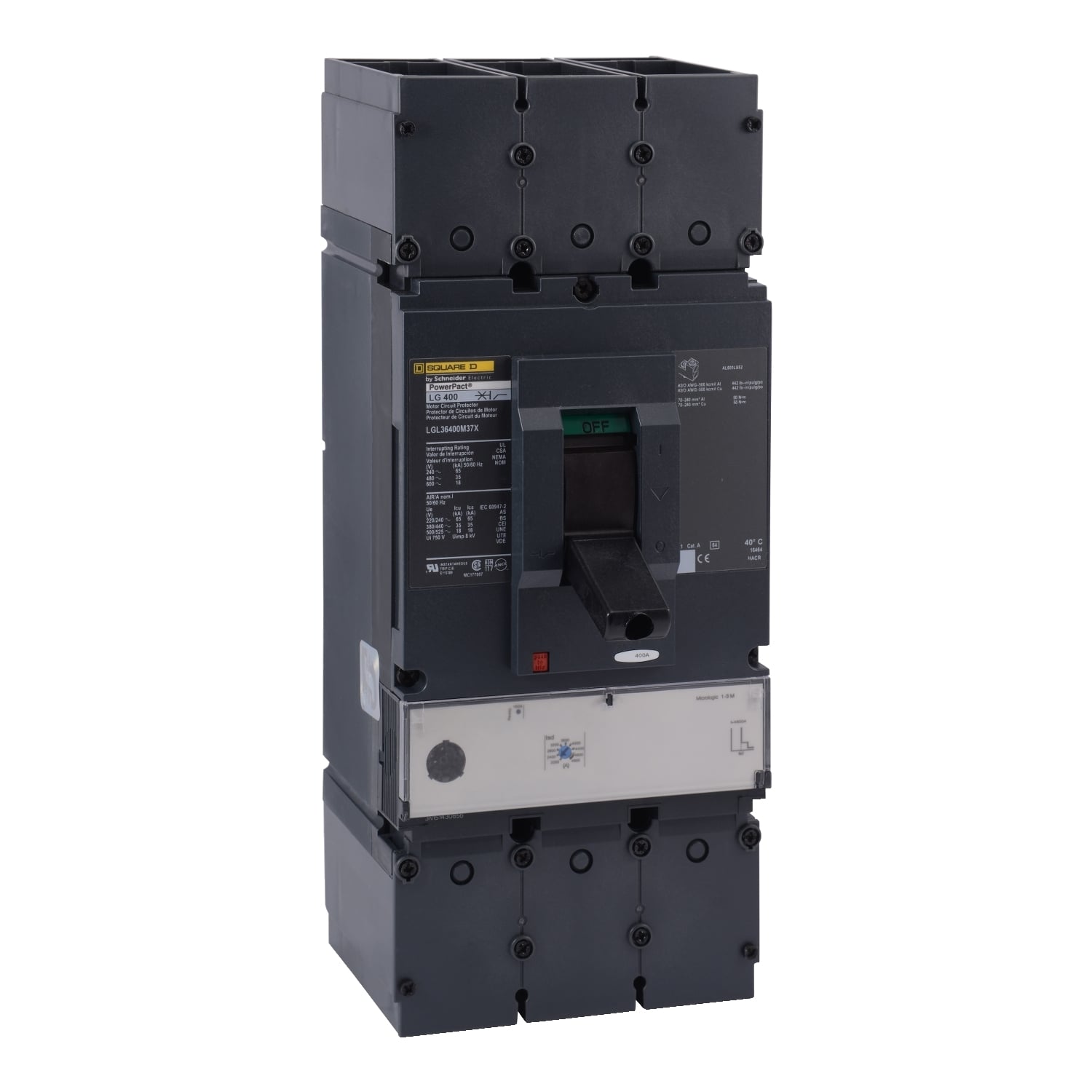

LGL37060D33 Power Pact Circuit Breaker, 500 V DC, 600 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250 V DC/20 kA at 500 V DC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
LGL37060D33
UPC:
785901942894
Item #:
751291

Availability

Location Available Qty
Available Available to Order
$9,570.00 each

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 20kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number LGL37060D33
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Color Black
Connection Lugs, line;lugs, load; 2 x AWG 2/0...500 kcmil aluminium/copper
Control Toggle
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431809483&lang=en-us
UPC 785901942894
GTIN 00785901942894
