Square D

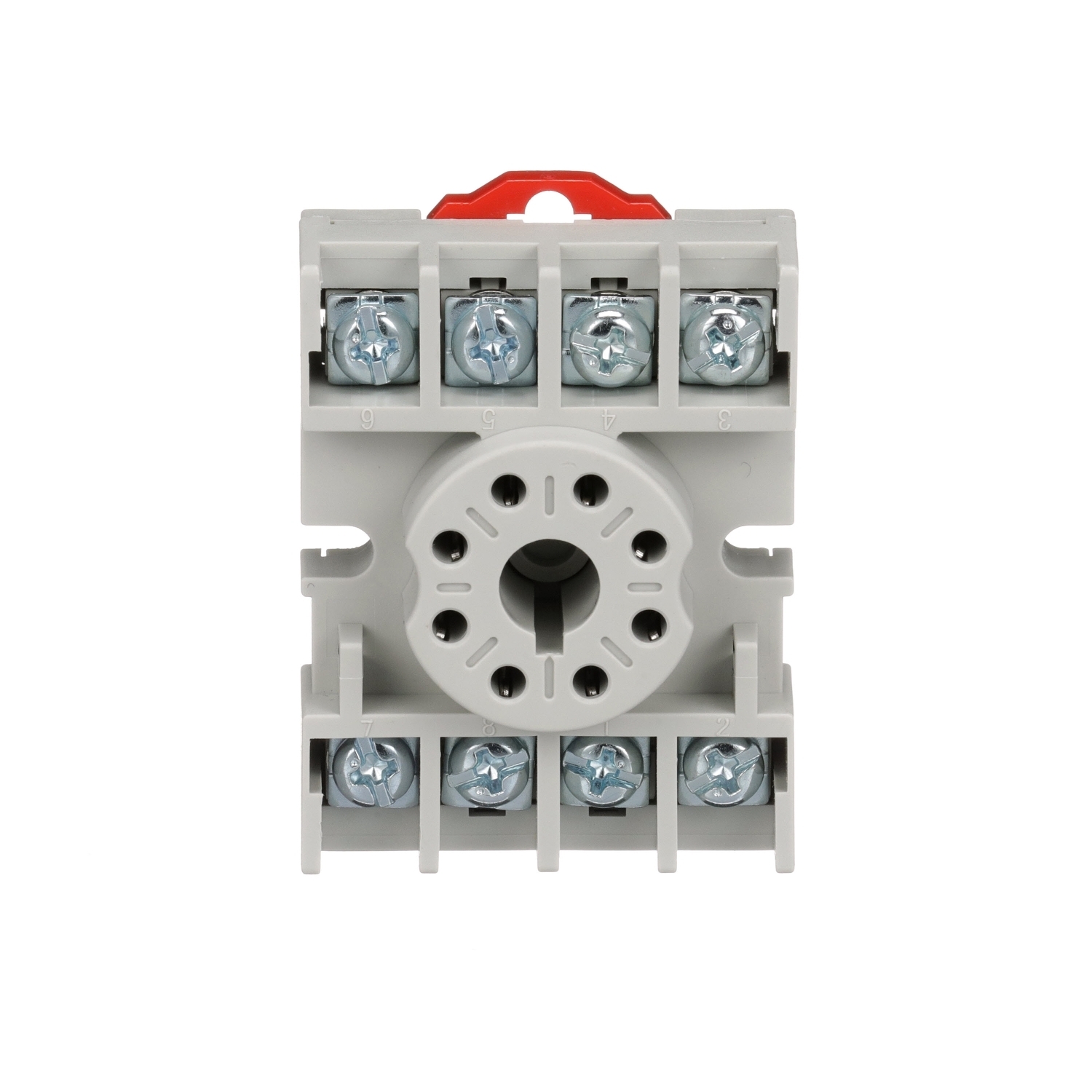

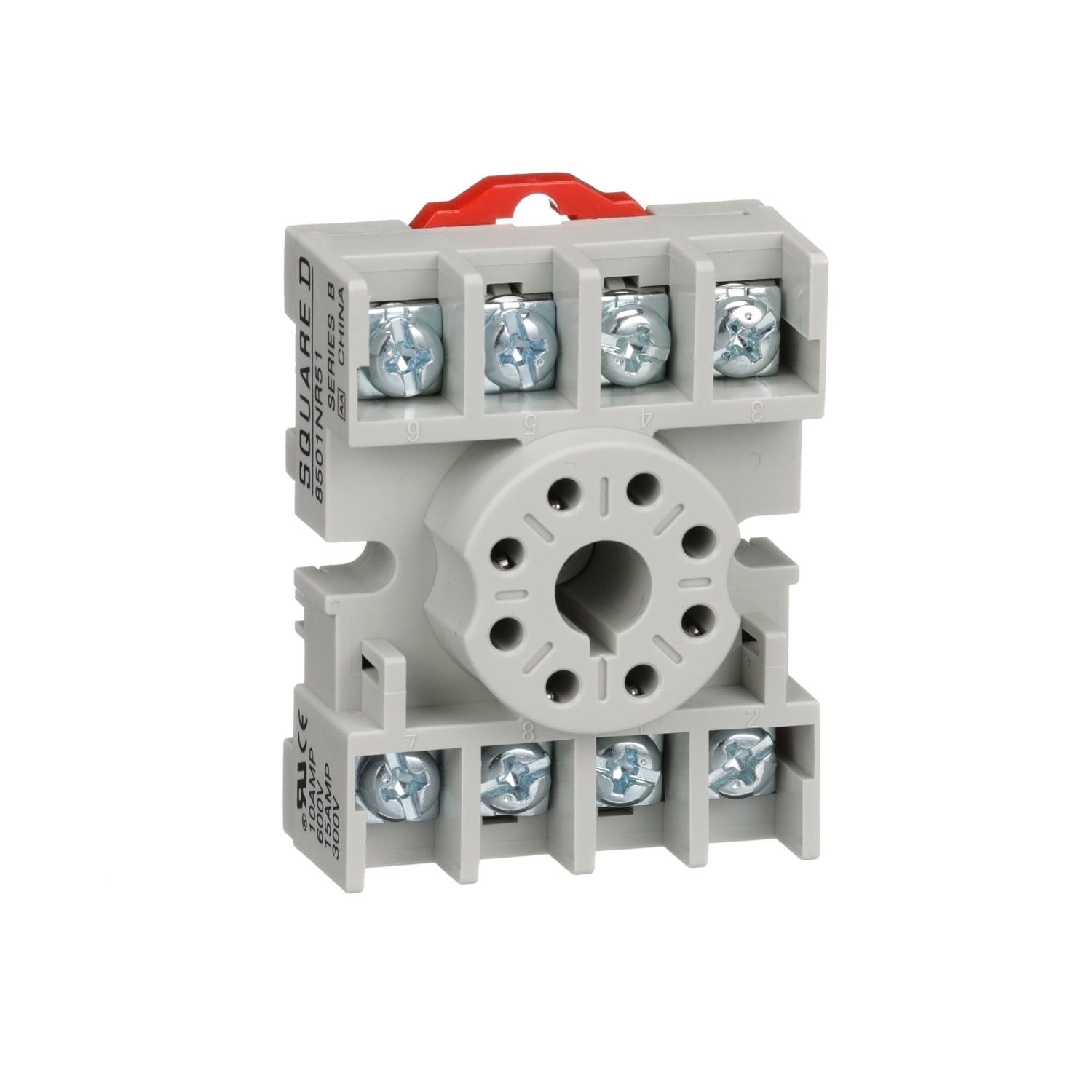

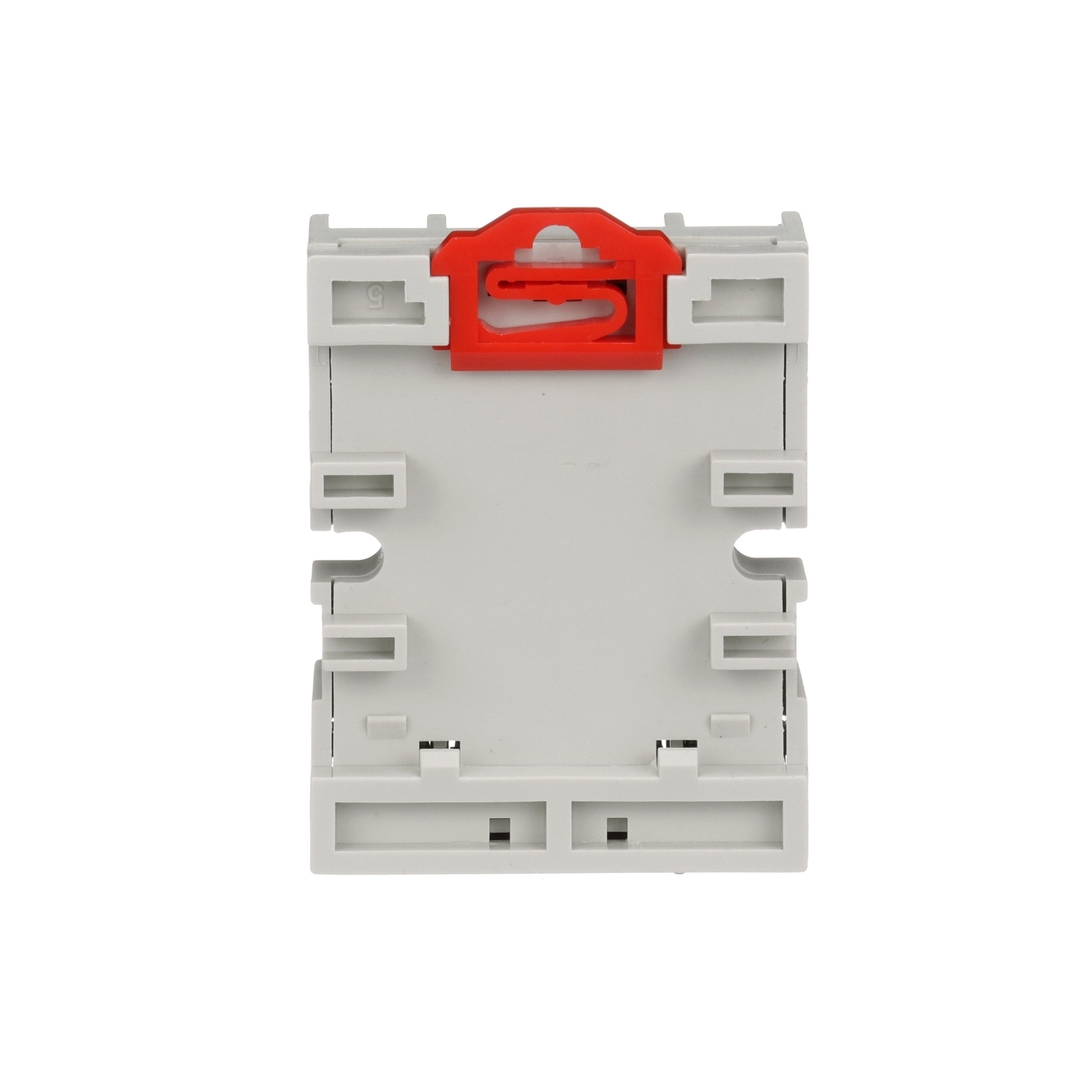

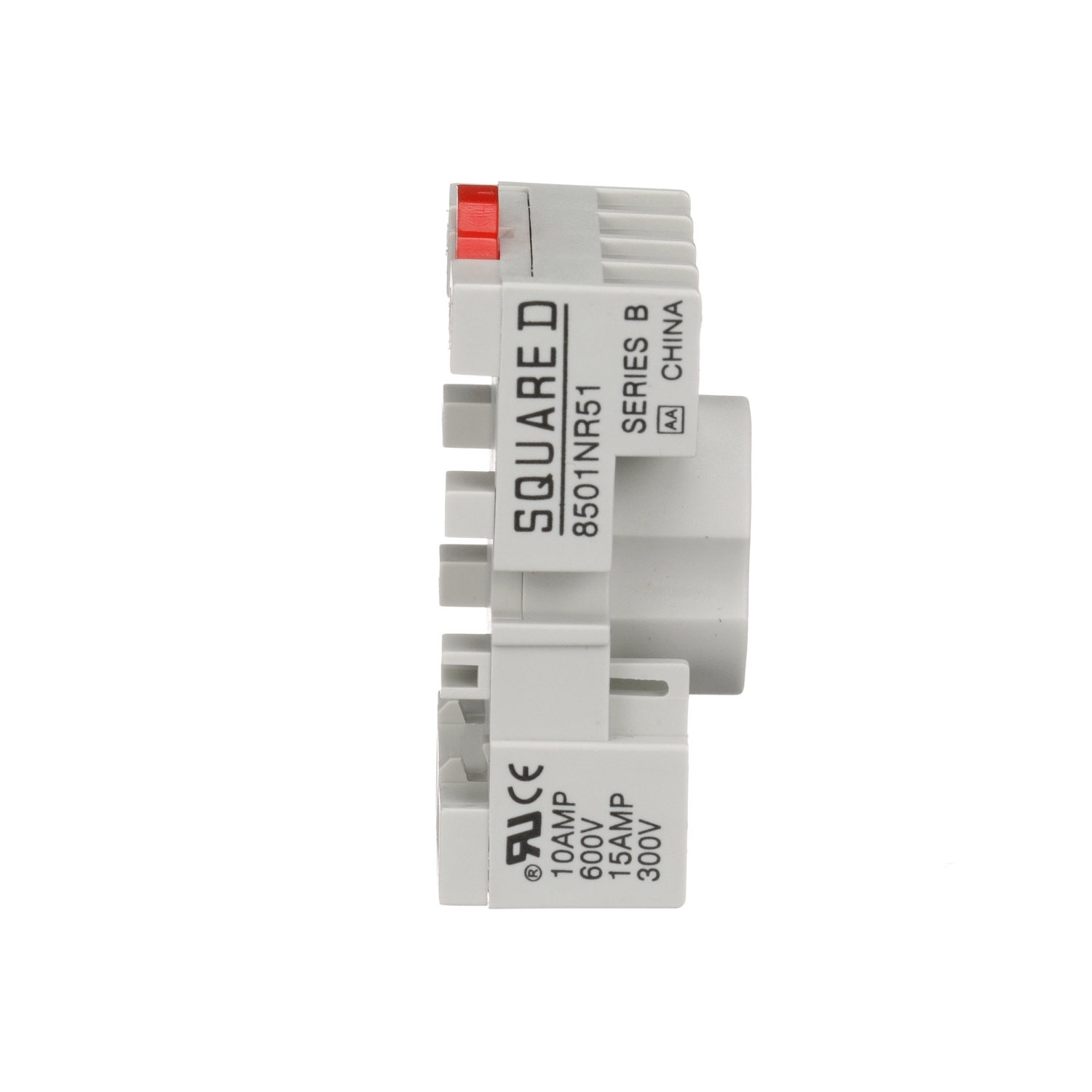

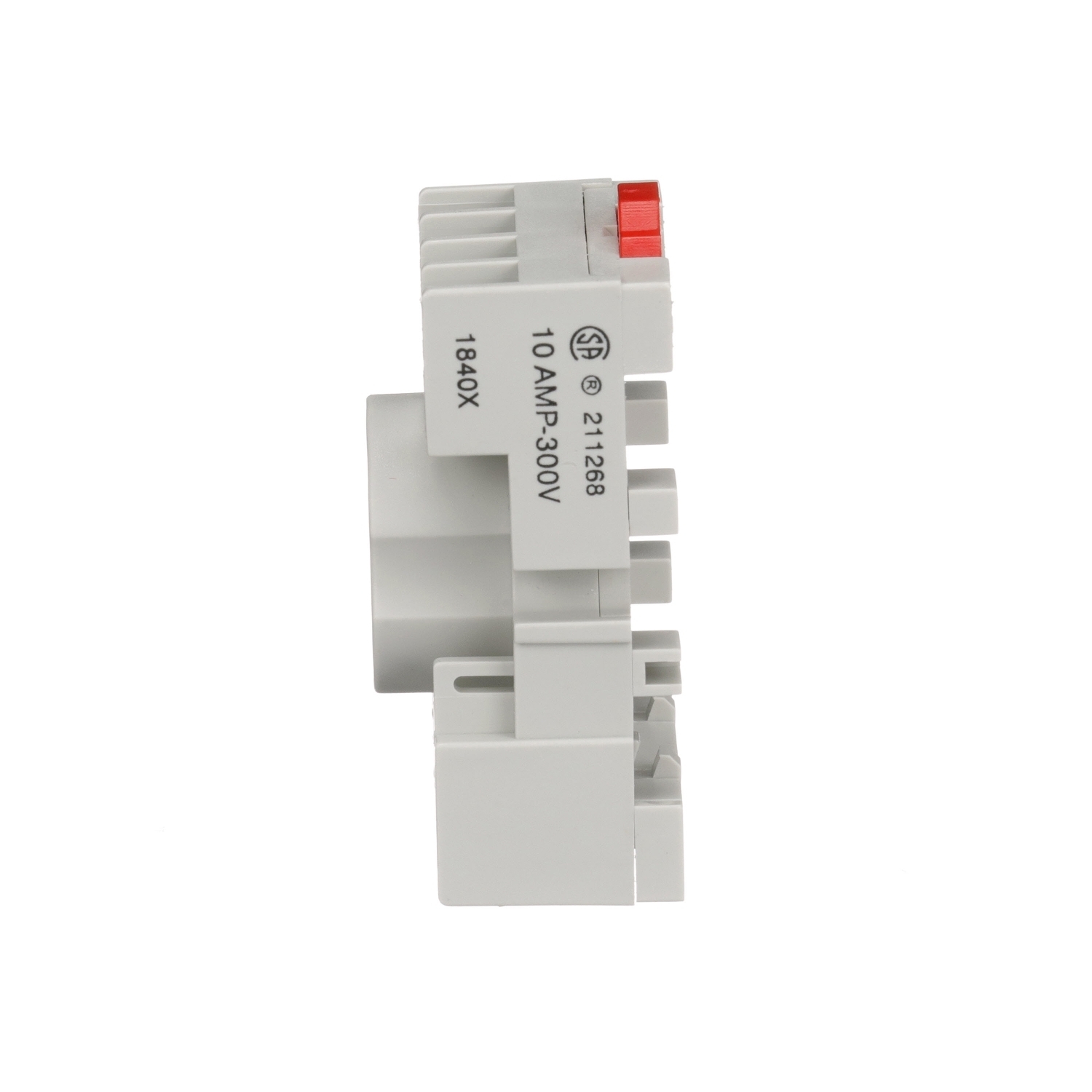

8501NR51B 8501N Type K Plug-In Relay Socket, 300/600 V AC, 10 to 15 A, For Use With Class 8501 Series Miniature Plug-In Relay, 8 Pin

MFR:
Schneider Electric
MFR #:
8501NR51B
UPC:
785901006046
Item #:
75008

Availability

Location Available Qty
Available 36 ea
$20.30 each

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.

Manuals and Documentation
Catalog Number 8501NR51B
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin China
Made in USA No
Mounting Din Rail
Special Features Set of 10
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=367295&lang=en-us
UPC 785901006046
GTIN 00785901006046
Width 1.57480
Width UOM Inch
Height 2.12600
Height UOM Inch
Depth 0.96850 IN
